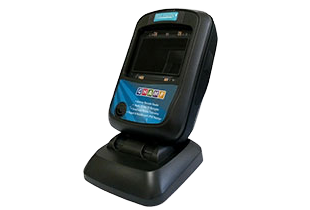

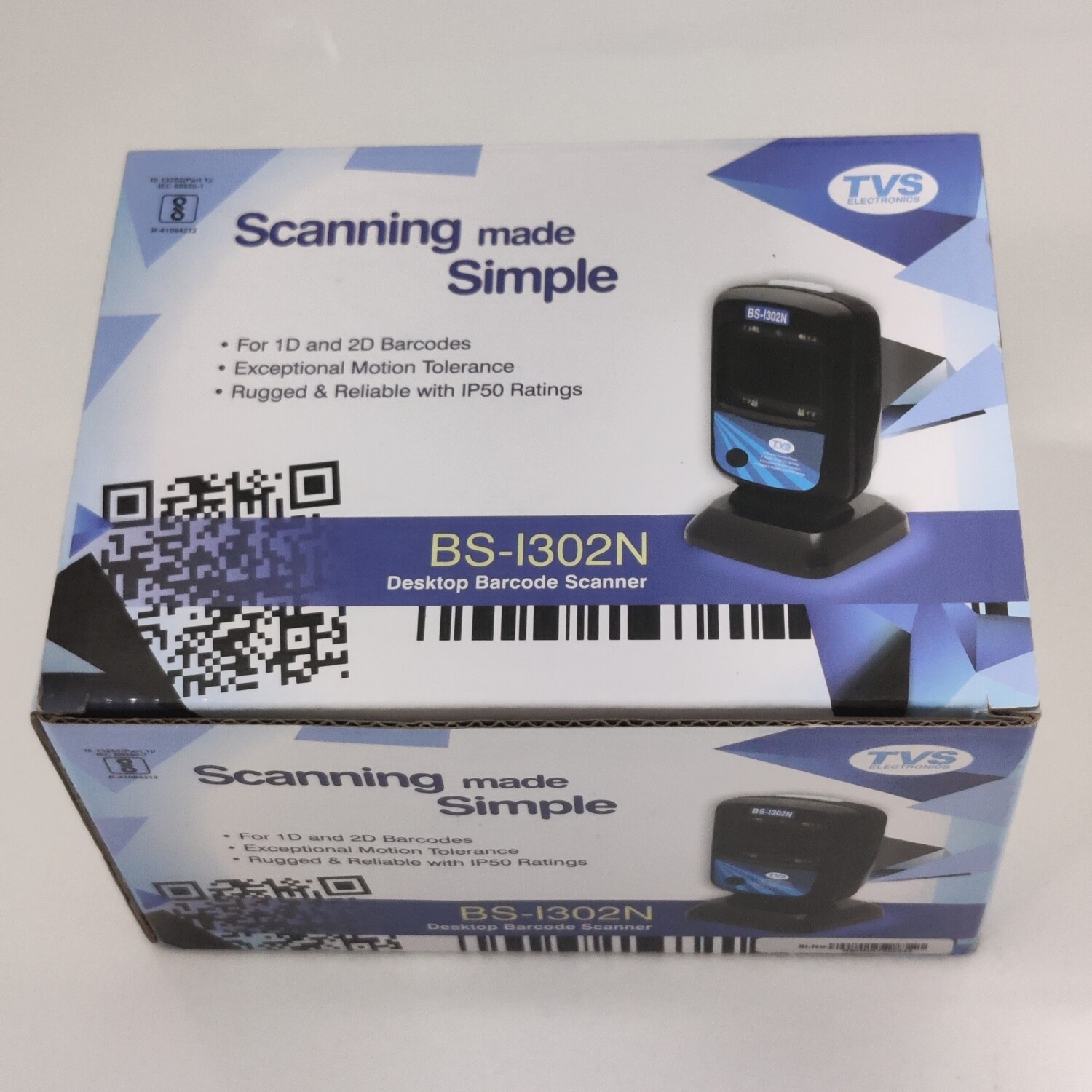

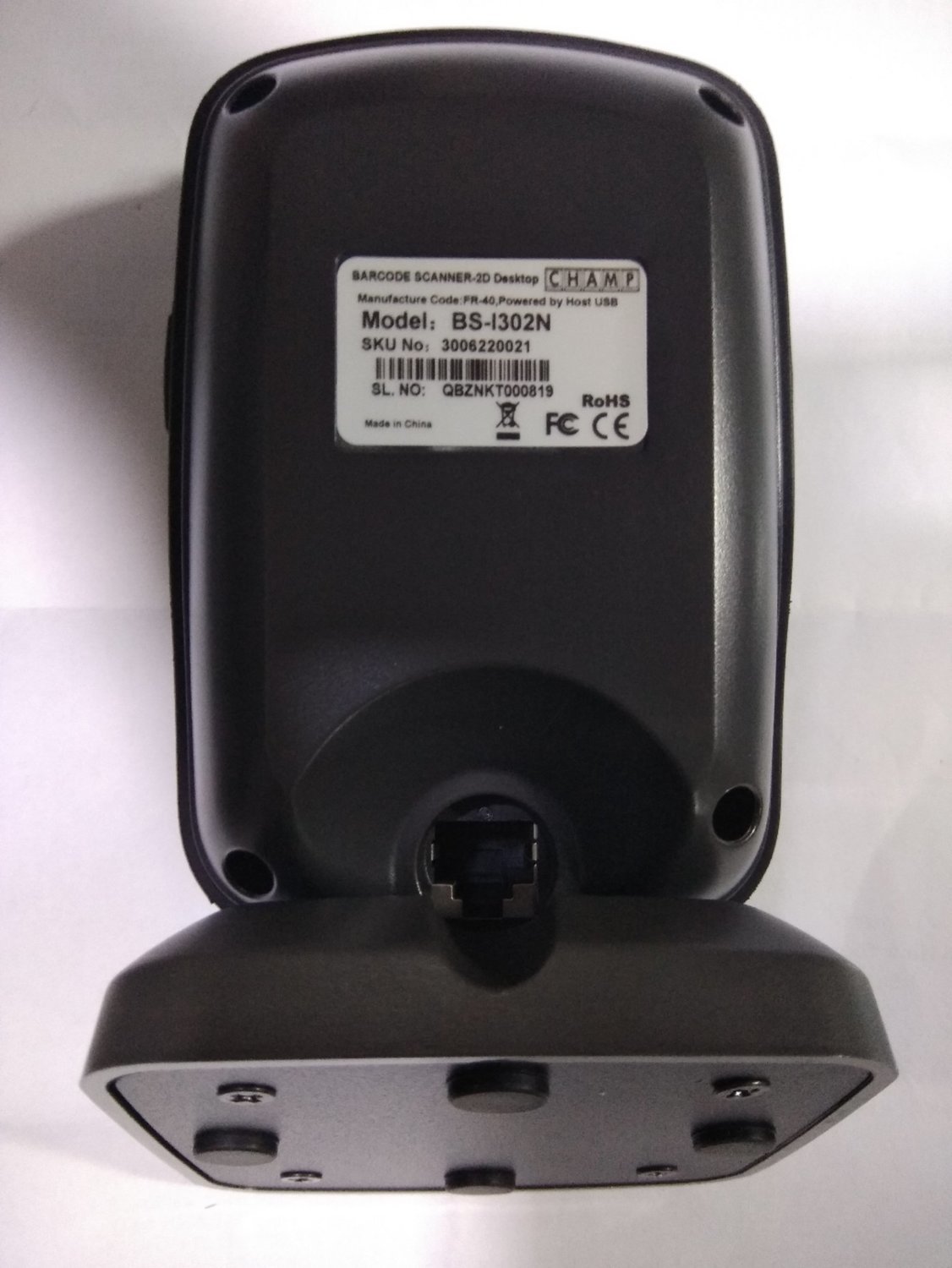

TVS Champ BSI302N Barcode Scanner

Call or WhatsApp us if you have any questions.

UPC: 00003006220021

Brand: TVS

Product: New

Generic Name: Scanner

Model no.: BSI302N

Warranty: 1 Year Manufacturer

Volumetric Weight: 0.50 kg

Features

VSE BSI302N SCANNER USAGE

Hands Free Barcode reading for Retail Application
Production Line
Laboratories

TVSE BSI302N SCANNER ADVANTAGE

Best Motion capture,
Best in class Frames /Sec rating,
Easy to switch Auto Trigger and Manual mode
SPECIFICATIONS
Performance

Image Sensor

752*480 CMOS

Symbologies

2D1D

PDF417, QR Code, Data Matrix,Chinese Sensible CodeEAN13, EAN8, UPCA, UPCE, ISSN, ISBN, Codabar Code 128,Code 93, ITF6, ITF14, Interleaved 2 of 5 Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Gs1 Databar, Code 39, Code 11, MSIPlessy, Plessy, etc.

Resolution

= 5mil
Typical Depth of Feild

Code 39

EAN13

QR Code

40 200mm20mil

5 180mm13mil

10 180mm20mil

Motion Tolerance

2.5 m/s

Scan Angle

Pitch

Roll

Skew

±60* @0* Roll and 0* Skew

±360* @0* Roll and 0* Skew

±50* @0* Roll and 0* Pitch

Symbol Contrast

=25%

Interface

USB

Physical/Electric

Dimension LxWxH

83 x 81 x 128mm

Weight

29g

Notification

Beep, LED indicator

Current

Operating

Standby

150mA

120mA

Environmental

Operating Temperature

20*C ~ 50*C

Storage Temperature

40*C ~ 70*C

Humidity

5% ~ 95% Non Condesing

ESD

±14kv air discharge,±18kv direct discharge

Drop

1.2m drop to concrete fr six side, one drop per side

Sealing

IP50

Accessories

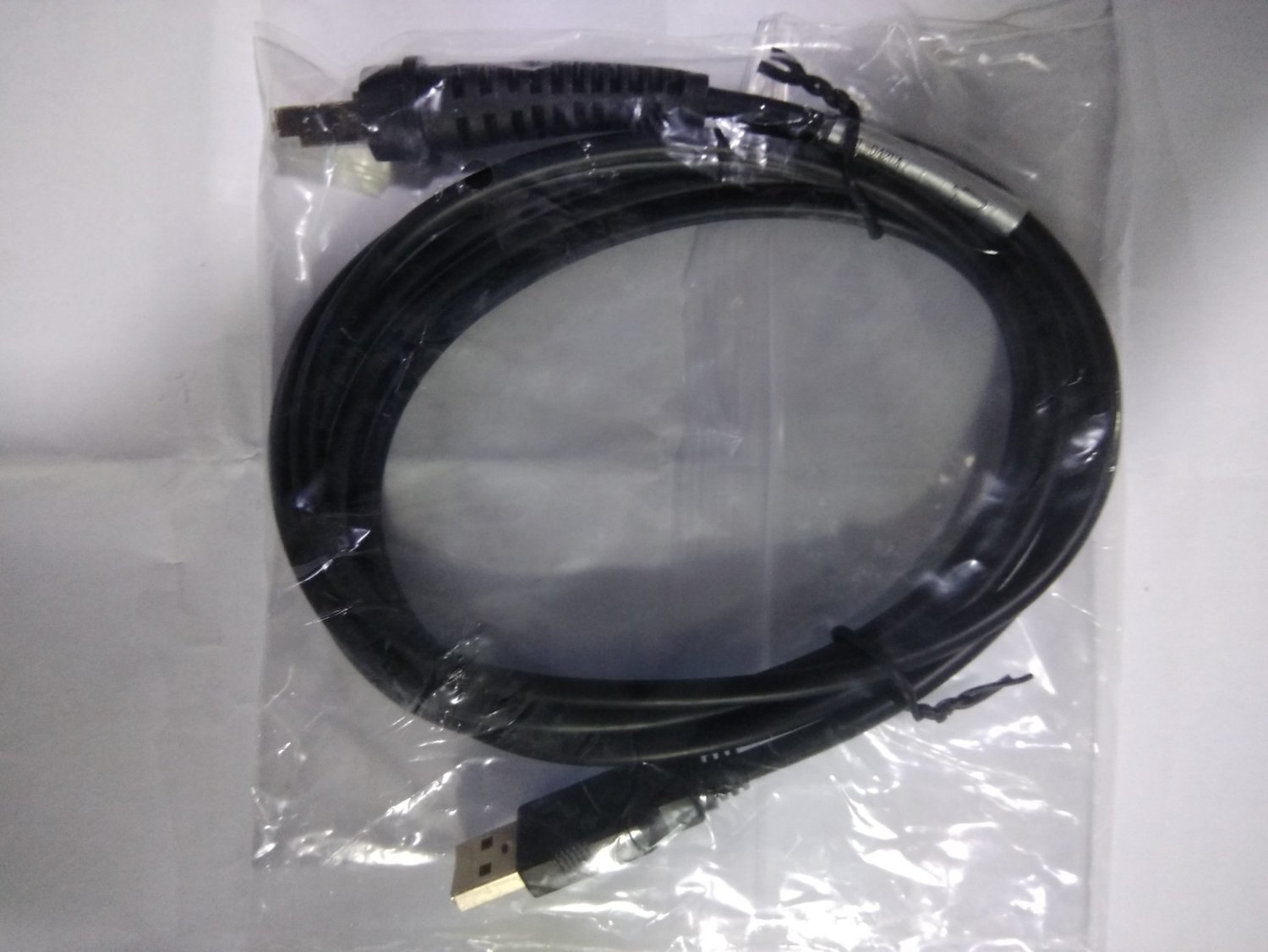

Cable

USB

Used to connect the scanner to a host device

1.2m Drop Resistance

Quick To Switch Mode

Ready To Read On Screen QR Code

IP50 Rated Sealing

IR Trigger

Superior Motion Tolerance
