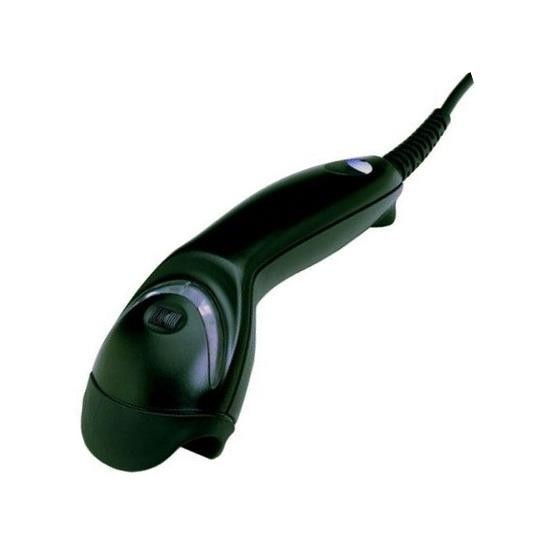

Honeywell Eclipse 5145 Hand-held Barcode Scanner
Overview
The Eclipse™ 5145 device is a single-line, handheld laser scanner with a compact form factor that's perfect for retail applications. With patented CodeGate™ technology, your team members can easily target the desired barcode and complete data transmission with a simple press of a button.
Specifications
MECHANICAL
Dimensions (LxWxH)
169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)
Weight
100 g (3.5 oz)
ELECTRICAL
Input Voltage
5 VDC + 0.25 V
Operating Power
675 mW (125 mA @ 5 V)
Host System Interfaces
USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
ENVIRONMENTAL
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Humidity
5% to 95% relative humidity, non-condensing
Drop
Designed to withstand 1.5 m (5 ft) drops
Environmental Sealing
Sealed to resist airborne particulate contaminants
Light Levels
4842 Lux
SCAN PERFORMANCE
Scan Pattern
Single scan line
Scan Speed
72 scan lines per second
Scan Angle
Horizontal: 50°
Symbol Contrast
35% minimum reflectance difference
Pitch, Skew
68°, 52°
Decode Capability
Reads standard 1D and GS1 DataBar symbologies
Warranty
3 year factory warranty
