Retsol PD-3500 Barcode Scanner for 1d & 2d

D3500 is a professional 2D Barcode reader ideal for Retail, manufacturing and Logistics. The high quality 2D Imageing scanning technology offers excellent reading performance for both linear and QR barcode.

The lightweight and ergonomic design allow a prolonged use without fatigun. The stand supplied provides a practial support to always have the scanner handy and can also beused for hands-free scanning. The PD3500 barcode canner comes with a 2 meters USB cable. Made of durable plastic to withstand fall.

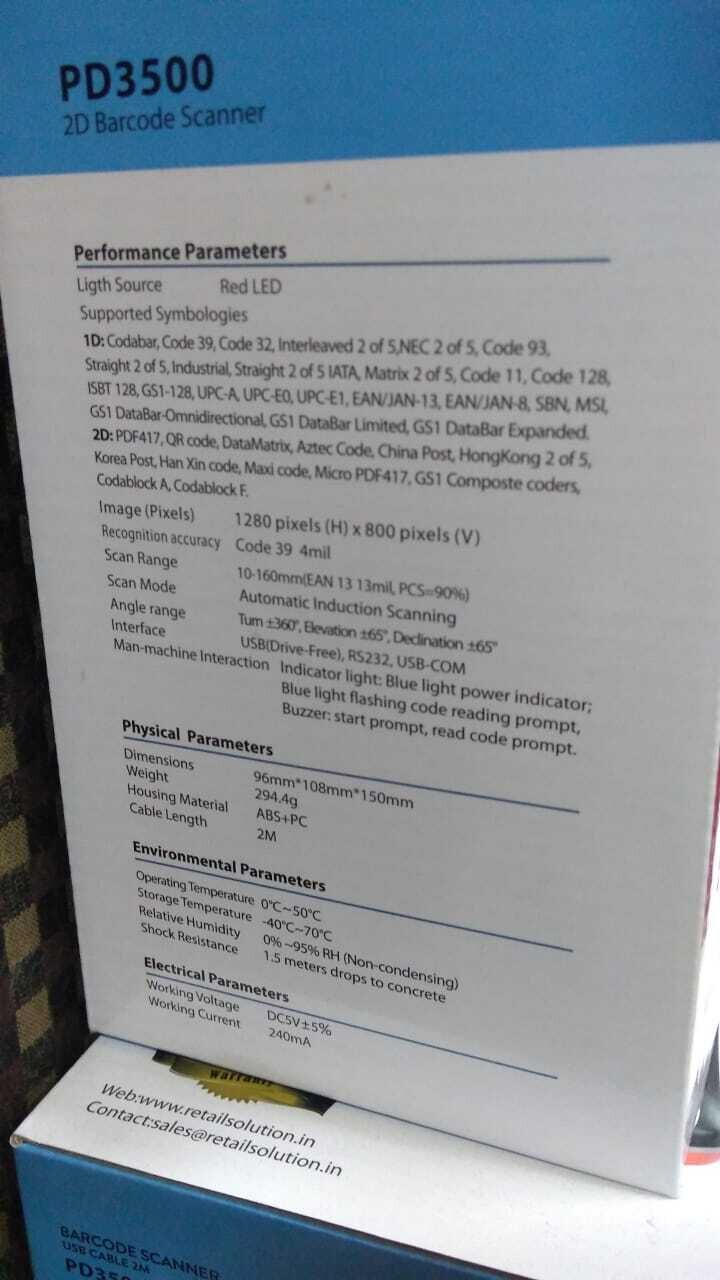

Performance Parameters

Ligth Source Red LED

Supported Symbologies

1D: Codabar, Code 39, Code 32, Interleaved 2 of 5,/EC 2 of 5, Code 93,

Straight 2 of 5, Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, ISBT 128, G51-128, UPC-A, UPC-EO, UPC- E1, EAN/JAN-13, EAN/JAN-8, SBN. MSI, G6SI DataBar Omnidirectional, G51 DataBar Limited, G51 DataBar Expanded.

2D: PDF417, QR code, DataMatrix, Aztec Code, China Post, HongKong 2 of 5, Korea Post, Han Xin code, Maxi code, Micro PDF417, GS1 Composte coders, Codablock A, Codablock F.

Image (Pixels)

1280 pixels (H) × 800 pixels (V)

Recognition accuracy Code 39 4mil

Scan Range

10-160mmlEAN 13 13mil, PCS 90%6)

Scan Mode

Automatic Induction Scanning

Angle range

Tum +360, Elevation 165°, Dedination 165°

Interface

USB(Drive-Free), R$232, USB-COM

Man-machine Interaction Indicator light: Blue light power indicator;

Blue light flashing code reading prompt, Buzzer: start prompt, read code prompt.

Physical Parameters

Dimensions

Weight

Housing Material

Cable Length

96mm*108mm* 150mm

294.4g

ABS+PC

2M

Environmental Parameters

Operating Temperature 0°C-50°C

Storage Temperature -40°C~70°C

Relative Humidity

Shock Resistance

0% -95% RH (Non-condensing)

1.5 meters drops to concrete

Electrical Parameters

Working Voltage

Working Current

DCSV¢5%

240mA
