TP-Link CPE610 Outdoor Access Point
SKU: CPE610_HSN:85176990
₹4,390
Quick SALE
MRP. ₹9,999 Save 56%
Price incl. GST (18%) ₹669.66
We always sell new latest manufacturing and genuine sealed pack products.
1
Our store is located at CST Mumbai.
TP-Link CPE610 Outdoor Access Point
Call or WhatsApp us if you have any questions.
UPC: 6935364081027
Brand: TP Link
Generic Name: Access Point
Part no.: CPE610
Model no.: CPE610
Product: New
Speed: 5GHz 300Mbps 23dBi
Warranty: 1 Year Tp Link Warranty
Volumetric Weight: 1.90 kg
5GHz 300Mbps 23dBi Outdoor CPE610
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Specifications
-
HARDWARE FEATURES Processor Qualcomm 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM,8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset ButtonPower Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDCDimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount) Antenna Gain 23dBi Antenna Beamwidth 9°(Azimuth), 7°(Elevation) Protection 15KV ESD Protection
6KV Lightning ProtectionEnclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof designWIRELESS FEATURES Wireless Standards IEEE 802.11a/n Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)Frequency 5.15~5.85GHz Transmit Power Max. 27dBm (Adjustable power by 1dBm) SOFTWARE FEATURES Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC BindingWireless Configurations Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi MultimediaManagement Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH ServerSystem Tools Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
TracerouteSystem-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dogOTHERS Certification CE, FCC, RoHS, IP65 Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation GuideSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
You May Also Like
Quick SALE
TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor
TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor
MRP. ₹5,590
Save 50%
₹2,790
Quick SALE
TP-LINK CPE710 5GHz Wireless Access Point
TP-LINK CPE710 5GHz Wireless Access Point
MRP. ₹8,999
Save 23%
₹6,950
On Sale
TP Link EAP650 Outdoor AX3000 WiFi 6 Access Point
TP Link EAP650 Outdoor AX3000 WiFi 6 Access Point
MRP. ₹29,999
Save 39%
₹18,400
Quick SALE
TP-Link EAP235-Wall Plate Access Point
TP-Link EAP235-Wall Plate Access Point
MRP. ₹10,999
Save 61%
₹4,250
On Sale
Netgear WAX610Y Outdoor Wireless Access Point
Netgear WAX610Y Outdoor Wireless Access Point
MRP. ₹50,000
Save 47%
₹26,700
On Sale
Netgear WAX610 Wireless Access Point
Netgear WAX610 Wireless Access Point
MRP. ₹40,000
Save 57%
₹17,400
Quick SALE
TP-Link EAP245 AC1750 Wireless Wi-Fi Access Point
TP-Link EAP245 AC1750 Wireless Wi-Fi Access Point
MRP. ₹15,999
Save 60%
₹6,350
On Sale
Netgear WAX615 Wireless Access Point
Netgear WAX615 Wireless Access Point
MRP. ₹40,000
Save 42%
₹23,400
On Sale
Tenda i24 AC1200 Wave 2 Gigabit Access Point
Tenda i24 AC1200 Wave 2 Gigabit Access Point
MRP. ₹24,000
Save 79%
₹5,150
On Sale
TP-Link EAP670 AX5400 Ceiling Mount WiFi 6
TP-Link EAP670 AX5400 Ceiling Mount WiFi 6
MRP. ₹39,999
Save 41%
₹23,710
On Sale

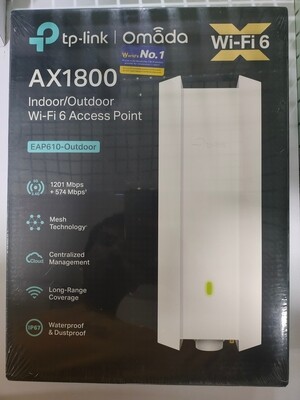

TP-Link EAP610-Outdoor AX1800 WiFi 6 Access Point
