TP Link EAP225-Wall Omada Wireless Wall-Plate Access Point

Call or WhatsApp us if you have any questions.

UPC: 845973099794

Brand: TP Link

Generic Name: Wireless Wi-fi Access Point

Product: TP-Link EAP225-Wall AC1200 MU-Mimo Omada Cloud Wall-Plate Wireless Wi-Fi Access Point

Model no: EAP225-Wall

Warranty: 1 Year from manufacturer

Volumetric Weight: 1 kg

Technical Details

Brand	‎TP-Link
Model	‎EAP225-Wall
Product Dimensions	‎1.42 x 0.86 x 0.2 cm; 181.44 Grams
Item model number	‎EAP225-Wall
Hardware Interface	‎Ethernet
Batteries Included	‎No
Batteries Required	‎No
Data Transfer Rate	‎1200 Megabits Per Second
Wireless Type	‎802.11b, 802.11a, 802.11ac
Number of Ports	‎1
Connector Type	‎Wi-fi
Item Weight	‎181 g

HARDWARE FEATURES
Interface	1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) 2 × 10/100Mbps Ethernet Port 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af or 802.3at PoE
Power Consumption	9 watts or 25.5 watts including PoE Out
Dimensions	5.6 × 3.4 × 0.8 in. (143 × 86 × 19.7mm)
Antenna	2 Dual-Band Antennas 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi
Mounting	Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n/g/b/ac
Frequency	2.4GHz and 5GHz
Signal Rate	• 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps
Wireless Functions	16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power	21dBm max. (2.4 GHz) 21 dBm max. (5 GHz)

MANAGEMENT
Omada Cloud Access	Yes
Omada App	Yes
Omada Cloud Controller	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Omada Controller Software	Yes
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

Environment

TP-Link EAP225-Wall AC1200 MU-Mimo Omada Cloud Wall-Plate Wireless Wi-Fi Access Point - Supports 802.3AF/at and POE Pass-Through

Complete In Room Wi-Fi Coverage

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

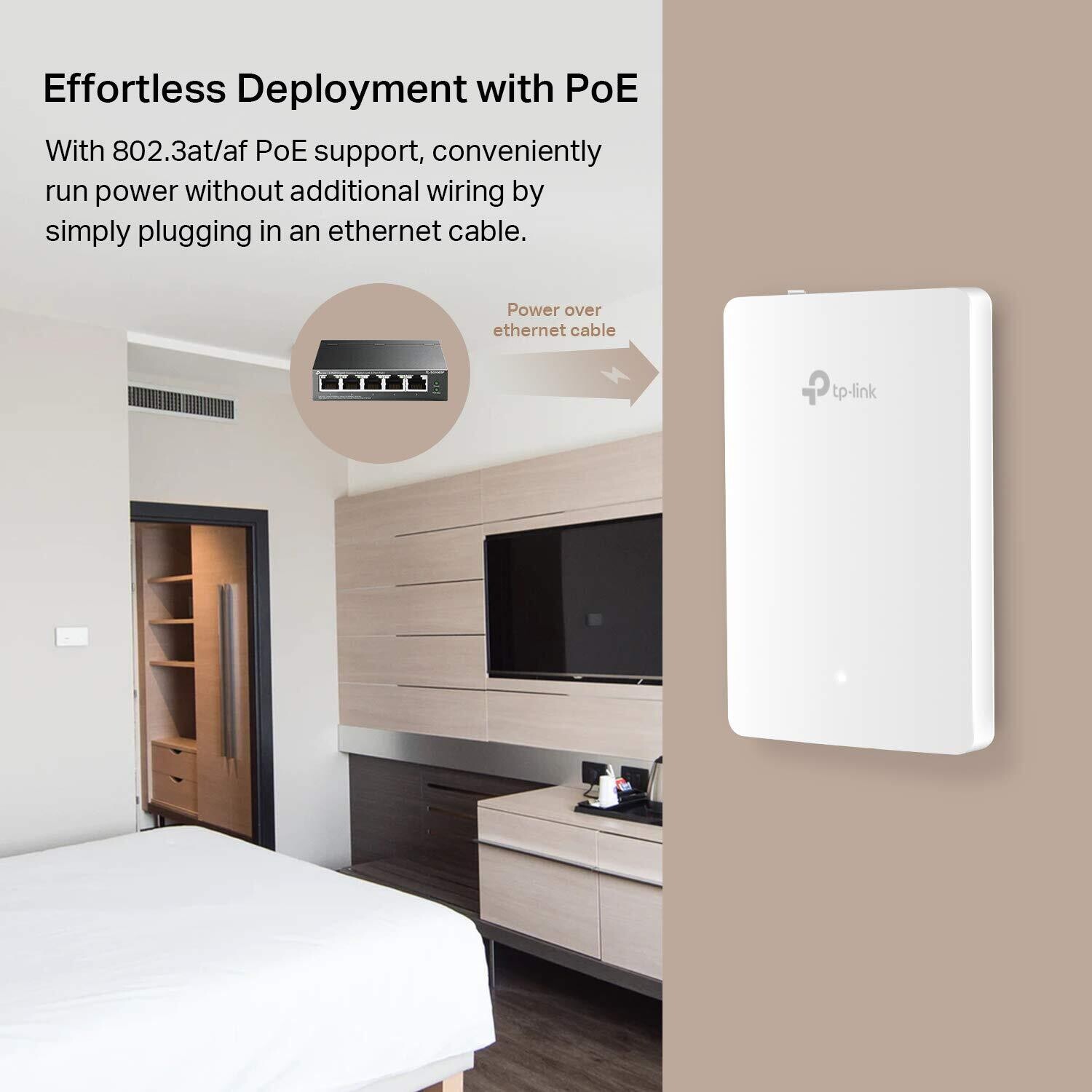

Effortless Deployment and Scalability

With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Installation Made Easy

Upgrade Ethernet wall jacks to high-performance Wi-Fi access points. The EAPs can be fitted to existing EU or US wall junction boxes, making installation quick and non-disruptive.

*Fit for flowing two kinds of wall junction

Standard US wall junction
Standard EU wall junction

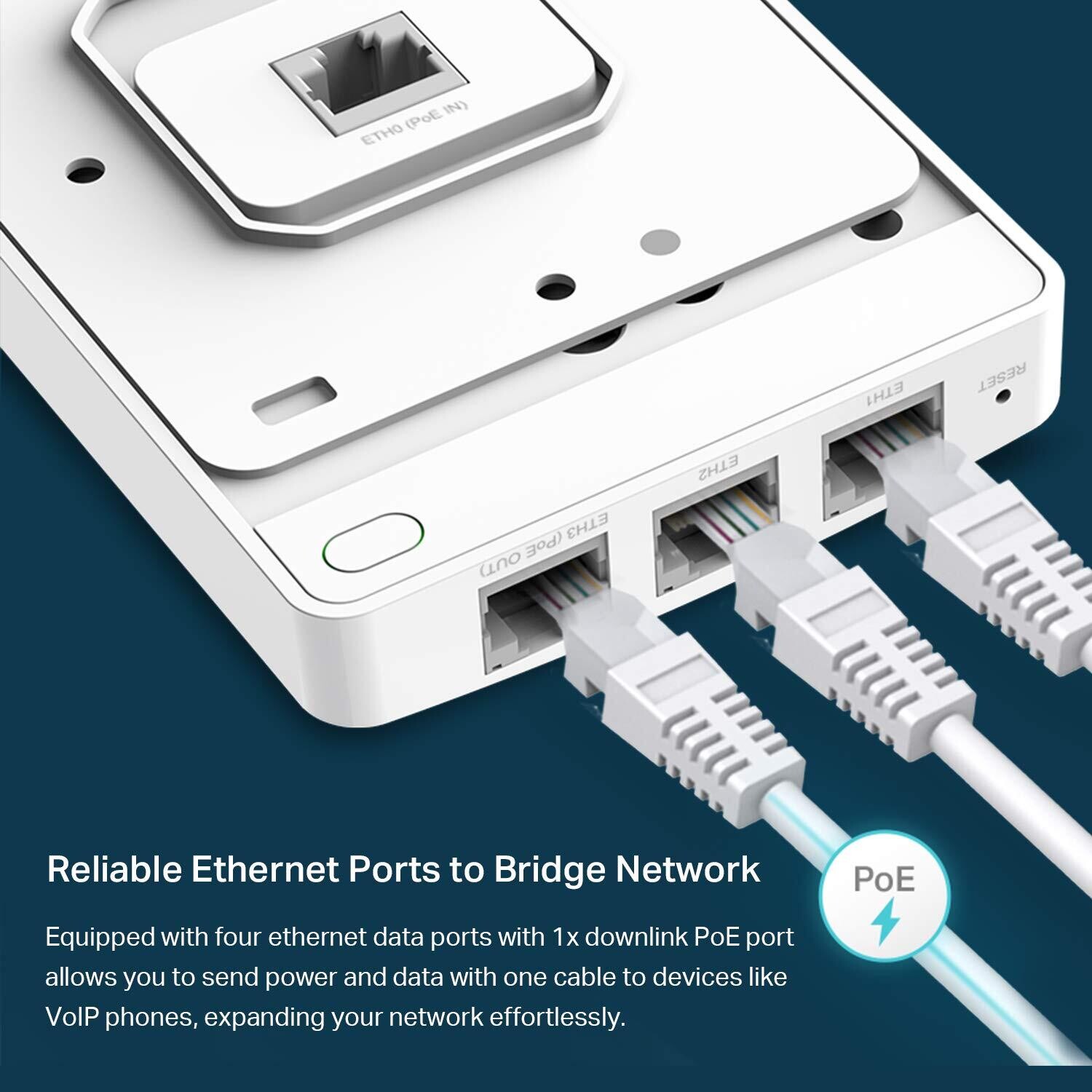

Three Ethernet Jacks, One PoE Outlet

More than just a wireless access point, EAP225-Wall acts as a switch and provides three standard Ethernet jacks together with a Power over Ethernet outlet, capable of powering wired devices such as IP phones, IP cameras, intercoms and more.

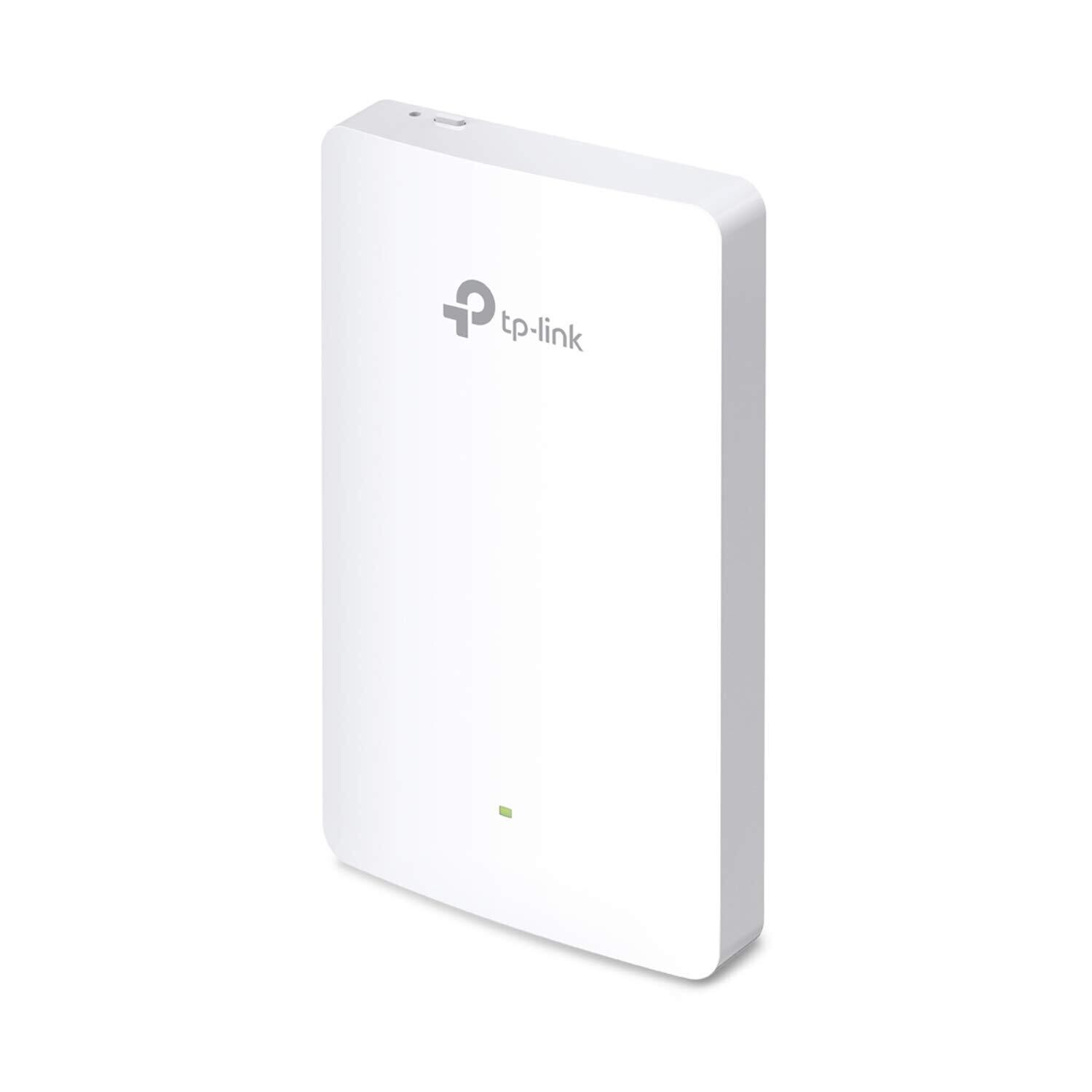

Blends Into Your Wall

The EAP225-Wall wireless access point blends into any business setting with a refined, minimalist appearance.

Gigabit Wi-Fi Speeds with MU-MIMO Technology

EAP225-Wall delivers combined dual-band speeds of up to 1200Mbps. Armed with the latest 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network.

Branch1

Branch2

Branch3

Branch4

Branch5

Branch6

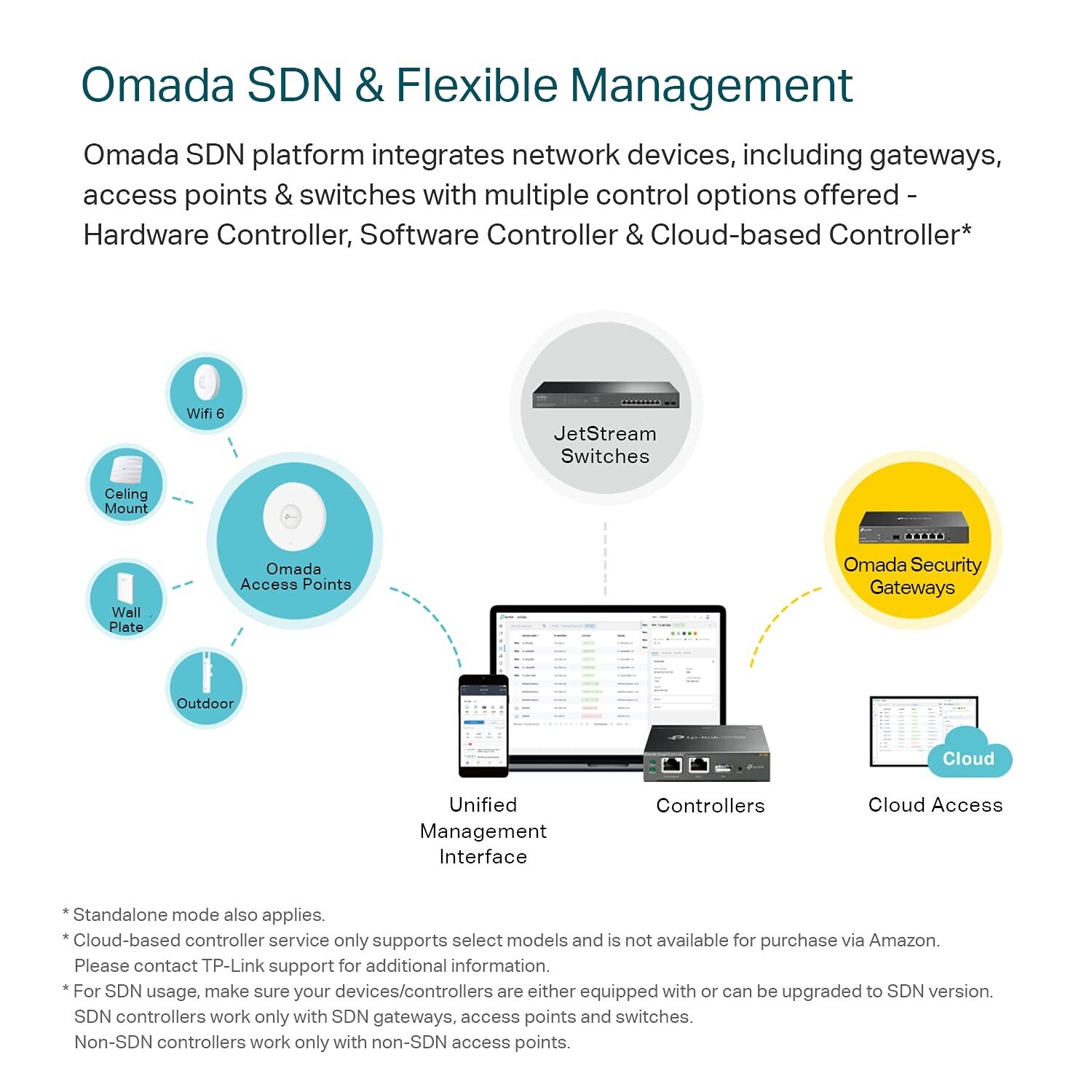

Cloud Management – Anywhere, Anytime

Omada offers cloud access to its centralized management platform. Take your network with you, wherever you go.

Cloud Service under Easy Control
Convenient Management
with remote access
Multi-Site Management
for large scale network

OTHERS
Certification	FCC, RoHS
Package Contents	AC1200 MU-MIMO Wall-Plate Access Point EAP225-Wall Installation Guide Mounting Screw
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
