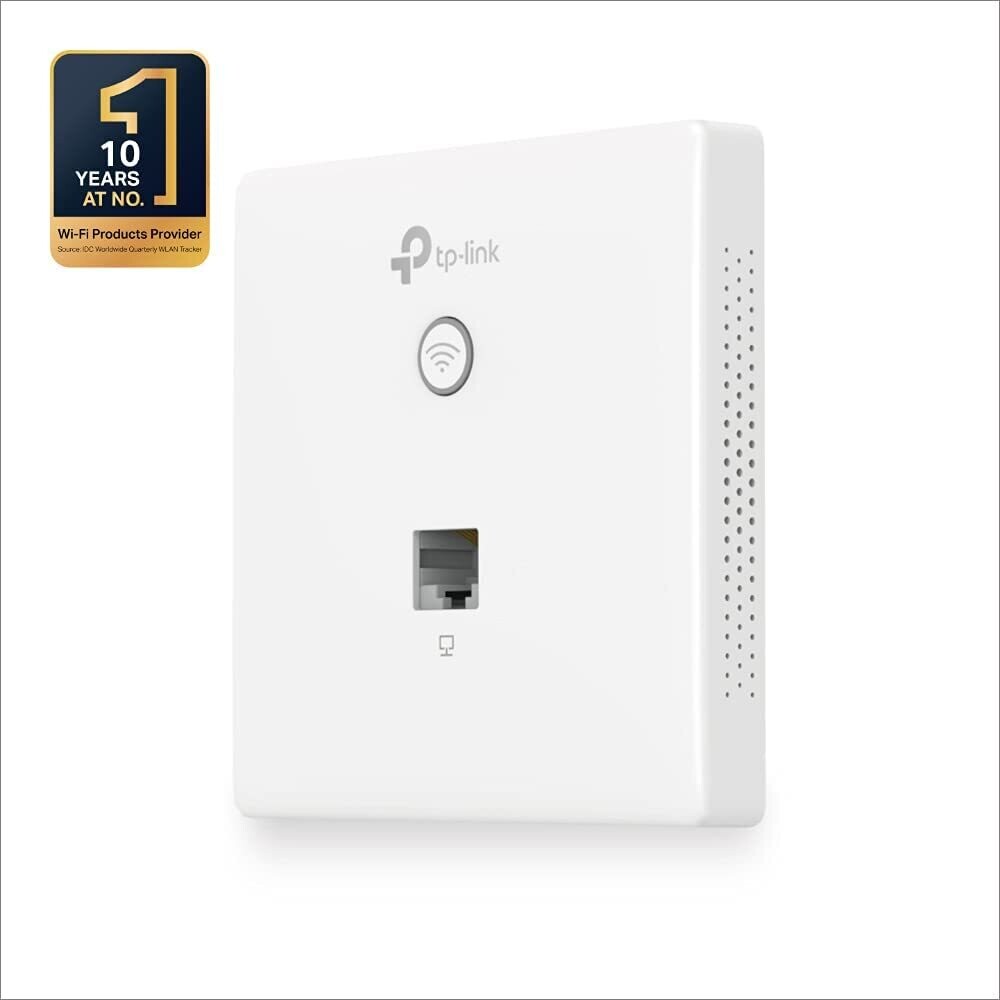

Tp-Link EAP230-Wall Omada AC1200 Wall-Plate Access Point
SKU: EAP230_HSN:84713090
₹4,550
Quick SALE
MRP. ₹7,500 Save 39%
Price incl. GST (18%) ₹694.07
We always sell new latest manufacturing and genuine sealed pack products.
1
Buy more, save more
Quantity | Price per item | Discount |
3 items | ₹4,520 | 1% off |
6 items | ₹4,490 | 1% off |
Our store is located at CST Mumbai.
Tp-Link EAP230-Wall Omada AC1200 Wall-Plate Access Point
Call or WhatsApp us if you have any questions.
UPC: 6935364089481
Brand: TP Link
Generic Name: Wall Plate Access Point
Part no.: EAP230-Wall
Model no.: AC1200
Product: New
Connectivity: Ethernet, Wi-Fi Built In
Speed: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps
Warranty: 3 Year from Manufacturer
System Requirement: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Volumetric Weight: 1 kg
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

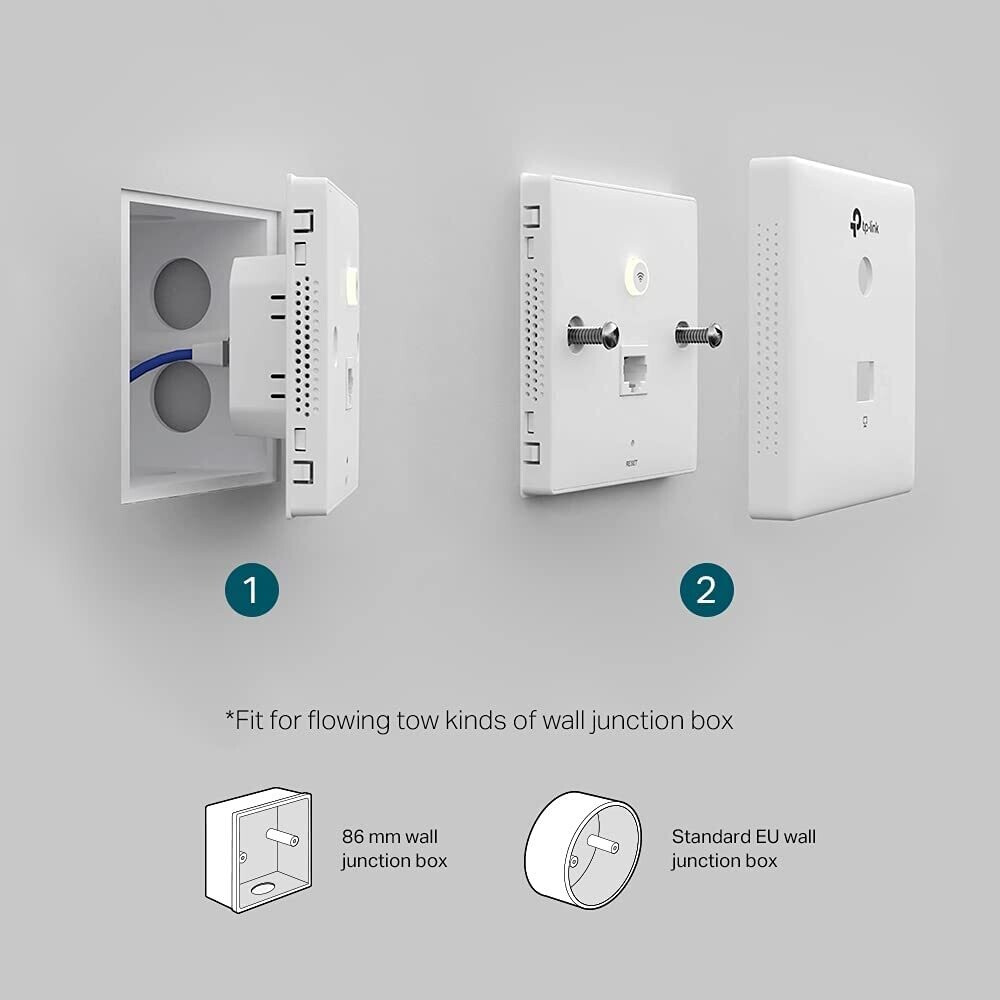

- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES | |
---|---|
Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port |
Physical Security Lock | No |
Button | LED/Wi-Fi Button, RESET |
Power Supply | 802.3af/802.3at PoE |
Power Consumption | 7 W |
Dimensions | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 3.6 dBi |
Mounting | Wall Plate Mounting |
Hardware Watch Dog | Yes |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11n/g/b/ac |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps |
Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • MU-MIMO • Band Steering • Beamforming |
Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
Transmission Power | CE: • ≤20 dBm (2.4 GHz, EIRP) • ≤23 dBm (5 GHz, EIRP) |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1,v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
OTHERS | |
---|---|
Certification | CE, RoHS |
Package Contents | • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall • Installation Guide • Mounting Screw |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
