TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor
CPE210_HSN:85176990
In stock
1
Product Details
UPC:
0804067306019
Brand:
TP Link
Product:
New
Generic Name:
Outdoor Access Point
Model no.:
CPE-210
Warranty:
3 Year tp link india
HARDWARE FEATURES | |
---|---|
Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
Memory | 64MB DDR2 RAM, 8MB Flash |
Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button |

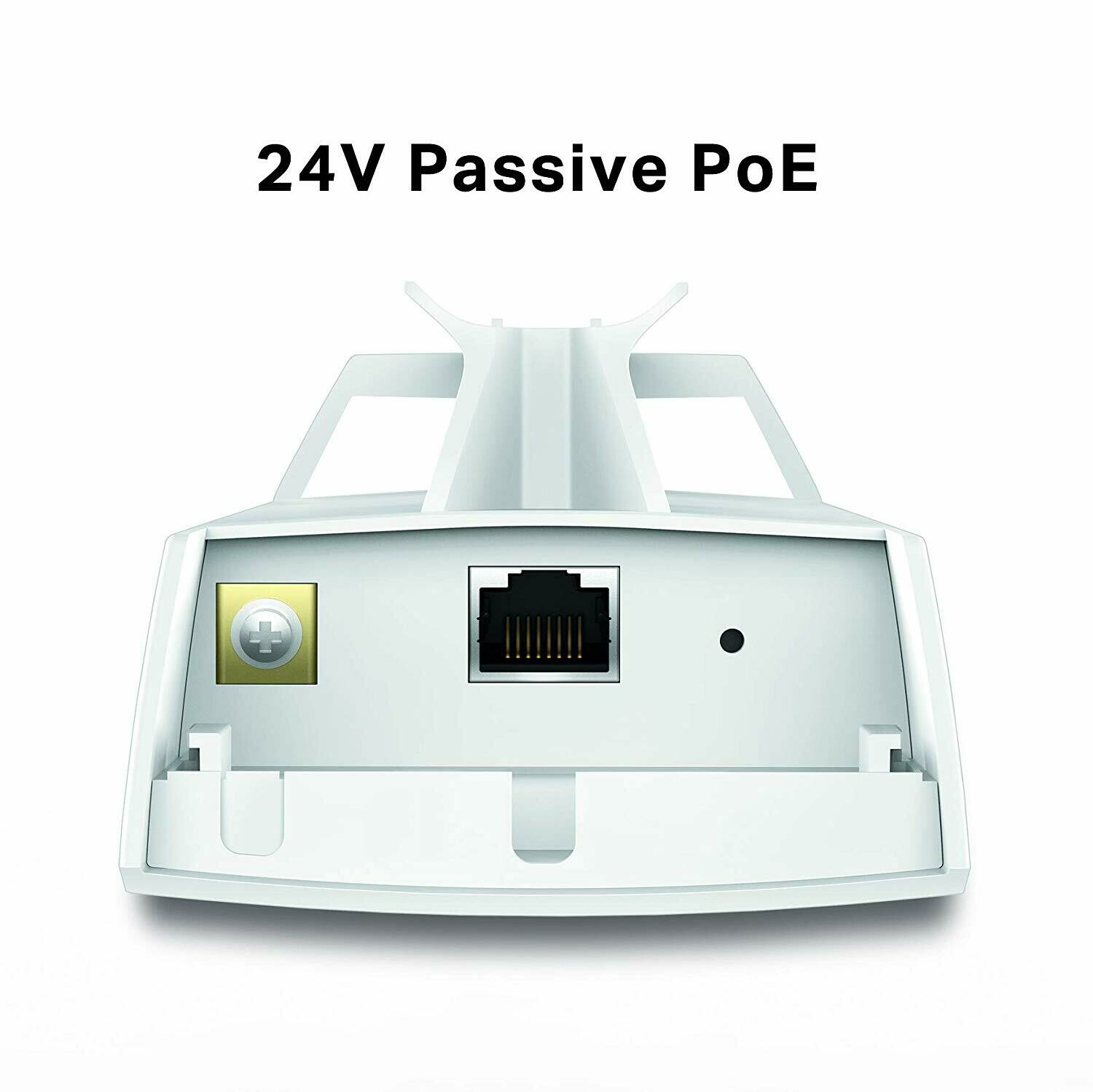

Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
Power Consumption | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
Dimensions ( W x D x H ) | 224 x 79 x 60 mm |

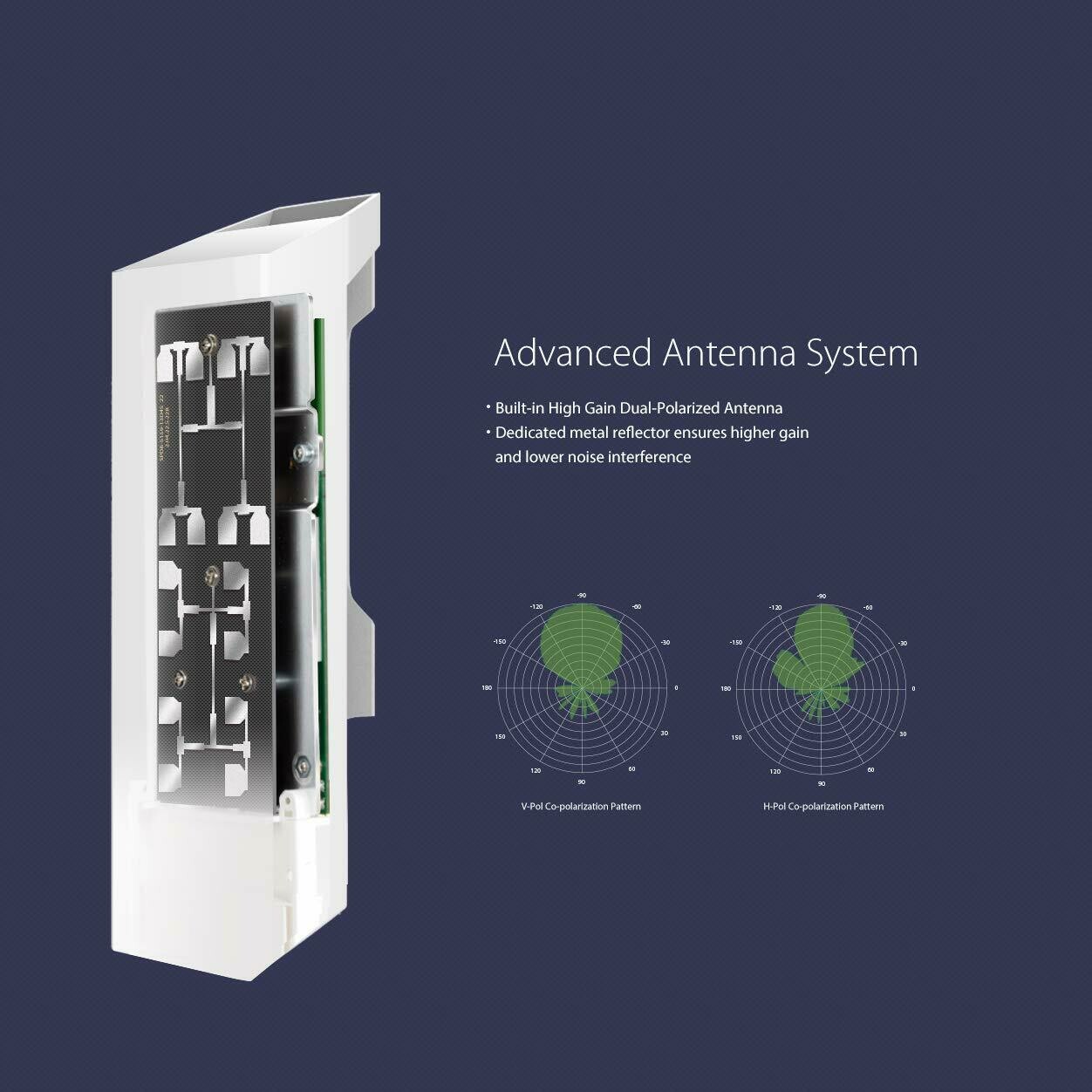

Antenna Type | Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) Note: For more details, please refer to datasheet |
Protection | 15KV ESD Protection 6KV Lightning Protection |
Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
Frequency | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
Transmission Power | 27dBm/500mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
SOFTWARE FEATURES | |
---|---|
Wireless Configurations | Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |

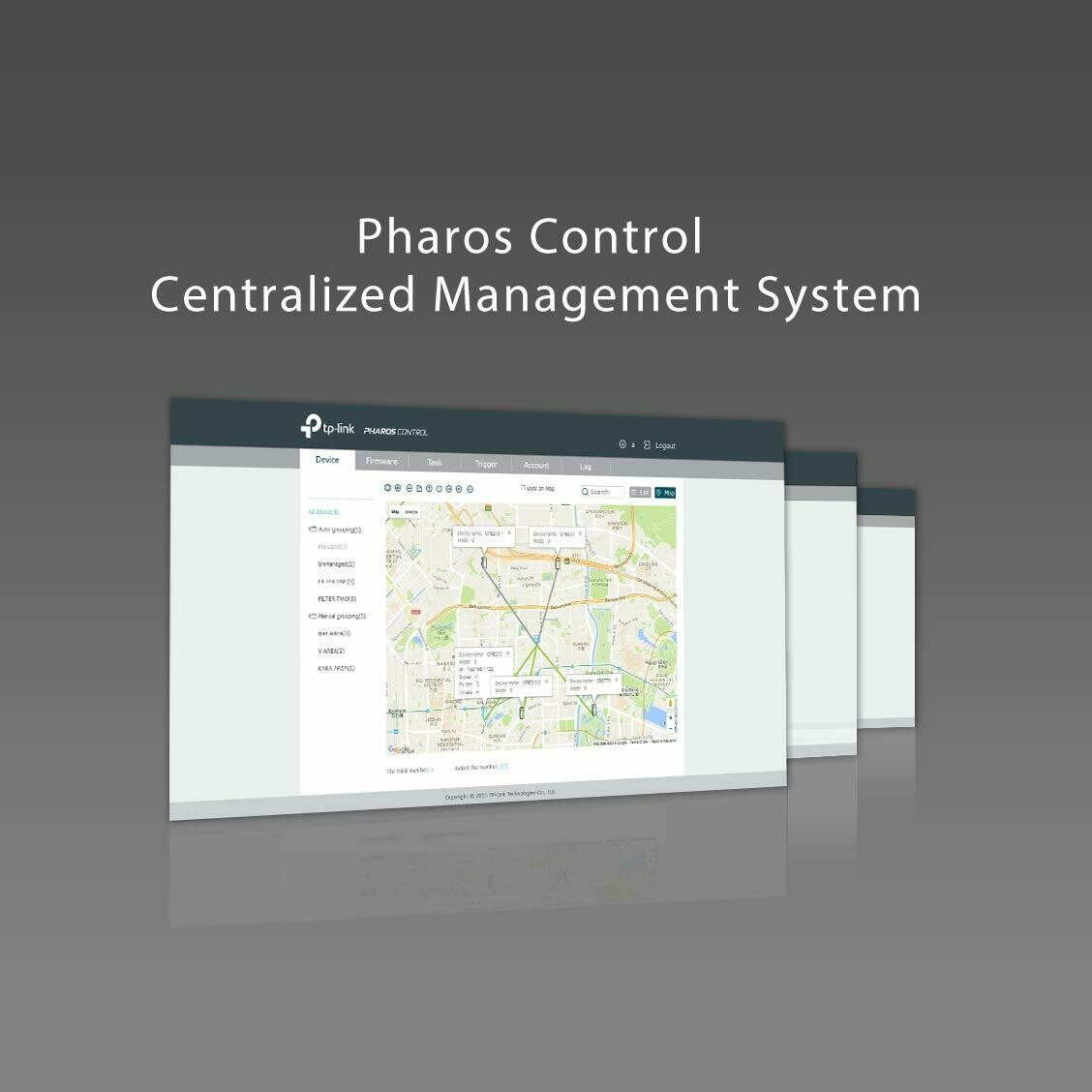

Management | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
POE ADAPTER FEATURES | |
---|---|
Dimensions(W x D x H) | 110*57*33.5mm |
Input Current | 0.8A Max @ 100VAC |
Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
Output | 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
Efficiency | >80% |
Output Voltage | 24VDC(+4,5pins; -7,8pins) |
Input | 100-240VAC, 50/60Hz |
Power Status LEDs | 0~0.8A: Green 0.8A~1.0A: Red |
Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
Interfaces | 1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data) |
Button | Remote Reset Button |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS, IPX5 |
Package Contents | Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
Environment | Operating Temperature: -40°C~70°C (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
