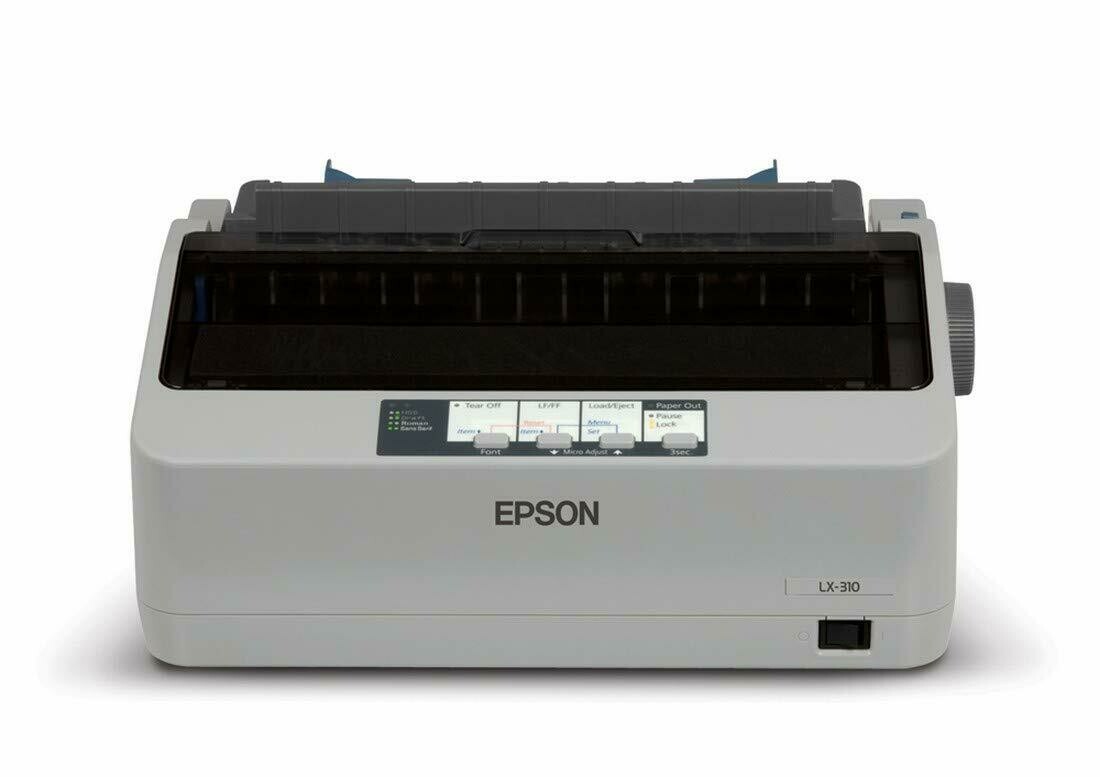

Epson LX-310 Impact Dot Matrix Printer
- Print speed: High 357 CPS print speed at 12CPI
- MTBF : 10,000 power on hour
- 9 Pin dot matrix printer
Product Description
9-Pin Narrow Carriage Impact Printer, Highly reliable printing with better performance, Narrow carriage 9-pin SIDM, High 357 CPS print speed at 12CPI, 10,000 power on hour MTBF, USB, Serial and Parallel ports.
From the Manufacturer
WHY THE EPSON LX-310?
Building on its reputation as the world’s top dot matrix printer maker, Epson has introduced the Epson LX-310 as the next-generation narrow carriage, 9-pin model that replaces the legendary LX-300, featuring vastly improved speed and reliability.
Extreme Speed
The Epson LX-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 357 characters per second at 12 CPI.
Improving on Legendary Reliability
The Epson LX-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LX-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model’s 6,000 POH.
High Impact for Multiple Carbon Copies
Achieve optimum efficiency with the LX-310’s ability to create up to a 5-part form printout (1 original + 4 copies).
Flexible Connectivity
With built-in USB, Serial and Parallel Interface options, the LX-310 is able to connect to just about any output device you need it for.
| MODEL NUMBER | LX-310 |
| Printing Technology | |
| Print Method | Impact dot matrix |
| Number of Pins in Head | 9 pins |
| Print Direction | Bi-direction with logic seeking |
| Control Code | ESC/P and IBM PPDS emulation |
| Print Speed | |
| High Speed Draft10/12/15 cpi | 347 / 357 / 390 cps |
| High Speed Draft Condensed17/20 cpi | 383 / 298 cps |
| Draft10/12/15 cpi | 260 / 312 / 223 cps |
| Draft Condensed17/20 cpi | 222 / 260 cps |
| Draft Emphasized10 cpi | 130 cps |
| NLQ10/12/15/17/20 cpi | 65 / 78 / 55 / 47 / 56 cps |
| Print Characteristics | |
| Character Sets | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
| Printable Columns | |
| Pitch10/12/15/17/20 cpi | 80 / 96 / 120 / 137 / 160 cpl |
| Paper Handling | |
| Paper Path | |
Tractor |
Rear in, Top out |
Manual Insertion |
Rear in, Top out |
| Paper Size | LengthWidthThickness |
Cut Sheet (Single Sheet) |
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.065 - 0.14mm (0.0025 - 0.0055") |
Cut Sheet (Multi Part) |
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.12 - 0.39mm (0.0047 - 0.015") (Total) |
Envelope (No.6) |
92mm (3.6")165mm (6.5")0.16 - 0.52mm (0.0063 - 0.0205") (Total) |
Envelope (No.10) |
105mm (4.1")241mm (9.5")0.16 - 0.52mm (0.0063 - 0.0205") (Total) |
Continuous Paper (Single Sheet an Multi part) |
101.6 - 558.8mm (4.0 - 22.0")101.6 - 254.0mm (4.0 - 10.0")0.065 - 0.39mm (0.0025 - 0.015") (Total) |
Roll Paper |
216mm (8.5")0.07 - 0.09mm (0.0025 - 0.0035") |
| Paper Feeding | |
Standard |
Friction, Push Tractor |
Optional |
Roll Paper Holder |
| Copies | Original + 4 copies |
| Line Spacing | 4.23mm (1/6") or programmable in increments of 0.118mm (1/216") |
| Input Data Buffer | 128KB |
