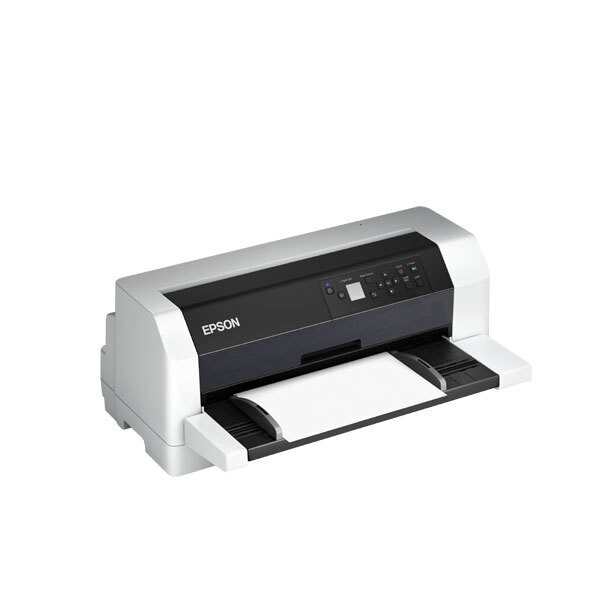

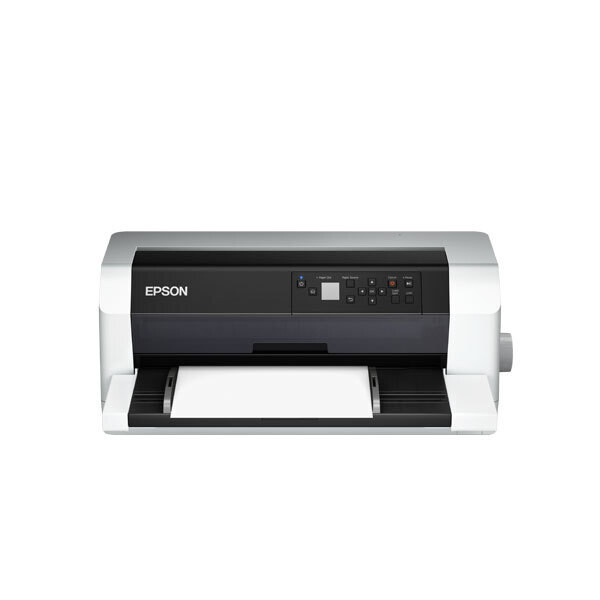

Epson DLQ-3500II Dot Matrix Printer

SKU: C11CH59509_HSN:84439952
₹71,000
SALE
MRP. ₹95,000
Save 25%
Price incl. GST (18%) ₹10,830.51
We always sell new latest manufacturing and genuine sealed pack products.
1
Order Quantity : from 1 to 2 qty
Our store is located at CST Mumbai.
(Free Shipping in Limited Area)
Call or WhatsApp us if you have any questions.
Brand: Epson
Model no.: DLQ-3500II
Generic Name: Dot Matrix Printer
Product: New
Warranty: 1 Year Epson
Volumetric Weight: 8 kg
  • Fast and durable wide carriage Epson 24 pin flat-bed printer
  • Prints up to 550 characters per second
  • Automatic paper handling and automatic paper thickness adjustment
  • Prints up to 8 part forms (1 original + 7 copies)
  • What's In The Box:
    • Ribbon cartridge (Black)
    • Power Supply Cable
    • CD Driver
    • Front sheet guide
    • User guide

    Printing Technology:

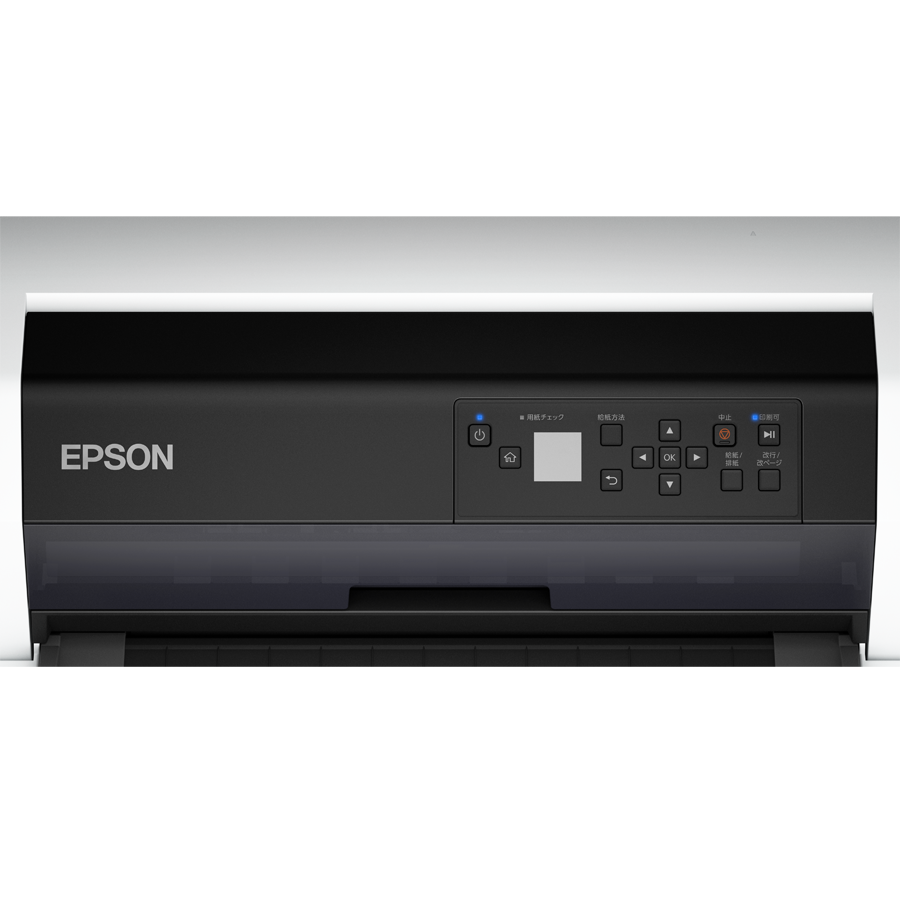

    Print Method:Impact dot matrixControl Panel:13 switches and 3 LEDs with 3.65cm (1.44”) CLR LCD ScreenPrint Direction:Bi-direction with logic seekingColour:BlackNumber of Pins in Head:24 pins x 2 (total 48 pins)Control Code:ESC/P2 and IBM PPDS emulation

    Reliability:


    Printhead Life:200 million strokes / wireMean Print Volume Between Failure (MVBF):25 million lines (except printhead)Mean Time Between Failure (MTBF):10,000 Power On Hours

    Print Characteristics:


    Character Sets:1 Italic and 12 graphical character tables Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese)3, PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
    Special Font (Thai Model only): Busaba, Jittra Font Supported 7 character tables: KU42, TIS11, TIS13, TIS16, TIS17, TIS18, TSM/WINBitmap Fonts:EPSON Draft/ Courier: 10 / 12 / 15 cpi ; EPSON Roman /Sans Serif: 10 / 12 / 15 cpi, Proportional ; EPSON Prestige: 10 / 12 cpi ; EPSON Script/ OCR-B/ Orator/ Orator-S: 10 cpi ; EPSON Script C: ProportionalScalable Fonts:EPSON Roman/ Sans Serif/ Roman T/ Sans Serif H: 10.5 pt, 8 pt – 32 pt (every 2 pt)Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

    Paper Path:


    Manual Insertion:Front in, Front outPush Tractor:Rear in, Front outPull Tractor:Rear in, Front out

    Paper Media:


    Cut Sheet (Single Sheet):(Manual Insertion) Length: 80.0 ~ 420.0mm (3.15 ~ 16.5")
    (Manual Insertion) Width: 90.0 ~ 420.0mm (3.5 ~ 16.5")
    (Manual Insertion) Thickness: 0.065 ~ 0.19mm (0.0025 ~ 0.0074")Cut Sheet (Multi-part Forms):(Manual Insertion) Length: 80.0 ~ 420.0mm (3.15 ~ 16.5")
    (Manual Insertion) Width: 90.0 ~ 420.0mm (3.5 ~ 16.5")
    (Manual Insertion) Thickness: 0.12 ~ 0.62mm (0.0047 ~ 0.024")Continuous Paper (Single Sheet / Multi-part):Length: 76.2 ~ 558.8mm (3.0 ~ 22.0")
    Width: 101.6 ~ 406.4mm (4.0 ~ 16.0")
    Thickness: 0.065 - 0.19mm (0.0025 - 0.0074")Envelope (No.6):Length: 92.0mm (3.6")
    Width: 165.0mm (6.5")
    Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205")Envelope (No.10):Length: 105.0mm (4.1")
    Width: 241.0mm (9.5")
    Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205")Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0")
    Base Sheet Width: 101.6 ~ 406.4mm (4.0 ~ 16.0")
    Base Sheet Thickness: 0.07 ~ 0.09mm (0.0028 ~ 0.0035")
    Total Thickness: 0.16 ~ 0.19mm (0.0063 ~ 0.0075")Label (Base Sheet):Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0")Card:Length: 100.0 ~ 200.0mm (3.9 ~ 7.8")
    Width: 100.0 ~ 200.0mm (3.9 ~ 7.8")
    Thickness: 0.22mm (0.0087")Line Spacing:4.23mm (1/6") or programmable in increments of 0.0706mm (1/360")

    Consumables:


    Consumables:Ribbon Cartridge (Black): C13S015587

    Environmental Conditions (Operating):


    Temperature:5 to 35°CHumidty:10 to 80 % RH

    Acoustic Noise:


    Acoustic Noise:Approx. 59 dB(A) (ISO 7779 pattern)

    Input Data Buffer:


    Input Data Buffer:128 KB


    Epson DLQ-3500II Dot Matrix Printer
