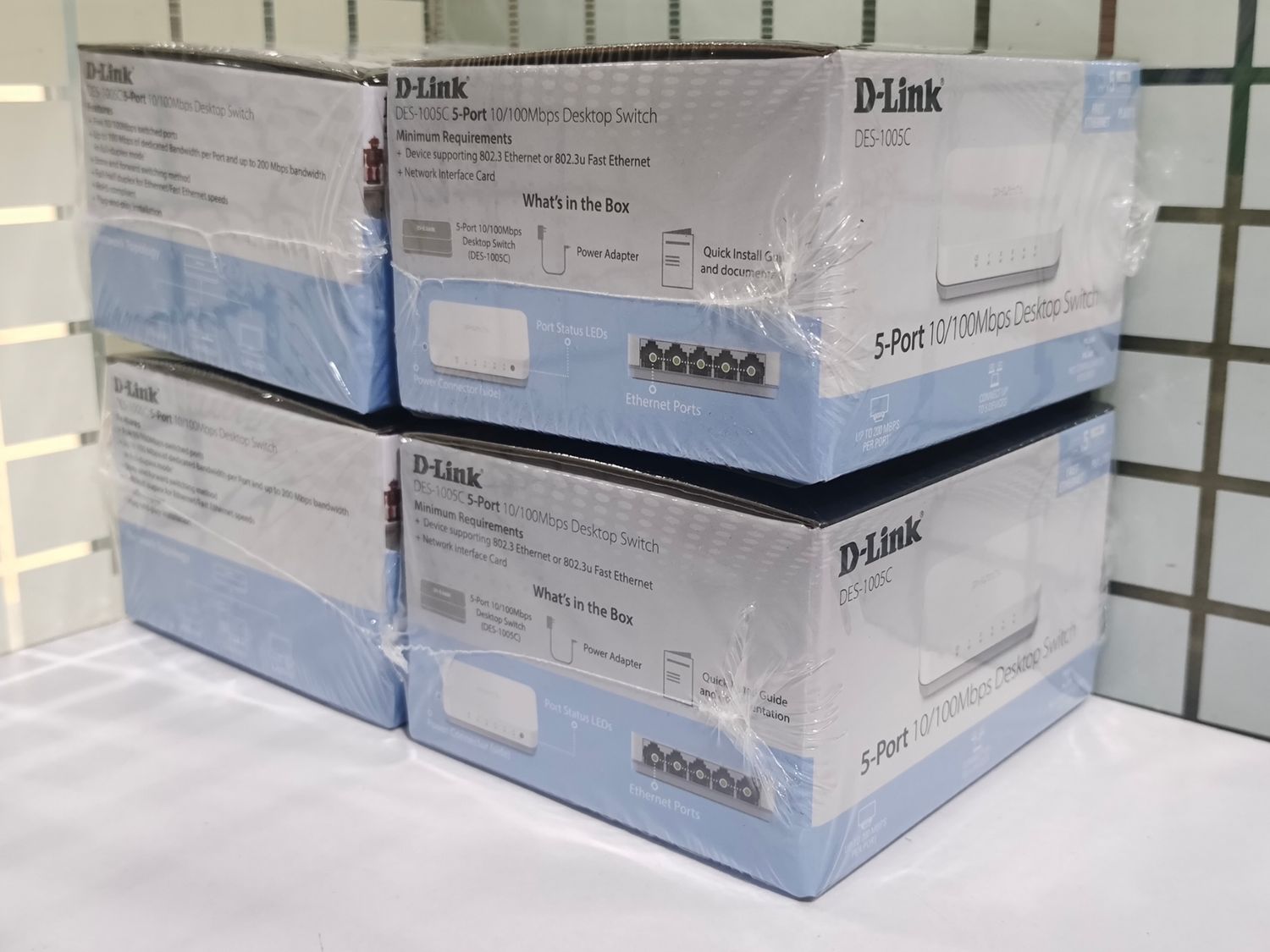

Name: D-Link DES-1005C 5-Port Network Switch, - Rs.620
Brand: D-Link
SKU: DES-1005C_HSN:85176290
Price: 620.0 INR
Availability: InStock

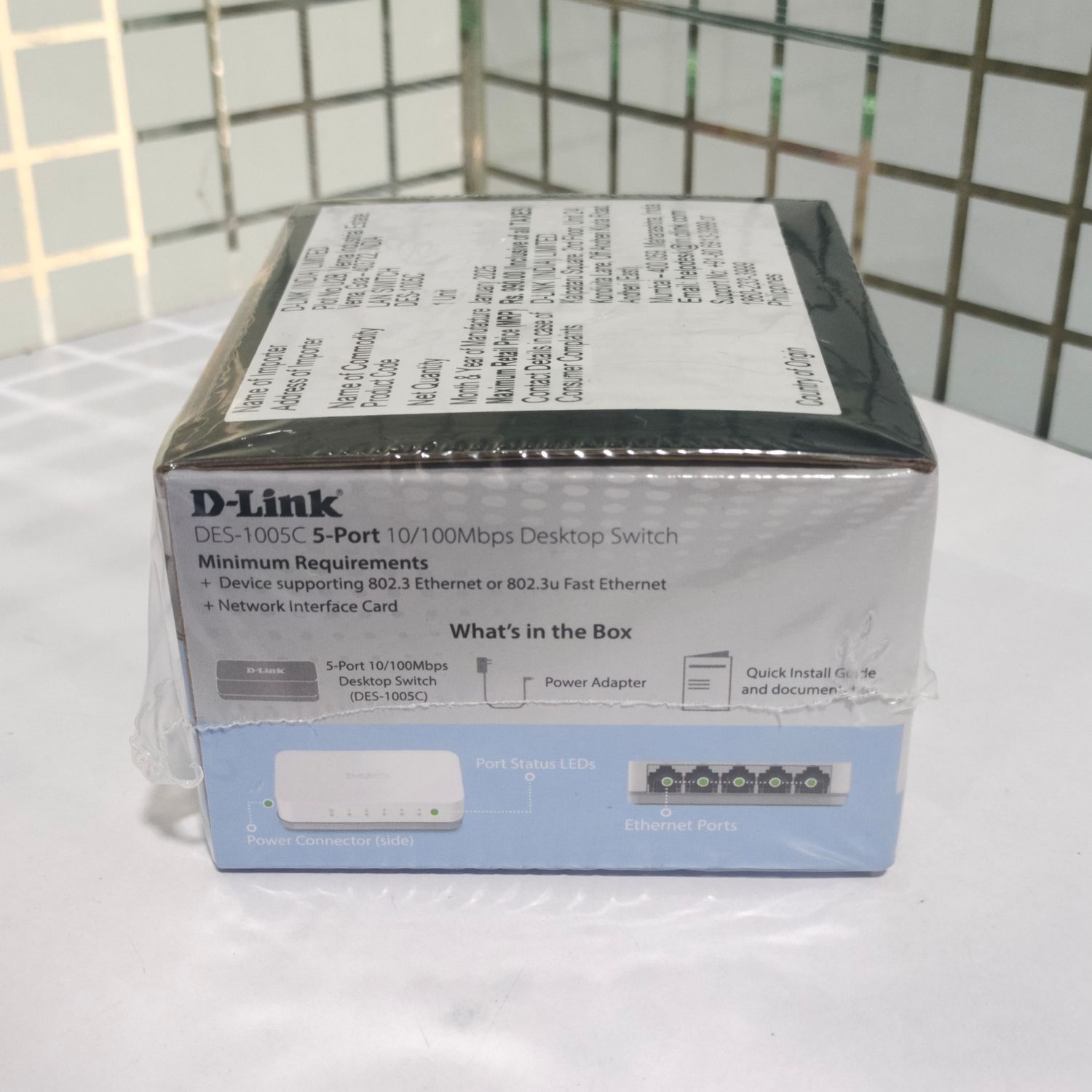

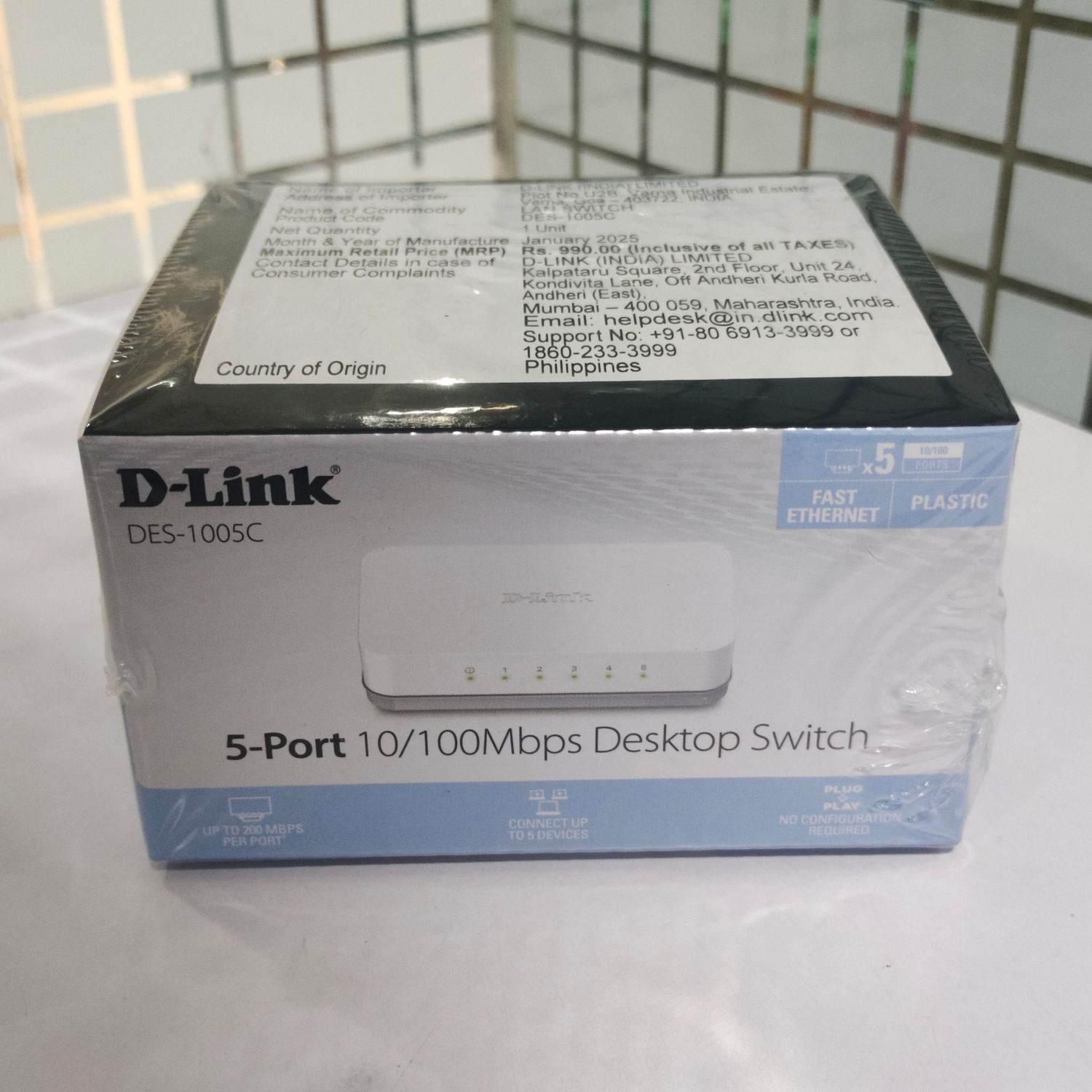

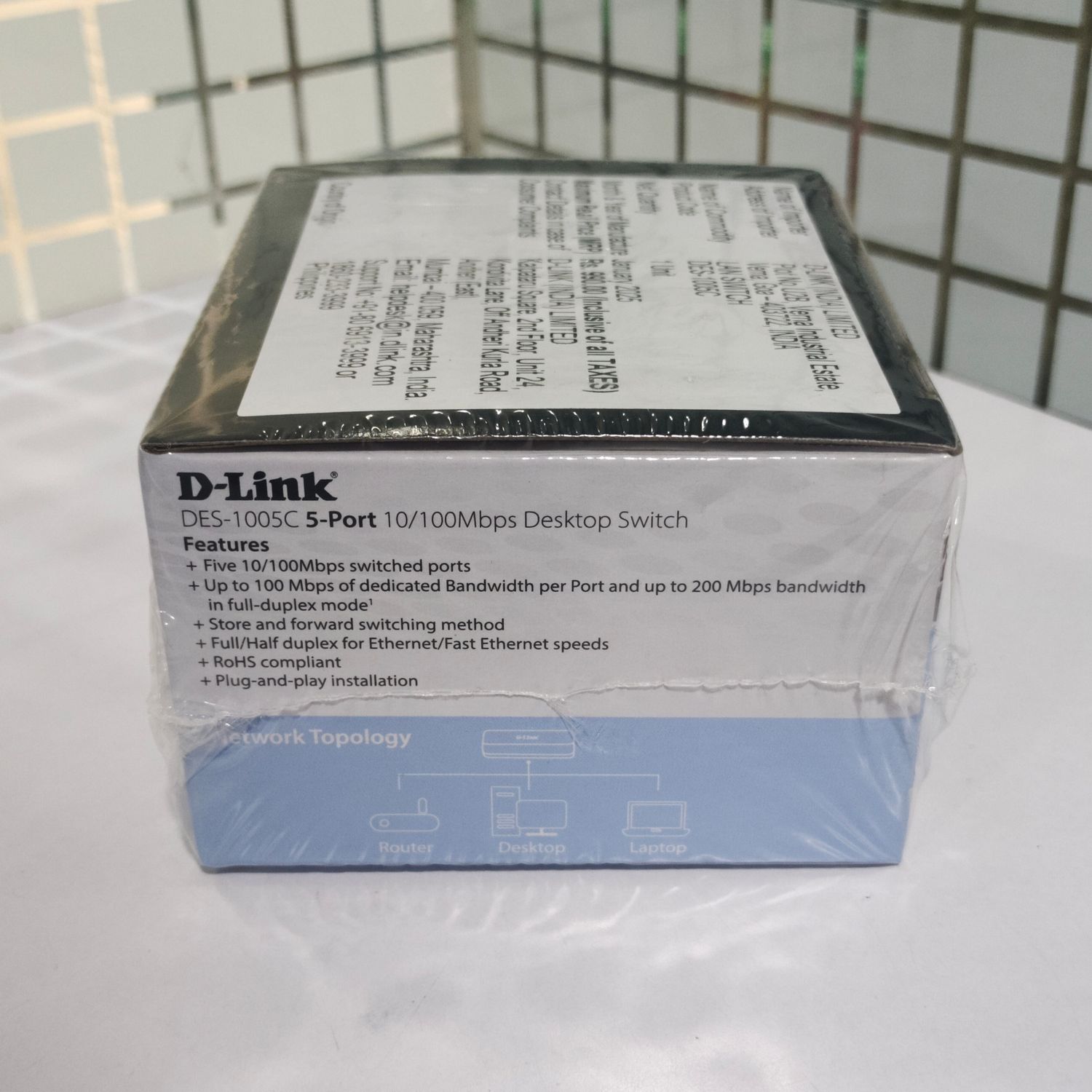

D-Link DES-1005C 5-Port Network Switch

Call or WhatsApp us if you have any questions.

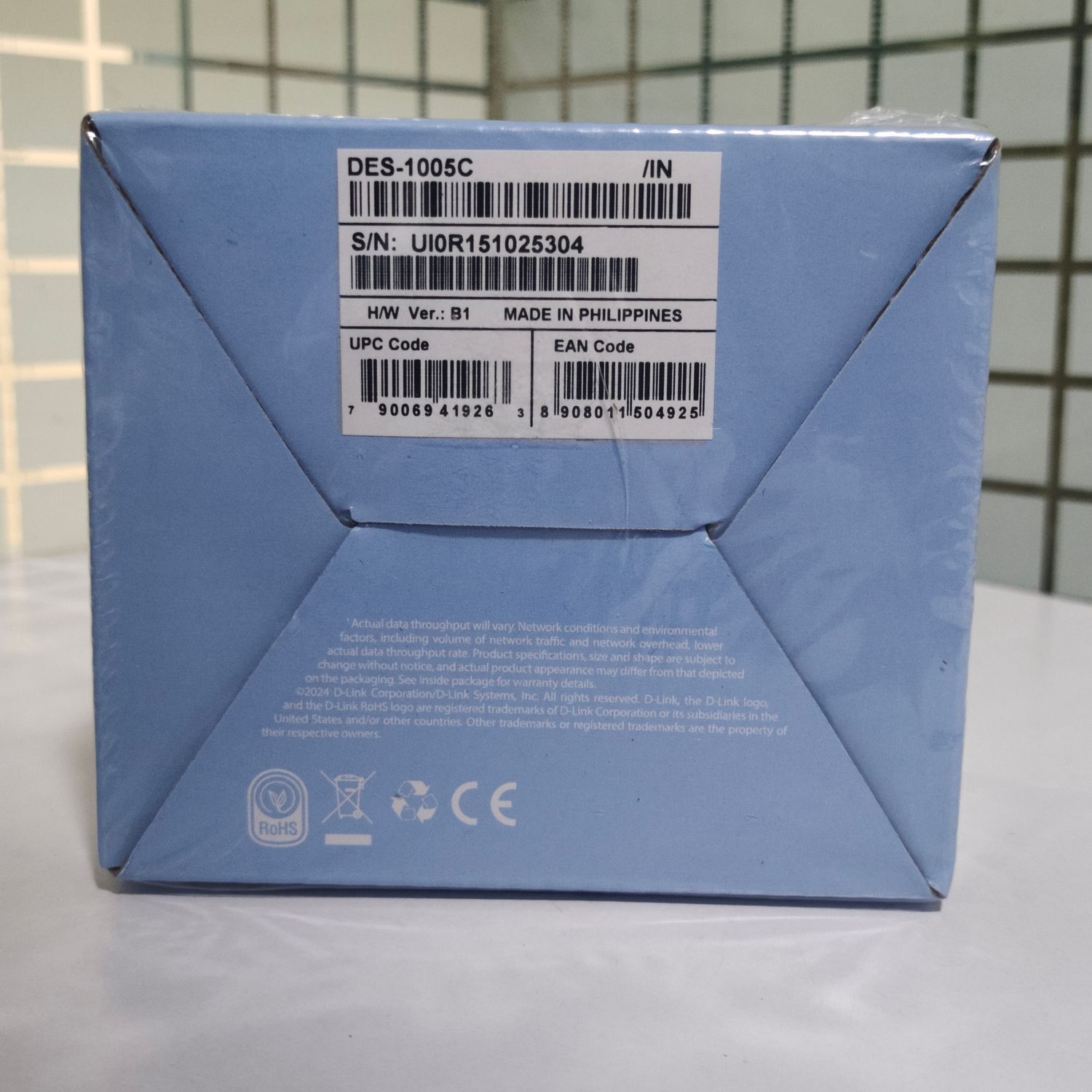

UPC: 790069419263

Brand: D-Link

Product: New

Generic Name: Desktop Switch

Model no.: DES-1005C

Warranty: D Link india

Volumetric Weight: 0.20 kg

Description:

The DES-1005C 10/100 Mbps Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Fast Networking Made Easy

With data transfer speeds of up to 200 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet

ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover

makes connection a cinch; just plug in your cables and you’re ready to go.

Conserve Energy

The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DES-1005C is Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

General features:

Device Interfaces

• Five 10/100 Mbps LAN ports

Standards

• IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX

• IEEE 802.3x Flow Control

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity

• 1 Gbps switching fabric

Advanced Features

• Auto MDI/MDIX crossover for all ports

• Secure store-and-forward switching scheme

• Full/half-duplex for Ethernet/Fast Ethernet speeds

• Supports 2,048 byte jumbo frames

• Back pressure at half-duplex operation

• Wire-speed reception and transmission

• Store and-Forward switching method

• Auto-negotiation for each port

• EEE compliant IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX

• IEEE 802.3az EEE

• IEEE 802.3x flow control

Data Transfer Rates

• Ethernet:

• 10 Mbps (half duplex)

• 20 Mbps (full duplex)

• Fast Ethernet:

• 100 Mbps (half duplex)

• 200 Mbps (full duplex)

Transmission Method

• Store-and-forward

MAC Address Table Size

• 2,000

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port

• Fast Ethernet: 148,800 pps per port

RAM Buffer

• 96 KB per device

Physical Parameters

LED Indicators

• Per port: Link/Activity/Speed

• Per device: Power

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Dimensions

• 88 x 48 x 21.45 mm

Weight

• 43.4 grams

Power

• DC 5 V / 0.55 A

• DC jack: Located on side

Power Consumption

• Power On (Standby): 0.4 watts

• Maximum: 0.784 watts

Temperature

• Operating: 0° to 40°C

• Storage: -40° to 70°C

Humidity

• Operating: 10% to 90% (Non-condensing)

• Storage: 5% to 95% (Non-condensing)

MTBF

• 1 785 631 hours

Maximum Heat Dissipation

• 0.406 BTU/h

Certifications

• CE Class B

• CE (LVD 2006/95/EC)
