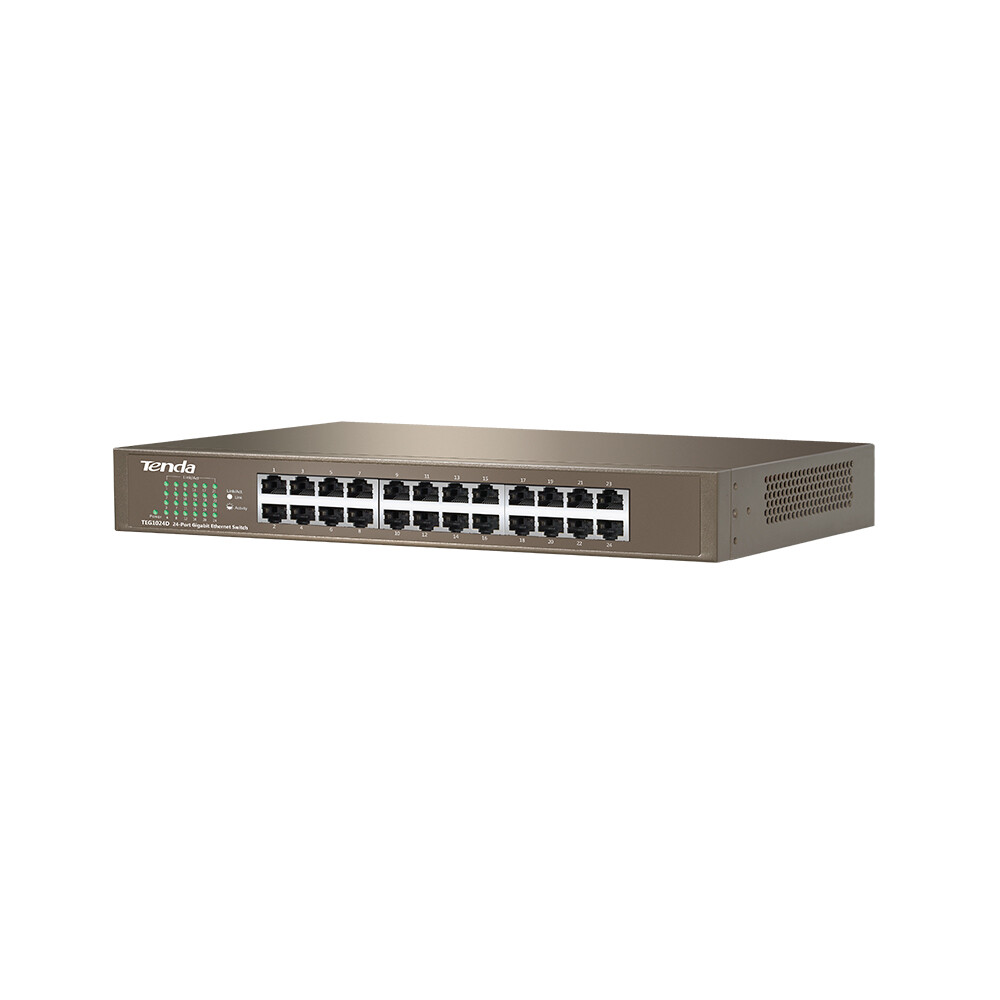

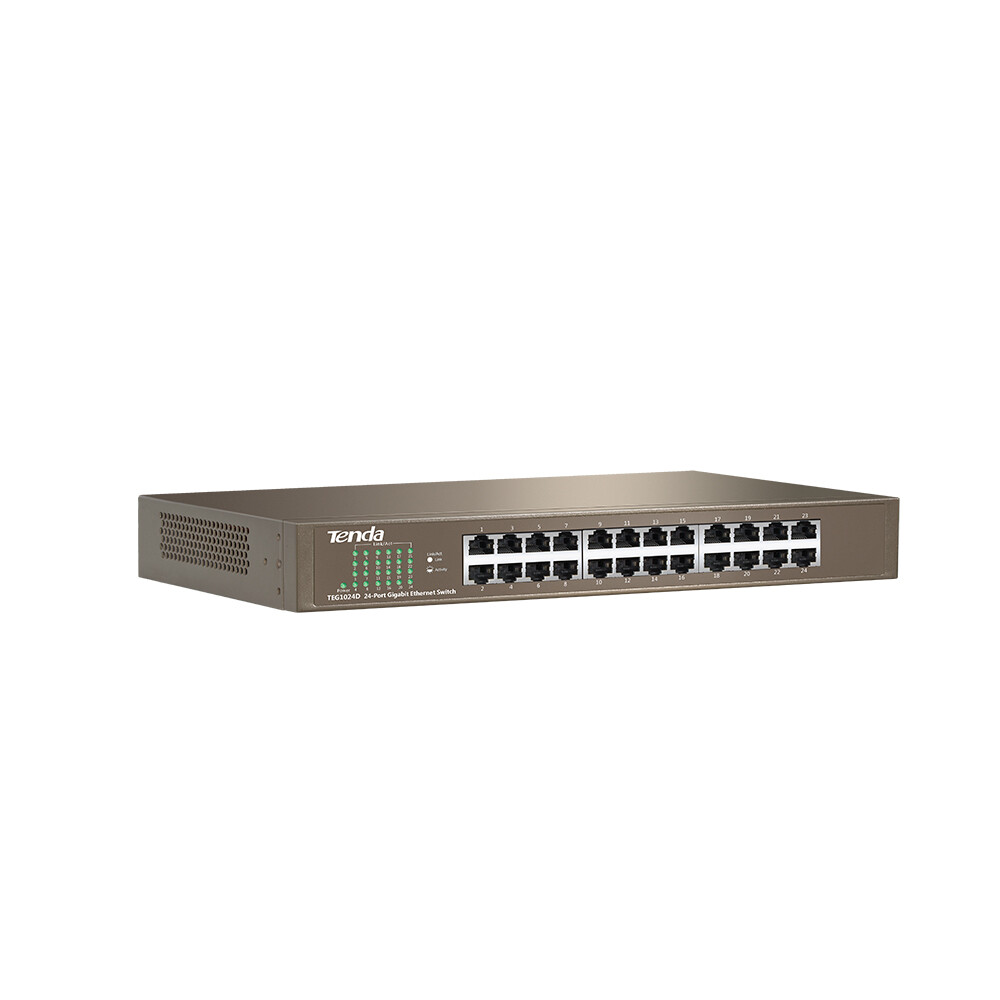

Tenda TEG1024D 24 Port 10/100/1000 Mbps Gigabit Switch
Stable connection for 7*24
24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
Excellent lightning protection of ports
Professional integrated lightning protection circuit enables all the 24 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
Professional lightning protection for power supply
The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
Innovative design
Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Higher-efficient heat dissipation
Fanless design
19-inch rack mount
Product Description
The Tenda TEG1024D 24-Port 10/100/1000 Gigabit Switch is specially designed for SMB networking that offers corporate network a remarkable boost of speed and capacity without breaking corporate budget. With up to 48Gbps of switching capacity, the switch can blast 2000 Mbps per port. Use it to take Gigabit Ethernet directly to the desktop with your existing Cat.5 TP cables!
From the Manufacturer

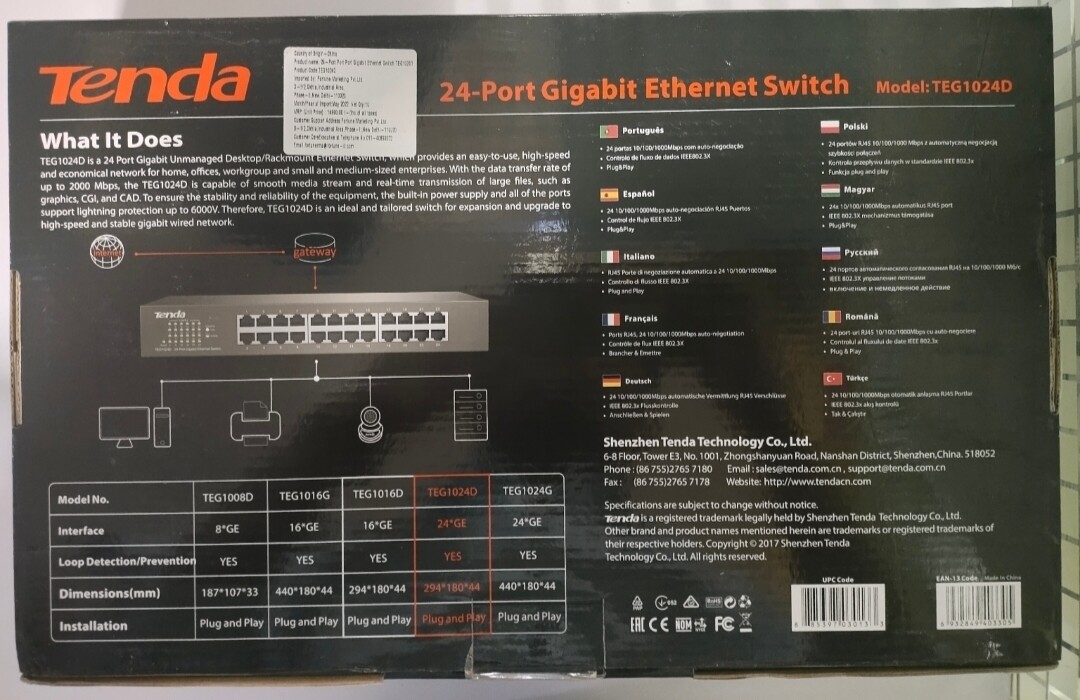

What it Does?
TEG1024D,Tenda 24-Port Gigabit Desktop/Rackmount Switch, adopts the most advanced Broadcom StrataConnect-series chip of high integrity, has 24 10/100/1000M Ethernet ports and is compatible with IEEE 802.3az standard. Special high reliability design supports for protecting the power adapter and ports from inducive lightning up to 6KV voltage; all provides an economical solution for network accessing layer with small-middle sized enterpries, schools and hotels, etc.

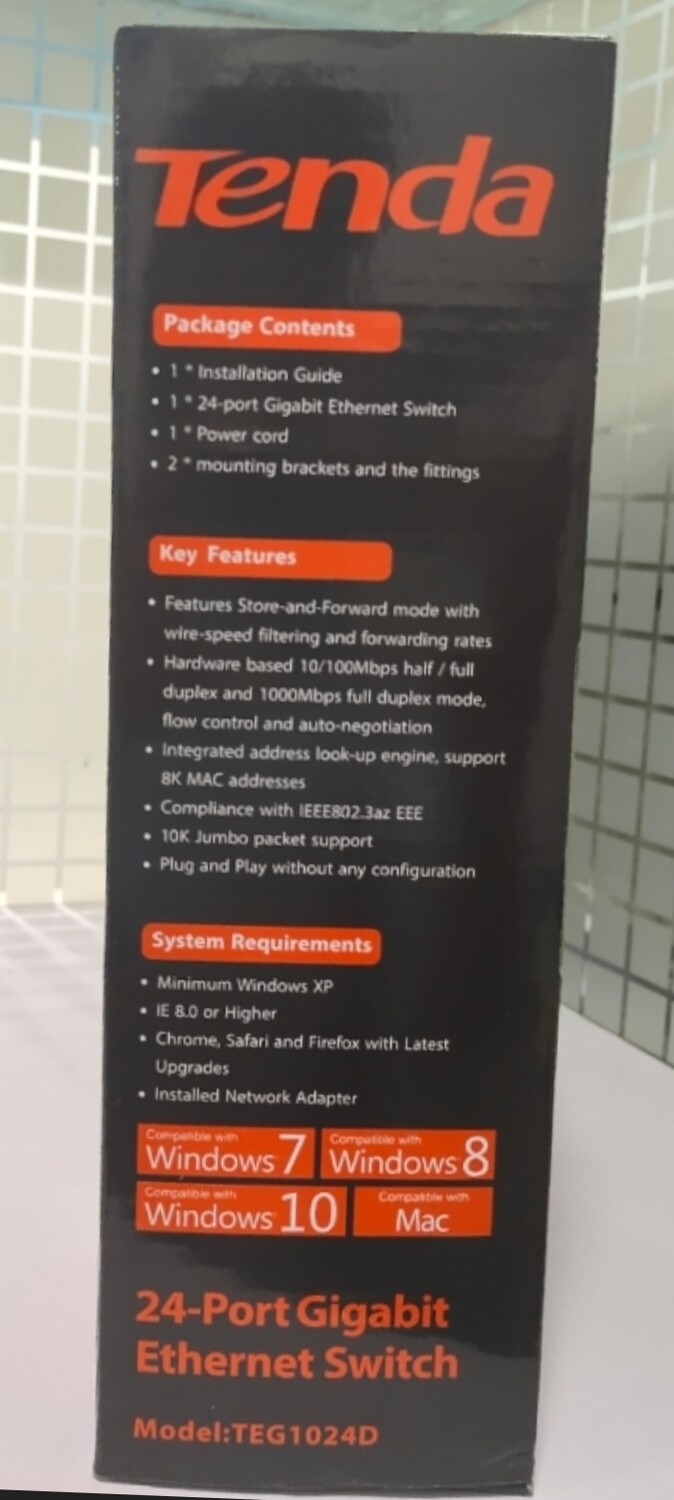

Features
- Compatible with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x and IEEE802.3ab 1000Base-T standards.
- Allows and assures packets to be forwarded by all ports at full wire speed.
- 24 10/100M/1000M auto-negotiated RJ45 ports.
- Supports MDI/MDIX auto-negotiation.
- Supports storage and forwarding.
- With inducive lightening protection towards the power adapter and ports, and enterprise-level design of 1U(thickness)-steel casing and 13-inch rack; With the help of hangers, it can be installed on the standard rack.
-

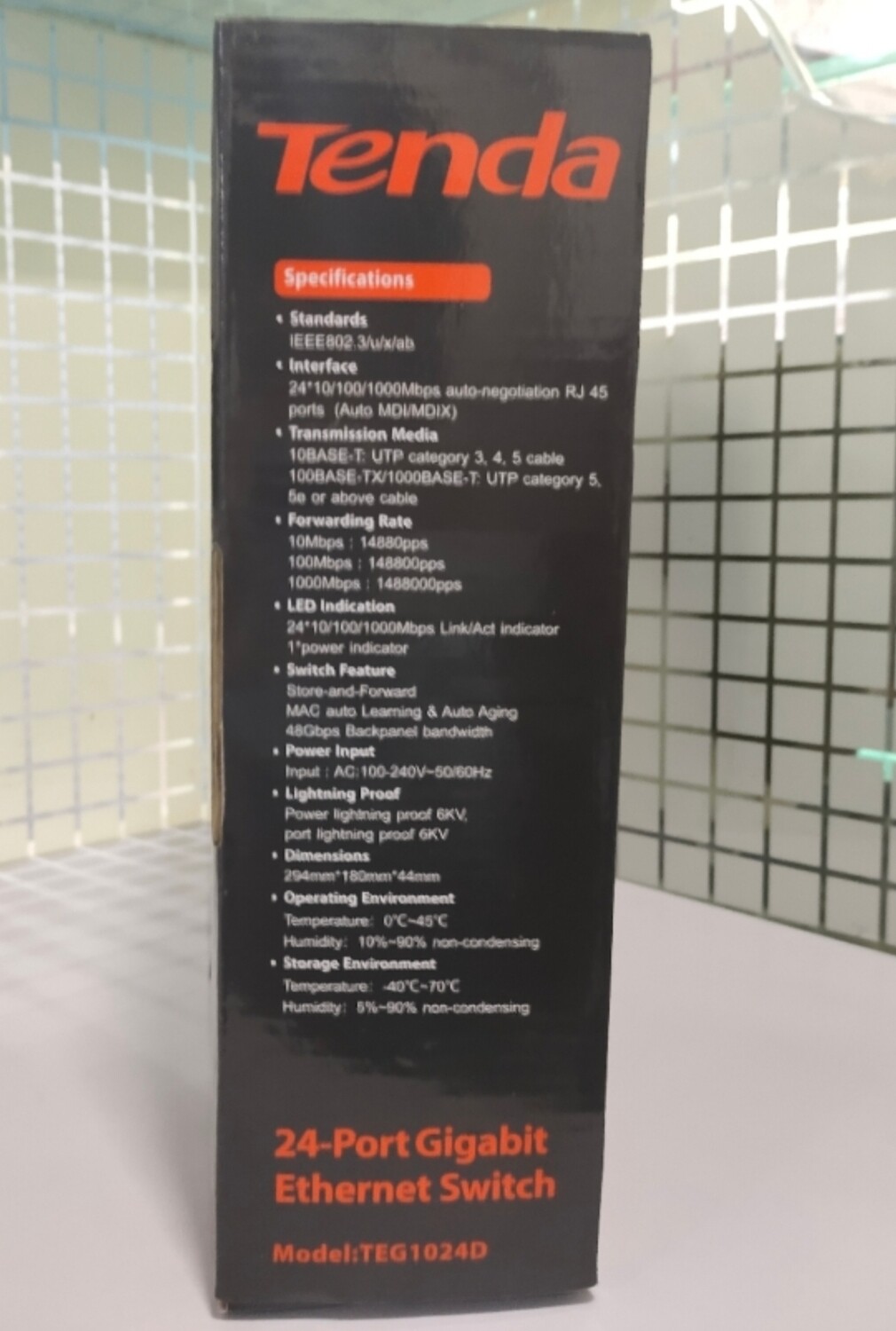

Network standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3abLED Indicator1* Power,24* Link/ActInterfaces24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)Transmission mediaRecommended: CAT5/5e UTP or betterFan quantityN/ADimension294.0mmx178.0mmx44.0mmMaterialMetalLevel of protectionLightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kVForwarding modeStore-and-forwardSwitch capacity48GbpsPacket forwarding rate35.60MppsBuffer2MbMAC address table8KJombo frameN/APowerInput: 100-240V AC 50/60HzPower consumptionMax:<12WMountingDesktop mounting: support
Wall mounting: support
Rack mounting : supportEnvironmentOperating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensingCertificationCE, FCC, RoHSSoftwareProtocolsCDMA/CDMAC address learningAuto-Learning and Auto-AgingFuntionsplug-and-play
