16-Port 10/100Mbps Desktop SwitchTL-SF1016D

• 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves the power up to 80%
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop or wall-mounting design
• Plug and play, no configuration required

• What This Product Does

  The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 80%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


  High Performance

  TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

  TP-LINK Green Technology

  This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

  Easy to Use

  The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

• HARDWARE FEATURES
  Interface	1610/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
  Fan Quantity	Fanless
  Power Consumption	Maximum: 3.1W (220V/50Hz)
  External Power Supply	100~240VAC, 50/60Hz
  Mac Address Table	1K
  Dimensions ( W x D x H )	7.9*5.6*1.6 in. (200*142*40 mm)

  SOFTWARE FEATURES
  Transfer Method	Store and Forward
  Advanced Functions	Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure

  OTHERS
  Certification	FCC, CE, RoHs

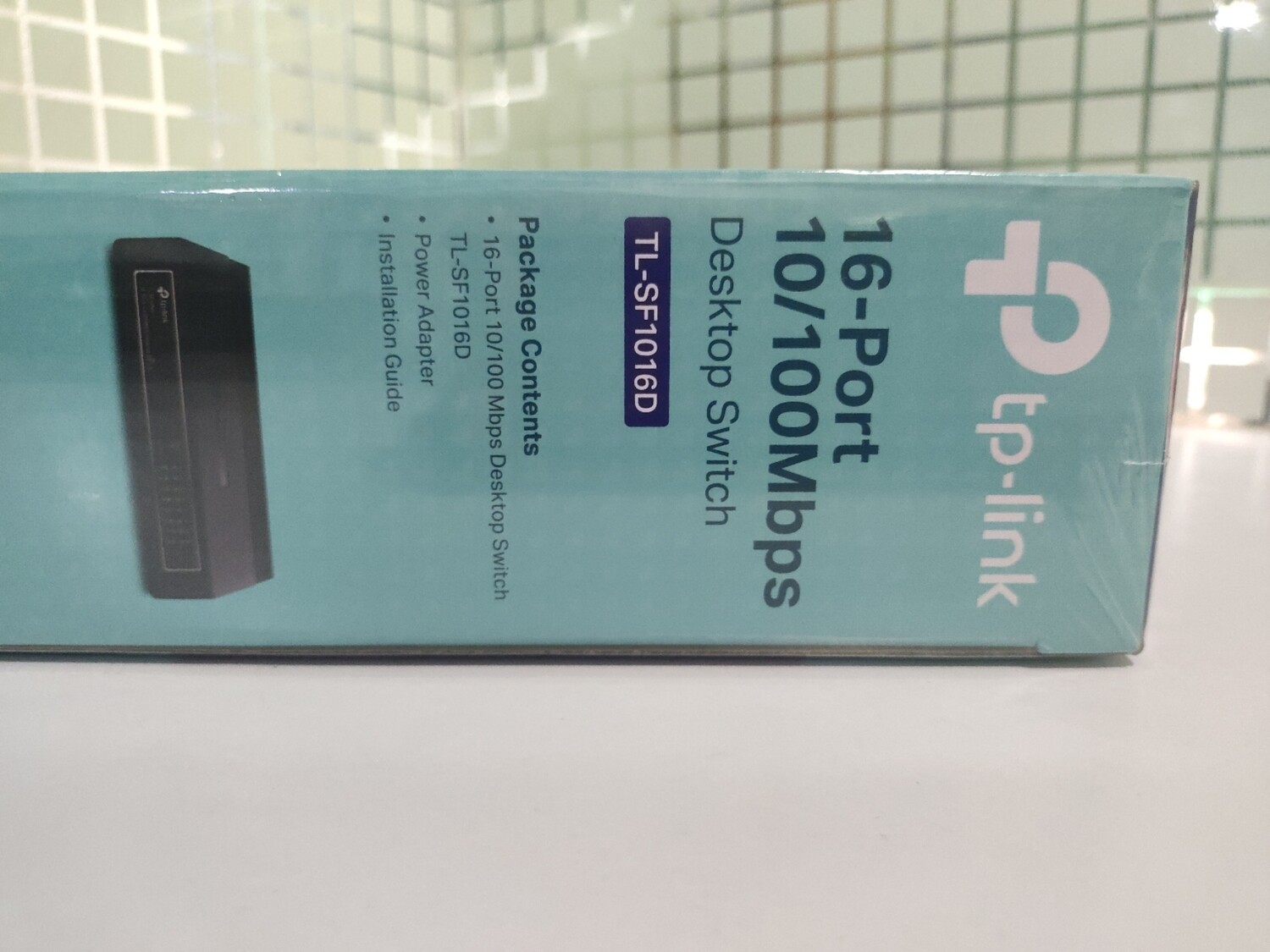

  Package Contents	16-Port 10/10Mbps Desktop Switch TL-SF1016D Power Adapter User Guide
  System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
  Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
