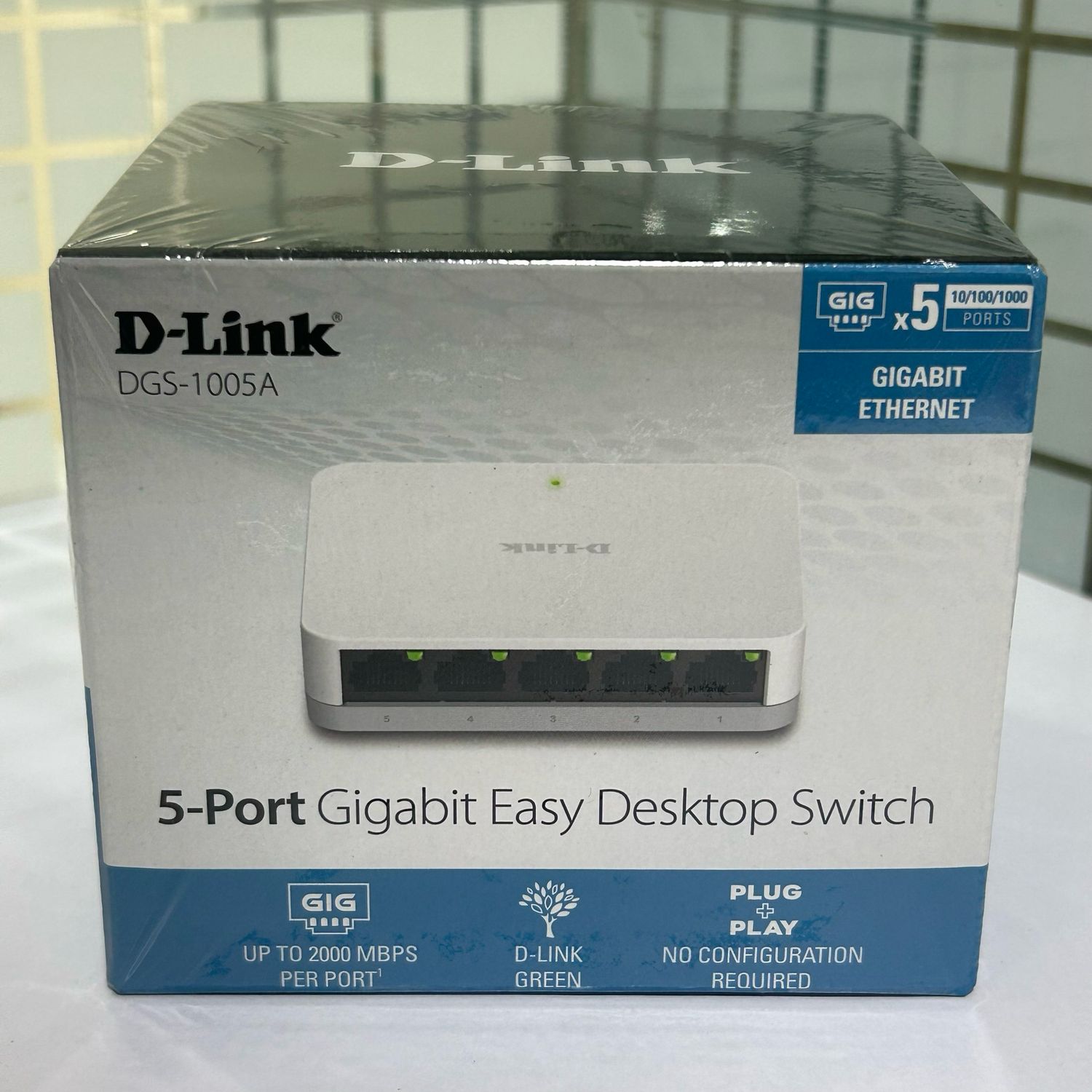

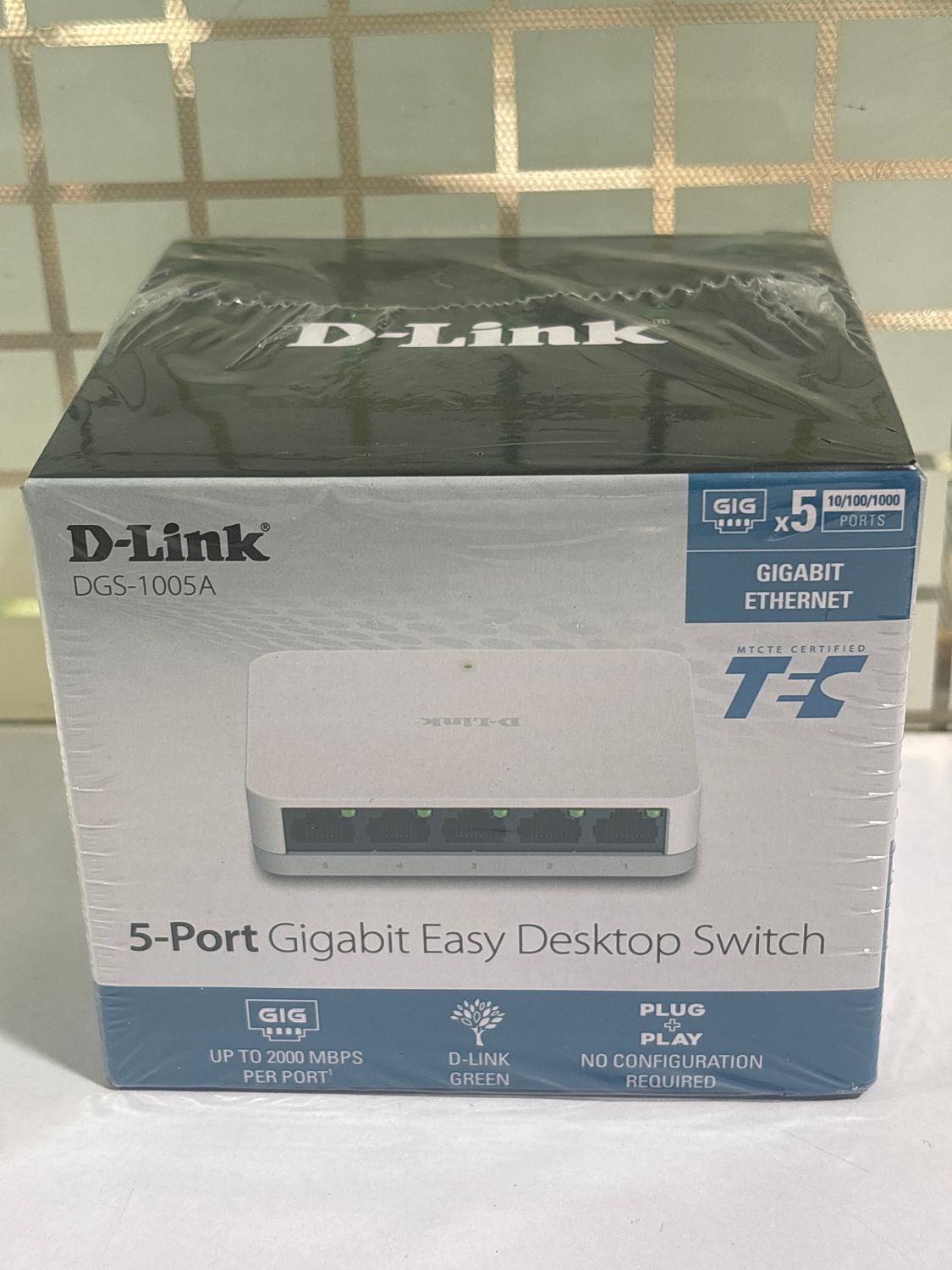

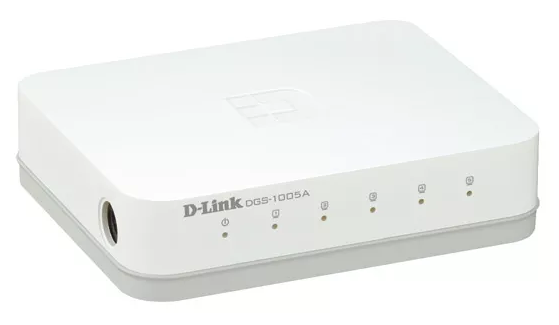

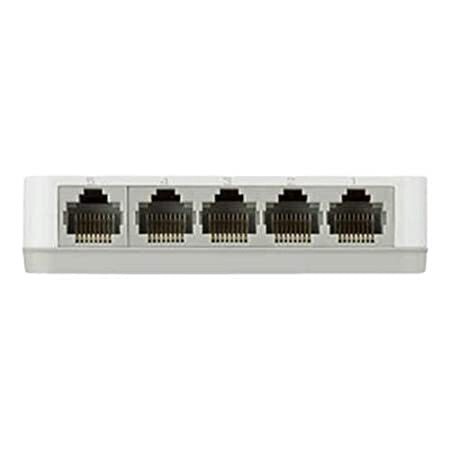

5-Port Gigabit Unmanaged Desktop Switch
DGS-1005A
Light, compact design fits into any decor
- 5 high-speed Gigabit ports
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
Fast and Reliable Networking
The D-Link 5-Port Gigabit Unmanaged Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.
Conserve Energy
The 5-Port Gigabit Unmanaged Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
Environmentally Friendly
The 5-Port Gigabit Unmanaged Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
Specifications
| 1000Base-T Interface | 5 |
|---|---|
| Auto MDI/MDIX | Yes |
| Switching Capacity | 10 Gbps |
| Max. Packet Forwarding Rate | 7.44 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimension | 91 x 73 x 22 mm |
| Weight | 0.08 kgs |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 10 ~ 70 °C |
| Operation Humidity | 0% ~ 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 3.90 W |
| Standby Power Consumption | 0.6W |
| Maximum Heat Dissipation | 13.299 BTU/h |
| MTBF | 1,152,221 hours |
| Power Input | AC：100 ~ 240 V |
| Flash Memory Size | 64KBytes |
| Packet Buffer Size | 128KBytes |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| MAC Address Table Size | 4K |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 9,720 Bytes |
| Surge/Lightning Protection (AC Power Inet) | 1kV |
| Surge/Lightning Protection (All Ethernet Ports) | 1kV |
| Air Discharge | 8kV |
