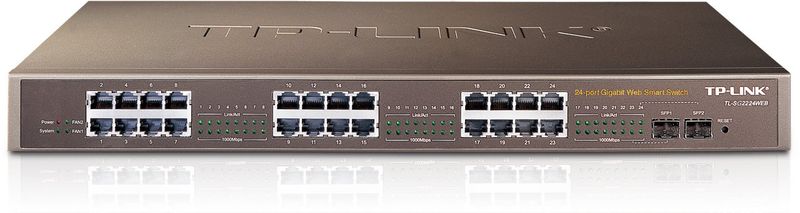

TP-Link 24-Port 10/100/1000Mbps Web Smart Switch, SG2224WEB
Call or WhatsApp us if you have any questions.
UPC: 0845973020460
Brand: TP Link
Volumetric Weight: 4.60 kg
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.1p |
| Interface | 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) 2 Gigabit SFP ports (shared with port 23, 24) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Button | Reset Button |
| External Power Supply | Input: 220~240VAC, 50/60Hz Output: 5.0VDC/10A |
| Backup Bandwidth | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| Mac Address Table | 8k |
| Buffer Size | 2Mb |
| Jumbo Frame | 10240Byte |
| Dimensions ( W x D x H ) | 17.3*10.2*1.7 in. (440*260*44 mm) |
| SOFTWARE FEATURES | |
|---|---|
| VLAN | Port Based VLAN, 802.1Q Tag-VLAN, MTU VLAN |
| Access Control List | Based on Port, Based on MAC |
| Security | Port Security, Static MAC Address Binding, Dynamic MAC Address Binding |
| Management | Web (Http) Management, Remote Management |
| Basic Function | MAC Address Auto-Learning and Auto-aging, Storm Control (Broadcast, Multicast, Unknown unicast), Port Mirroring |
| Transfer Method | Store-and-Forward |
| Priority | Port based Priority, IEEE 802.1p based Priority: 4 Queues, IP DSCP based Priority |
| Link Aggregation | Port Trunking |
| System Function | Fixed IP Address Setting, VCT (visual cable test ), Port Flow Statistics, TFTP Upgrade |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | Web Smart Switch; Power Cord; Rackmount KIT; User Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
- 24 10/100/1000Mbps Ports, and 2 combo SFP slots
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Supports Store and Forward switching to maximize network performance while minimizing the propagation of bad network packets
- Quick and easy setup with web-based management
- Supports Port-Based VLANs, IEEE 802.1Q Tag VLANs and MTU VLAN
- Supports Port Trunking, 6 Trunking groups, up to 4 members each group
- Supports the configuration function of Port Security, Broadcast Storm Control, Port Mirroring
- Supports Static MAC address Binding
- Supports Virtual Cable Test
- Supports Static Port Priority and IEEE 802.1p Class of Service (CoS) with 4-level priority queuing
- Supports firmware upgrade, configuration backed up and restored
- 19-inch Rack-mountable steel case
