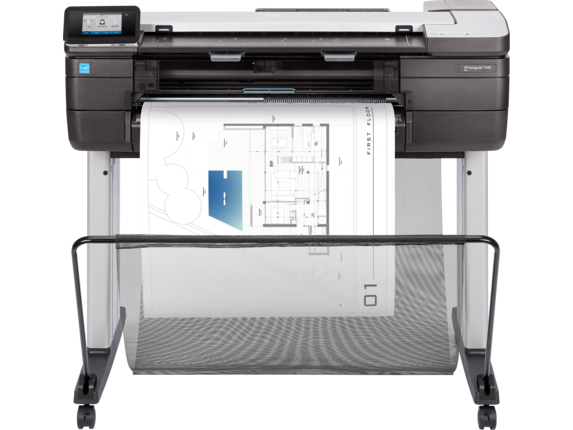

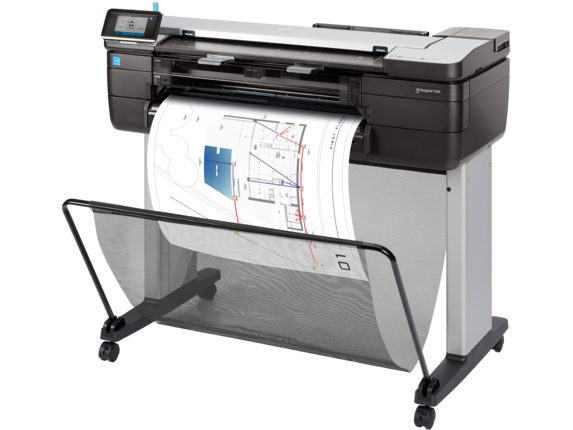

HP DesignJet T830 24-in Multifunction Plotter Printer
Product specifications
Product information
Functions
Print, copy, scan
Mechanical print time, line drawing, economode, plain
81 D prints per hour
Scan speed, maximum
Up to 1.5 in/sec (color, 200 dpi); up to 4.5 in/sec (grayscale, 200 dpi)
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (cyan, magenta, yellow, matte black)
Dynamic security
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
Compatible ink types
Dye-based (C, M, Y); pigment-based (mK)
Print languages
TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL, URF
Mobile Printing Capability
Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.
Connectivity, standard
Gigabit Ethernet (1000Base-T); Wi-Fi 802.11b/g/n; Wi-Fi Direct; USB Type-A host port
Connectivity, optional
HP USB 3.0 to Gigabit LAN Adapter
Network ready
Standard
Memory, standard
1 GB
Memory, maximum
1 GB
Hard disk
None
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.2 in
Guaranteed minimum line width
0.0028 in (ISO/IEC 13660:2001(E))
Line accuracy
±0.1%
Maximum optical density (black)
8 L* min/2.10 D
Finished output handling
Sheet feed; roll feed; input tray; media bin; automatic cutter
Media sizes supported
Input tray: A4, A3; manual feed: A2, A1
Media sizes, custom
Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 24 x 74.7 in; roll: 11 to 24 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard
8.3 to 24-in wide sheets; 11 to 24-in rolls
Roll external diameter
3.9 in
Media thickness
Up to 11.8 mil
Power
Input voltage: 100-240 V, 50/60 Hz, 1.2 A max
Power consumption
35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Operating temperature range
41 to 104ºF
Dimensions (W X D X H)
43.2 x 24.8 x 45.5 in
Weight
112.4 lb
Package weight
154.3 lb
What's in the box
HP DesignJet T830 24-in MFP; printhead; ink cartridges; printer stand; spindle; quick reference guide; setup poster; power cord; refeed preventers
Warranty
One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
Software included
HP Click, HP DesignJet Utility for Mac and Windows
Immediately update all your partners on project review results with the most compact large-format MFP.[1] Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
