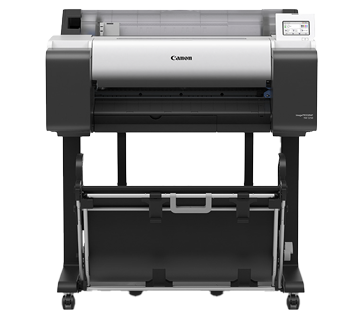

imagePROGRAF TM-5250
Limitless Creativity Made Possible
The new 609.6mm (24in) imagePROGRAF TM-5250 large format printer raises the standard for print excellence through greater business printing performance for creating photo images, posters and CAD drawings. Express limitless creativity through vivid, quality prints thanks to improved ink capabilities.
- 5-colour LUCIA TD pigment ink
- 609.6mm (24in)
- Fast printing speed with L-COA PRO II
- Borderless printing
- Single-function printer
Printer
|
Printer Type |
5-Colour 609.6mm (24in) |
|
Number of Nozzles |
15,360 nozzles |
|
Maximum Print Resolution |
2,400 x 1,200 dpi |
|
Nozzle Pitch |
1,200 dpi (2 lines) |
|
Line Accuracy*1 |
± 0.1% or less |
|
Ink Capacity |
Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y) |
|
Ink Type |
Pigment Ink |
|
Printer Language |
SG Raster (Swift Graphic Raster) |
|
Printing Solutions |
Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server |
|
Management Solutions |
Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox |
|
Standard Interfaces (Built-in) |
USB B Port: |
|
Standard Memory |
2 GB |
|
Hard Disk |
- |
|
Display |
LCD (109.22mm (4.3in) TFT colour) |
Print Speed*4
|
CAD Drawing (A0 Portrait, Fast Q5 mode) |
20s |
|
Poster (A0 Portrait, Standard mode) |
1 min 23s |
Media Handling
|
Media Feed and Output |
|
|
Roll Paper |
One Roll, Top Load, Front Output |
|
Cut Sheet |
Top Load, Front Output |
|
Media Width (Roll/Cut Sheet) |
Roll Width: 203.2 ~ 610 mm; |
|
Media Thickness (Roll/Cut Sheet) |
0.07 ~ 0.8 mm |
|
Media Core Size |
50.8mm (2in) / 76.2mm (3in) core |
|
Minimum Printable Length |
|
|
Roll Paper |
203.2 mm |
|
Cut Sheet |
279.4 mm |
|
Maximum Printable Length |
|
|
Roll Paper |
18 m*5 |
|
Cut Sheet |
1,600 mm |
|
Maximum Outer Roll Diameter |
150 mm or less |
|
Borderless Printing |
Supported for roll paper |
|
Margins (Recommended Area) |
|
|
Roll Paper (Top, Bottom, Sides) |
20 mm, 3 mm, 3 mm |
|
Cut Sheet (Top, Bottom, Sides) |
20 mm, 20 mm, 3 mm |
|
Margins (Printable Area) |
|
|
Roll Paper (Top, Bottom, Sides) |
3 mm, 3 mm, 3 mm |
|
Cut Sheet (Top, Bottom, Sides) |
3 mm, 20 mm, 3 mm |
Dimensions & Weight
|
Dimensions (W x D x H) |
|
|
Main Unit |
978 x 748 x 439 mm (Operation panel is not tilt up) |
|
Main Unit + Printer Stand + Basket (SD-26) |
978 x 885 x 1,060 mm (Basket Opened) |
|
Weight *6 |
|
|
Main Unit |
42 kg |
|
Main Unit + Printer Stand + Basket (SD-26) |
55 kg |
|
Packaged Dimensions (W x D x H) |
|
|
Printer (Main unit + Pallet) |
1,152 x 913 x 679 mm |
|
Stand + Basket (SD-26) |
1,058 x 826 x 270 mm |
|
Printer (Main unit with stand and pallet) (SD-26) |
1,152 x 913 x 946 mm |
|
Packaged Weight *6 |
|
|
Printer (Main unit + Pallet) |
73 kg |
|
Stand + Basket (SD-26) |
22 kg |
|
Printer (Main unit with stand and pallet) (SD-26) |
96 kg |
Power & Operating Requirements
|
Power Supply |
AC 100 - 240 V, 50 - 60 Hz |
|
Power Consumption |
|
|
Printing*7 |
62 W or less |
|
Sleep Mode*7 |
1.6 W or less |
|
Power Off |
0.1 W or less |
|
Operating Environment |
|
|
Temperature |
15 ～ 30 °C |
|
Humidity |
10 ～ 80 % RH (no dew condensation) |
|
Acoustic Sound |
|
|
Acoustic Power*8 |
Operation: Approx. 6.2 Bels |
|
Acoustic Pressure*8 |
Operation: Approx. 41 dB (A) |
Accessories
|
Printer Stand (Optional) |
SD-26 |
|
50.8mm / 76.2mm Roll Holder |
RH2-28 |
|
Card Reader Interface for uniFLOW |
RA-02 |
|
Cutter Blade |
CT-08 |
Consumables
|
Ink Tank |
Magenta: PFI-8121 (130 ml)/PFI-8321 (300 ml) |
|
Print Head |
PF-06 |
|
Maintenance Cartridge |
MC-31 |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
