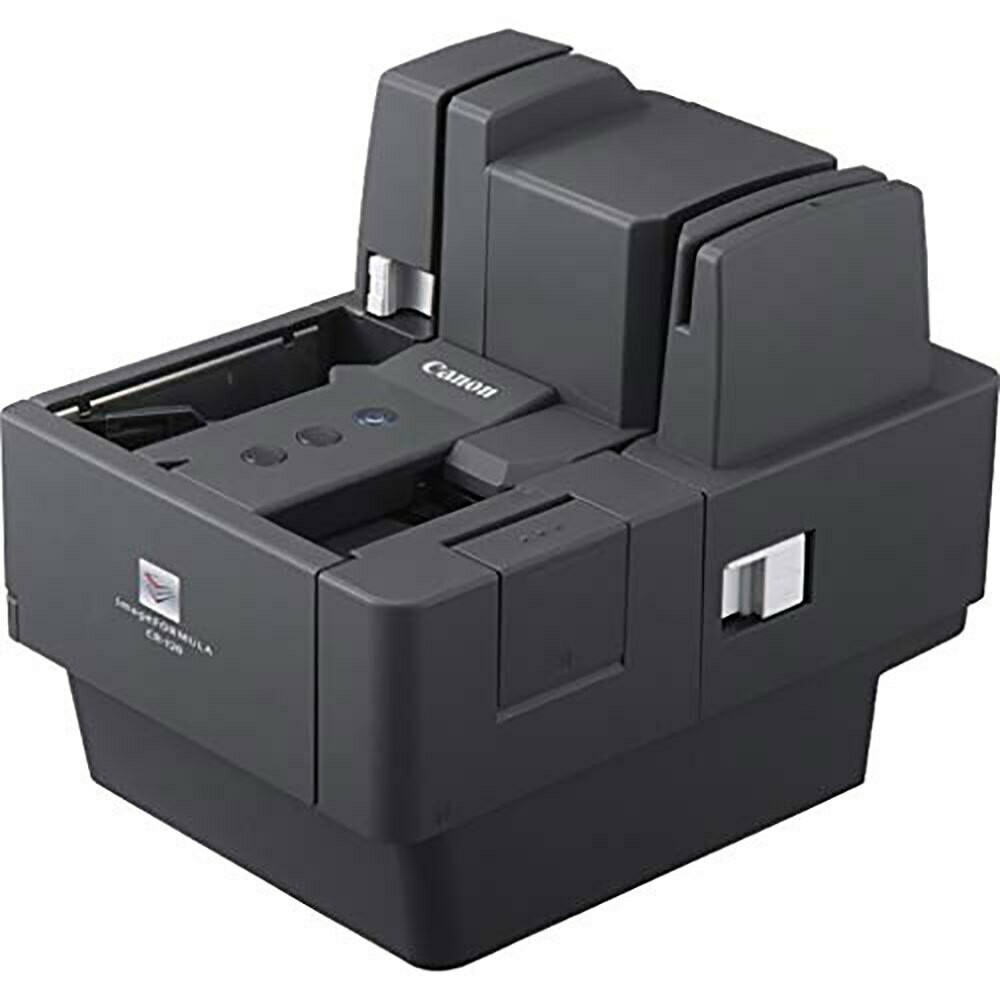

Canon CR-120 Sheetfed type scanner
Product description Canon CR-120
Powerful multi-function cheque scanner with card-scanning capabilities:
- This high-performance cheque scanner delivers quality scanning at remarkable speed. It offers card scanning function that facilitates easy ID authentication especially at front counter as well as backend process environment.
- Feed capacity: 150 sheets
- Scanning speed: up to 120 cheques per min
- UV scanning function
- Eject Pocket capacity: 200 sheets
Features:
Faster Scanning for Enhance Productivity:
- A small device loaded with features adopted from high-end devices, CR-120 performs high-speed scanning at 120 cheques per minute
Card Scanning Capabilities:
- Cleverly combines a dedicated ID card feeder and an advanced color imaging sensor, CR-120 features a seamless authentication process at teller window
Robust Feeding Mechanism:
- Prevents missed scans and ensures reliable cheque separation
Built-in 5 line imprinter:
- Retrieve 5 lines of 60-character endorsement information as well as superior bitmap images simultaneously.
UV Scanning:
- Equipped with high quality UV sensors which can scan anti-fraud patterns that are printed on cheques with UV ink, CR-120 reinforces security with efficiency as normal and UV image can be processed concurrently.
Enhanced MICR reading:
- Highly accurate MICR (Magnetic Ink Character Recognition) feature enhances character recognition, thereby reducing scanning errors. Processing speed is increased.
Specifications:
- Type: Sheetfed type cheque scanner
- Document feeding: Automatic / Non-separation
Document sizes:
- Width: 60 - 108mm
- Length: 90 - 245mm
Document thickness and weight:
- 0.08 - 0.20mm
- 64 - 157g/m2
Feeding capacity:
- 15mm stack or 150 sheets (Output: 200 sheets)
Scanning element:
- CMOS CIS
Light source:
- RGB LED (CR-120 UV: UV LED + RGB LED)
Scanning side:
- Simple / Duplex
Scanning modes:
- Black and white, Fine Text Filtering, Error Diffusion
- Grayscale: 256-level, 16-level
- Card Scan: 24-bit Color
Scanning resolutions:
- Output: 100 x 100dpi, 120 x 120dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi
Scan a card:
- Output: 600 x 600dpi
Scanning speeds:
- CR-120: 120cpm*1
MICR / OCR:
- MICR: E13B / CMC-7
- OCR: E13B / OCR-A / OCR-B / Universal Character
OS:
- Windows Vista 32 bit & 64 bit Edition (SP2 or later)
- Windows 7 32 bit & 64 bit Edition (SP1 or later)
- Windows 8.1 32 bit & 64 bit Edition
- Windows 10 32 bit & 64 bit Edition
- Windows Server 2008R2
- Windows Server 2012R2
Interface:
- Hi-Speed USB 2.0 (Type-A x 1, Type B x 1)
