Epson Workforce DS-970 Sheetfed Scanner
Epson DS-970 Color Duplex Workgroup Document Scanner
Ultra fast, reliable, robust desktop scanner for high-volume workgroups.

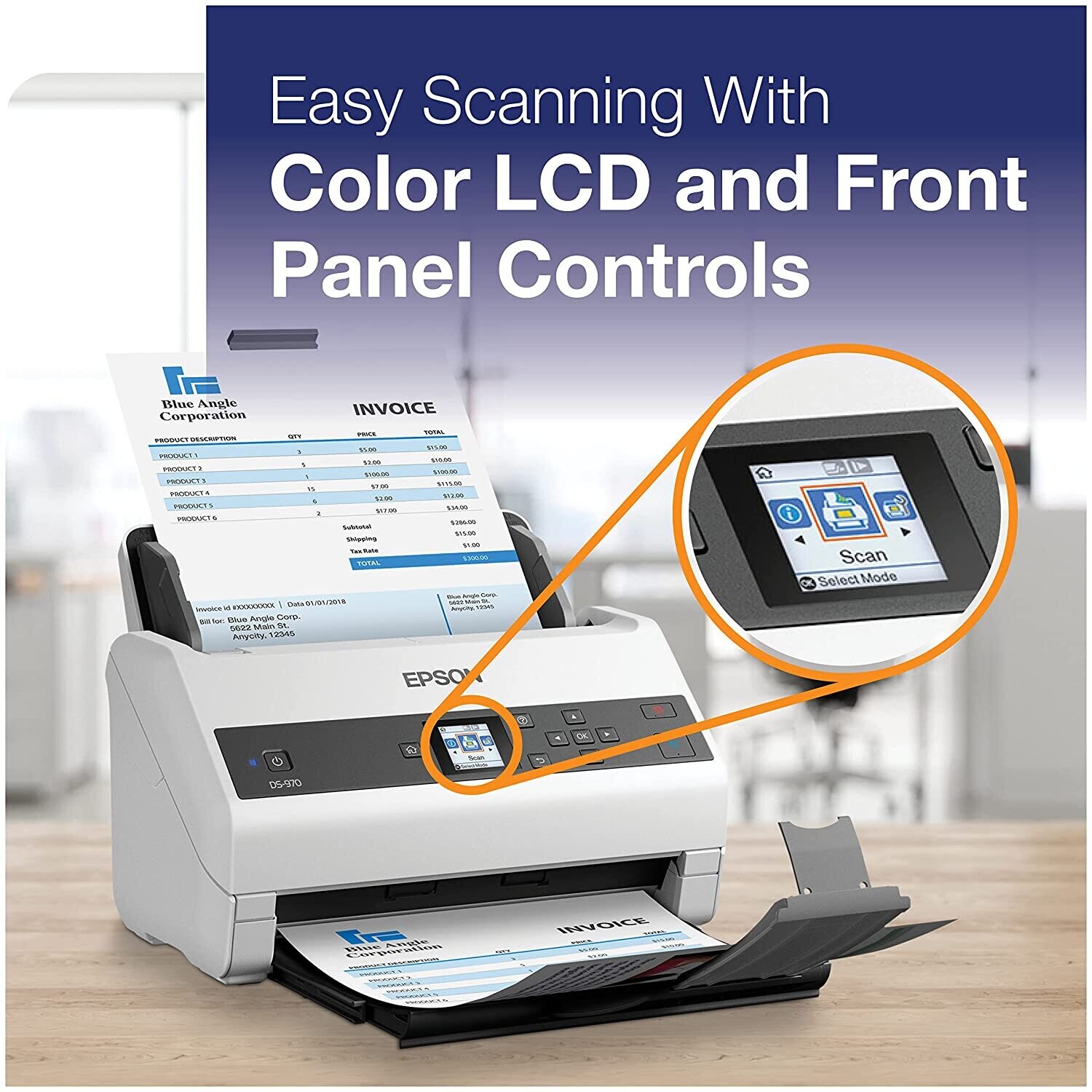

Get world-class performance for your busy workgroup with the ultra fast, reliable and robust DS-970 document scanner. Designed for high-volume environments where speed and dependability are critical, the DS-970 offers lightning-fast speeds up to 85 ppm/170 ipm1, plus a 100-page ADF and peak daily duty cycle of up to 9,000 sheets2. And, it’s all backed by an industry-leading 3-year limited warranty, with an Advance Exchange program featuring free Next-Business-Day shipping3. The included TWAIN and ISIS® drivers ensure seamless integration with existing software, while a convenient, color LCD display and buttons make navigating scan jobs and selecting modes easy.
- Model: B11B251201

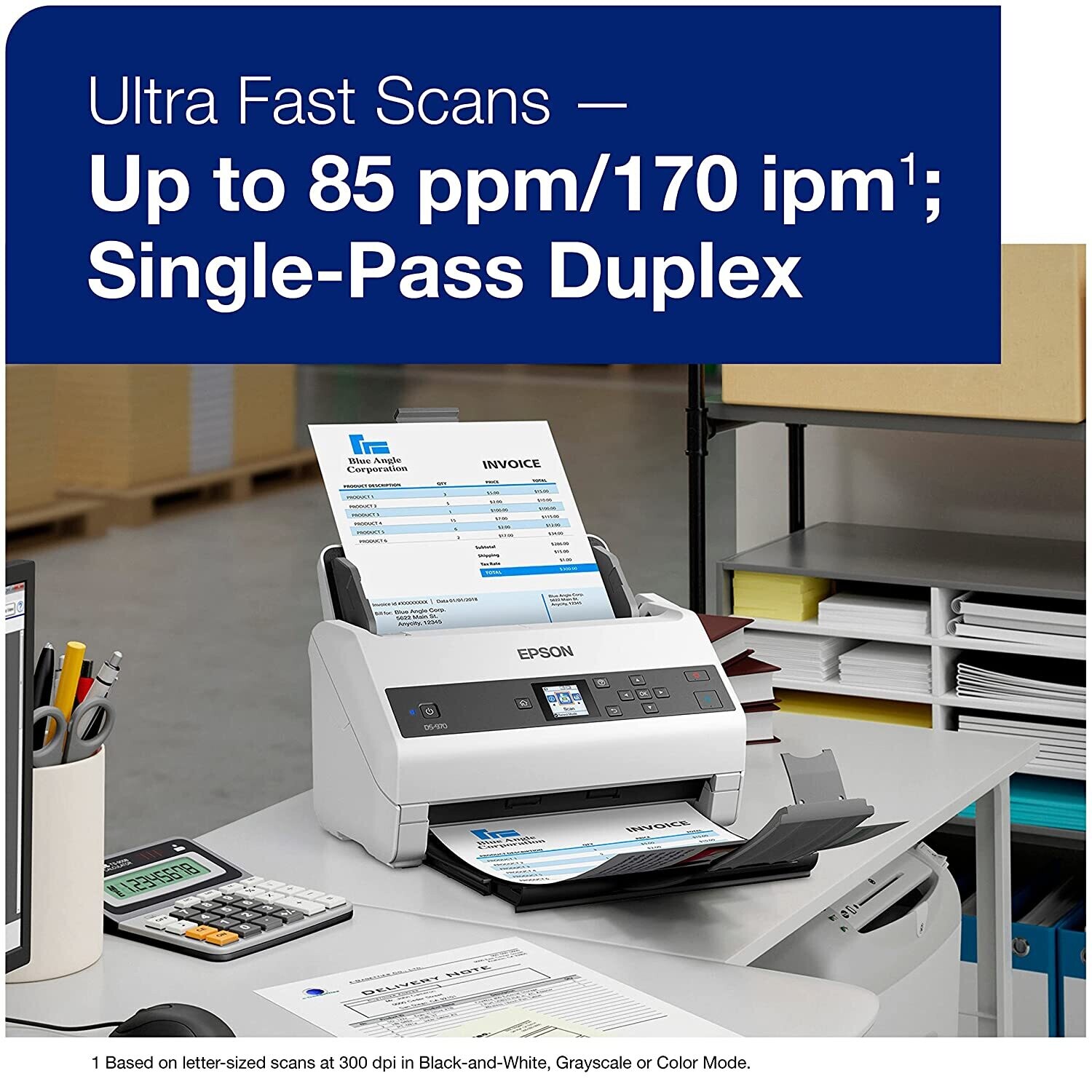

up to 85 ppm/170 ipm1; single-pass duplex scanning
scan mixed stacks of business and ID cards, single sheets, long documents, and folded pages up to 11" x 17" (carrier sheet required for folded oversized pages, sold separately)
- Advanced paper feed technology — includes a Slow Speed Mode for delicate sheets; Double-feed Detection and Paper Protection prevent misfeeds
- Powerful software with OCR — use the included Epson Document Capture software to create searchable PDFs, or scan to online storage accounts like Evernote®, SharePoint® and Google Drive™4
- Compact, space-saving footprint — powerful and compact desktop scanner easily fits within virtually any workspace
- Expanded versatility — choose from the optional Network Interface Unit to share the scanner across a network or optional Flatbed Dock to connect to a compatible Epson photo scanner for scanning photos, passports, or bound materials5 (both sold separately)
Eco Features
- RoHS compliant
- Recyclable product6
- Epson America, Inc. is a SmartWaySM Transport Partner7
Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment
What's In The Box:
- WorkForce DS-970 Color Document Scanner
- Start Here poster
- SuperSpeed USB 3.0 cable
- AC adapter with power cable
Specifications Scanner:
Scanner Type:Sheet-fed, one-pass duplex color scannerSensor:Color CISOptical Resolution:600 dpiMaximum Resolution:1200 dpiColor and Grayscale Scan Mode (Bit Depth):30-bit internal/24-bit externalMonochrome Bit Depth:Input 10-bit/ Output 8-bitOutput Resolution:50 to 1200 dpiEffective Pixels:5100 x 9300 pixelsLight Source:Three-color RGB LEDScanning Speed:85 ppm/170 ipm: 200 and 300 dpi Black-and-White, Color, Gray; 16 ppm/32 ipm: 400 and 600 dpi Black-and-White, Gray, Color1
Automatic Document Feeder:
Capacity:100 sheetsDocument Sizes:Minimum: 2" x 2"; Maximum: 8.5" x 240" at 200 dpi; Maximum: 8.5" x 215" at 300 dpiPaper Weight:27 − 413 g/m2Card Thickness: Maximum: less than 1.24 mm with embossReliability:Peak daily duty cycle2: 9,000 sheets; Consumables (roller assembly kit): 200,000 pages
General:
Temperature:41° to 95° F (5° to 35° C)Dimensions:11.6" x 8.3" x 8.5" (W x D x H)Weight:7.9 lbSecurity:Kensington® type
Scan Features:
Other:
- Rigid plastic ID card scanning (including embossed cards)
- Business card scanning
- Oversized folded document scanning with optional carrier sheet
- Ultrasonic Double-feed Detection
- unit security lock (Kensington type)
Connectivity:
Minimum System Requirements:Windows 10, Windows 8/8.1, Windows 7
Mac OS X® 10.6.x – macOS® 10.14.x
Software requires Internet connection for download and installationStandard Connectivity:SuperSpeed USB 3.0
Optional Network Interface Unit (RJ-45, 10BaseT/100Base TX)
Scanner Details:
Included Software:
- Epson Scan 2
- Document Capture Pro
- EMC Captiva ISIS
- TWAIN and ISIS drivers
Power:
Power Consumption:
- Operation: 20 W
- Ready mode: 8.5 W
- Sleep mode: 1.4 W
- Off: 0.1 W
Output from AC Adapter: 24 V DC-Rated
Current: 2 A
Frequency: 50 – 60 Hz
