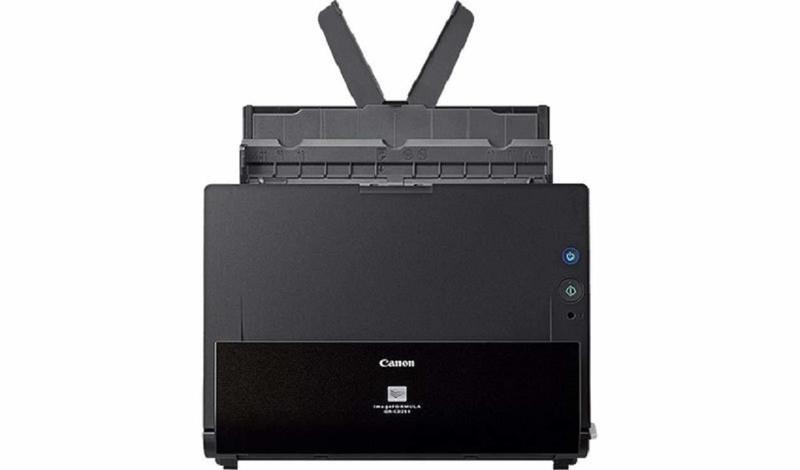

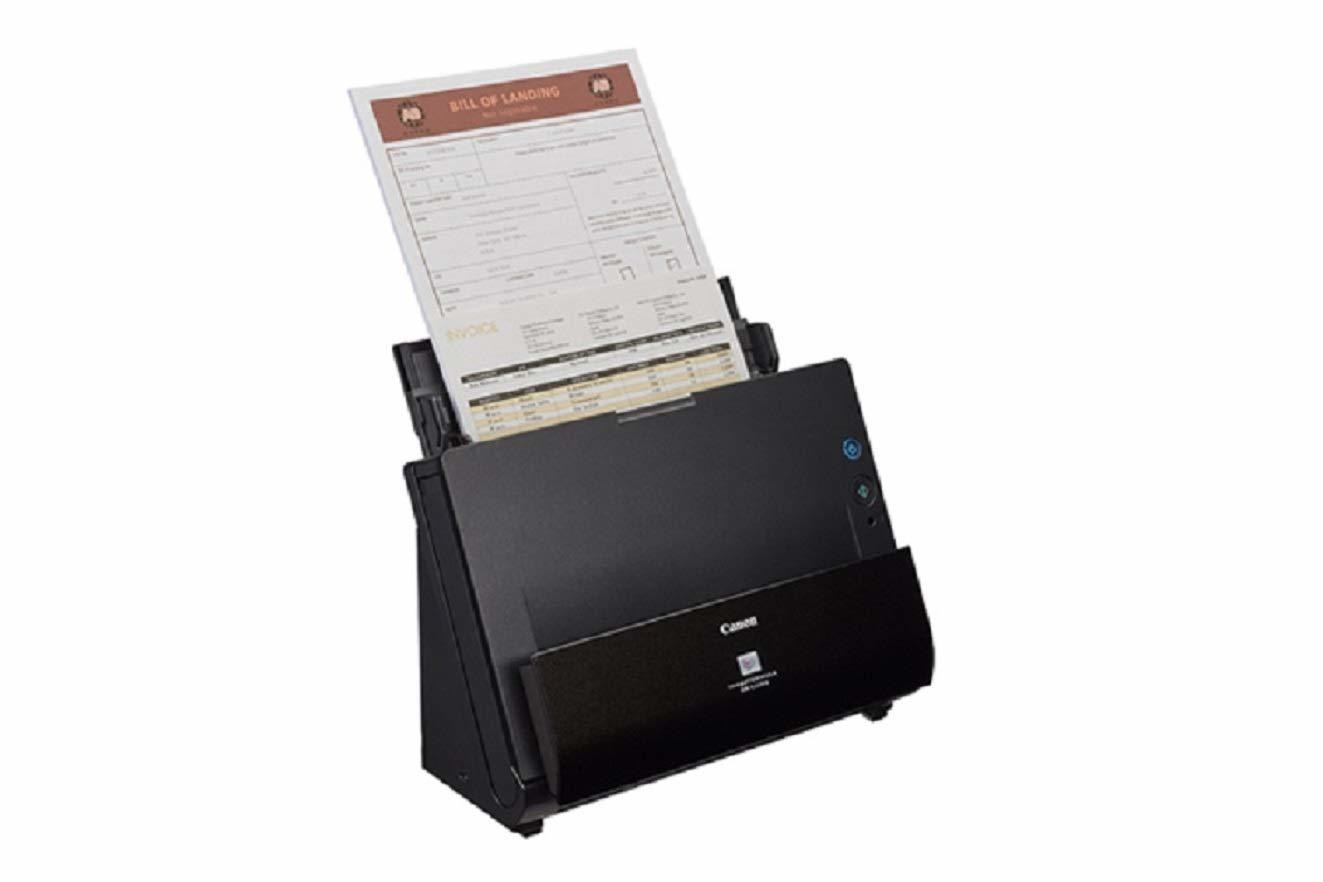

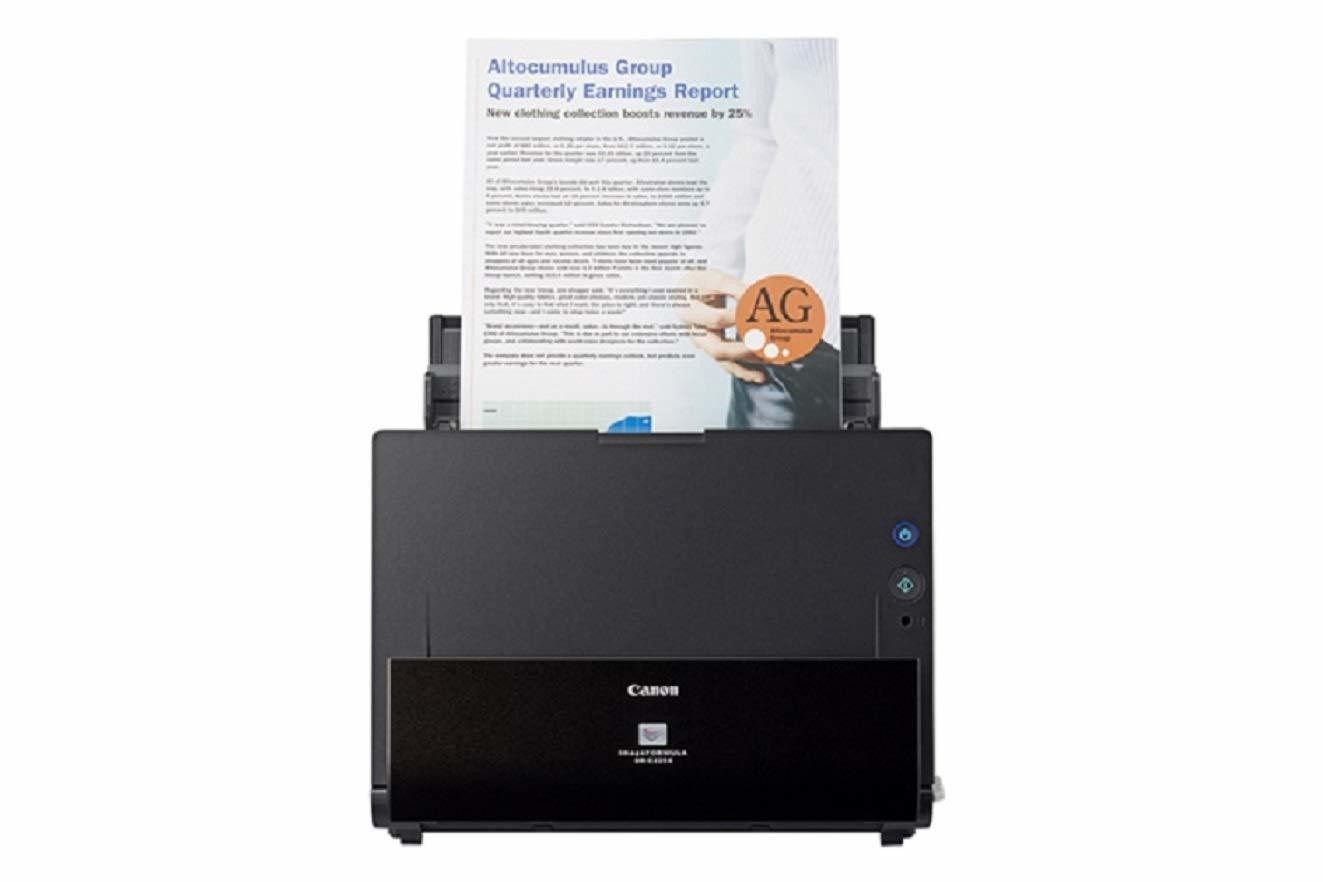

Sleek and slim, the DR-C225 II is made for tight spaces. With Capture On Touch software for even better usability, it's a true scanning solution
Sleek space-saving design
A perfect match for a small office desktop or department, a slimline profile ensures the DR-C225 II fits in the smallest space. With powerful Capture On Touch software and straightforward integration with cloud networks, it's the ultimate space-saver.
A compact fit for tight spaces
Save even more space with this ultra-slim scanner. The innovative J-Path design ensures a small desktop footprint with 'face up' document scanning for easy use.
Ultra-slim, ultra-fast
Enjoy speedy duplex scanning of up to 50 ipm at 300 dpi and colour speeds of up to 25 ppm. Ultrasonic Double Feed Detection also ensures reliable paper handling for fast scanning.
Outstanding operation
Capture On Touch software makes scanning simple. One-touch operation completes tricky tasks in seconds while Full Auto Mode intuitively selects the best settings.
Specifications
Automatic document feeder
Wireless scanning of up to 25 ppm
CaptureOnTouch software
Windows and Mac compatible
Includes eCopy PDF Pro Office
Cardiris
Double-sided scanning
Automatic Document Feeder
General product information
Type
Desktop Type Sheet Fed Scanner
Scanning sensor unit
CMOS CIS 1 Line Sensor
Optical resolution
600dpi
Light source
RGB LED
Scanning side
Simplex / Duplex / Folio / Skip Blank Page
Interface
High speed USB 2.0 (USB 3.0 compatible)
Dimensions (W x D x H)
Tray Closed : 300 (W) x 156 (D) x 220 (H)mm
Tray Opened: 300 (W) x 235 (D) x 339 (H)mm
Weight
Approx. 2.8kg
Power requirements
AC100 - 240V (50/60Hz)
Power Consumption
Scanning: 12.7W or less, Sleep mode: 1.8W or less, Power tuned off: 0.5W or less
Operating Environment
10 - 32.5 °C (50 - 90.5 °F), Humidity: 20 - 80% RH
Environmental compliance
RoHS and ENERGY STAR
Scanning specifications
Black and White
25ppm/50ipm
Colour
25ppm/50ipm
Output resolution
150dpi, 200dpi, 300dpi, 400dpi, 600dpi
Auto Resolution Setting
Colour Mode
Detect Automatically
Black and White
Error Diffusion
Advanced Text Enhancement I
Advanced Text Enhancement II (Windows only)
256-Level Grayscale
24-bit Colour
Daily duty cycle
Approx 1,500 scans/day
Special Features
Image Processing
Background Smoothing
Prevent Bleed Through/Remove Background
Erase Shadow
Colour Dropout (RGB)
Colour Enhancement (Red)
Moire Reduction
Double Feed Detection
Ultrasonic Sensor / By Length
Others
Automatic Page Size Detection
MultiStream
Prescan
Text orientation recognition
Deskew
Image Rotation
Job Setting
Bundled Software
Windows
ISIS /TWAIN Driver (Windows 2000/XP Pro/XP Home/Vista/7/8/10)
CaptureOnTouch
Nuance eCopy PDF Pro Office
CardIris
Plug-in: SharePoint, GoogleDocs, SugarSync, Dropbox, OneDrive
EMC Captiva Cloud Runtime controls
Mac
ISIS / TWAIN Driver
CaptureOnTouch
Plug-in: SharePoint, GoogleDocs, SugarSync, Dropbox, OneDrive
