From the manufacturer
Experience Wi-Fi Like Never Before
|
|
|
|
|
|---|---|---|---|
|
Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices |
2-in-1 Router and Access Point Modes Flexible and multifunctional, the Deco M4 includes a variety of features allowing it to serve as a router or access point. Just choose the mode for your actual network demands and experience the maximum wireless flexibility. |
Installing Deco M4 is fast and easy. Just unpack the system, download the Deco app and follow its onscreen directions. Manage your Wi-Fi at home or away in the Deco app, including seeing the connected devices, prioritizing your devices, setting up a guest network and more. Pair with Alexa to control Deco M4 with simple voice commands. Enjoy the convenient life. |
Simple, intuitive parental controls make it easy to keep your children safe while they’re online. |
Wi-Fi Dead-Zone Killer
|
|
|
|
|---|---|---|
|
Deco M4 is the simplest way to a strong Wi-Fi signal in every corner of your home up to 2,800 square feet (2-pack). |
Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. |
Want more coverage? Simply add another Deco. |
|
|
|
|
|---|---|---|
Seamless Roaming with One Wi-Fi NameTP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience |
No More BufferingNetwork speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices |
All Decos Work TogetherDeco M4 is compatible with every other Deco model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos. |
Product information
Size name:1-Pack AC1200-Up to 2000 sq. feet | Pattern name:Deco M4Technical Details
| Brand | TP-Link |
|---|---|
| Manufacturer | TP-Link Technologies Co.,Ltd, TP-Link Technologies Co., Ltd, South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P.R. China |
| Model | DECO M4(1pack) |
| Model Name | Deco M4(1-Pack) |
| Model Year | 2018 |
| Product Dimensions | 9.07 x 9.07 x 19 cm; 400 Grams |
| Item model number | DECO M4(1pack) |
| Hardware Interface | Ethernet |
| Mounting Hardware | 1 Deco unit |
| Number Of Items | 1 |
| Voltage | 12 Volts |
| Batteries Included | No |
| Batteries Required | No |
| Data Transfer Rate | 1200 Megabits Per Second |
| Wireless Type | 802.11n, 802.11b, 802.11a, 802.11g |
| Number of Ports | 2 |
| Connector Type | Default_no_selection_value |
| Supports Bluetooth Technology | No |
| Manufacturer | TP-Link Technologies Co.,Ltd |
| Country of Origin | China |
| Item Weight | 399 g |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
|
| WiFi Capacity | Medium
Dual-Band Distribute devices to different bands for optimal performance
|
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Qualcomm CPU |
| Ethernet Ports | 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| Power | 12 V ⎓ 1.5 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA-Personal WPA2-Personal |
| Network Security | SPI Firewall Access Control |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.6 × 3.6 × 7.5 in (90.7 × 90.7 × 190 mm) |

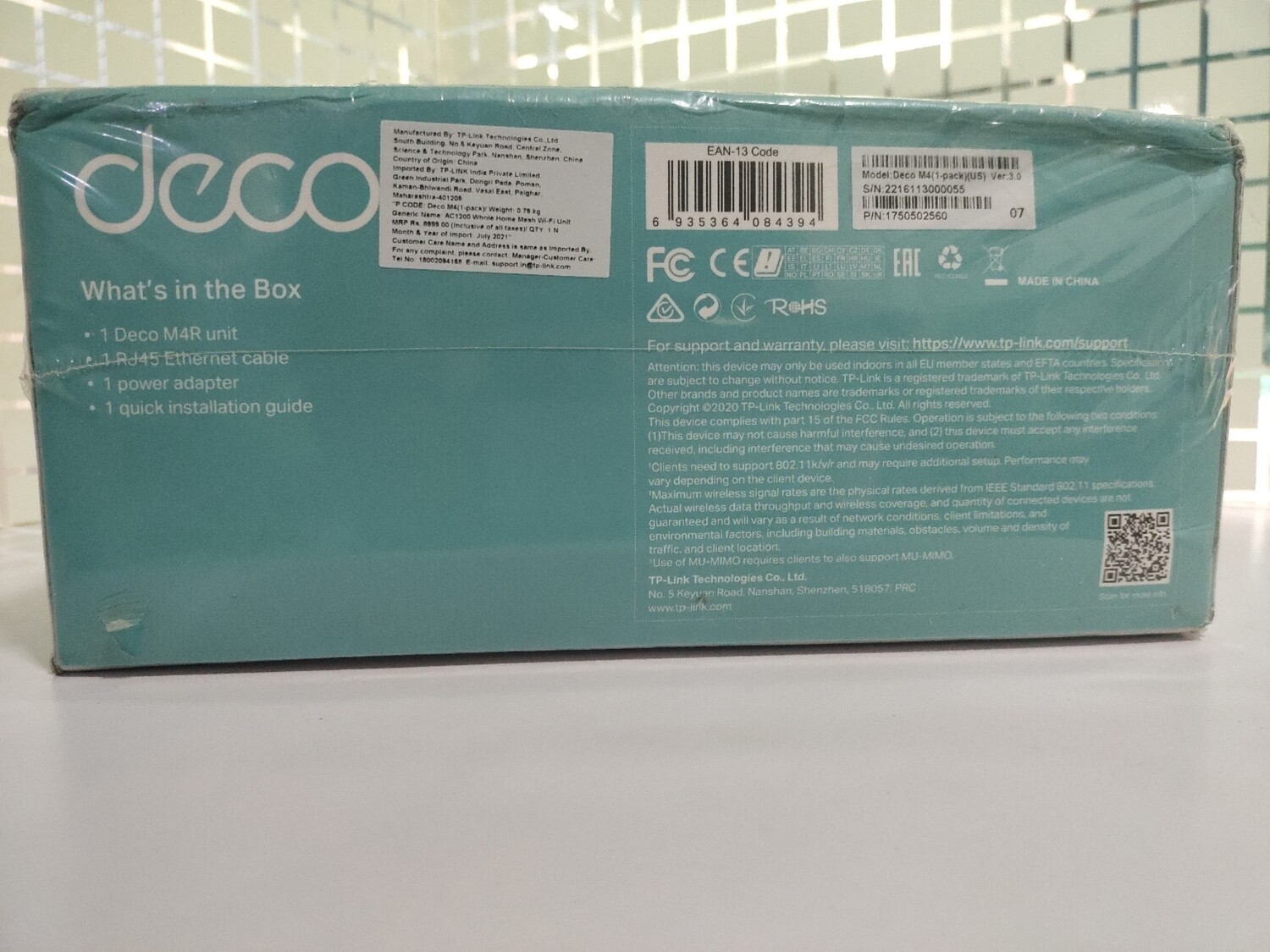

| Package Contents | Deco M4 (3-pack) 3 Deco M4R Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco M4 (2-pack) 2 Deco M4R Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco M4 (1-pack) 1 Deco M4R Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
| OTHERS | |
|---|---|
| System Requirements | Android 4.4 or later iOS 9.0 or later |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
