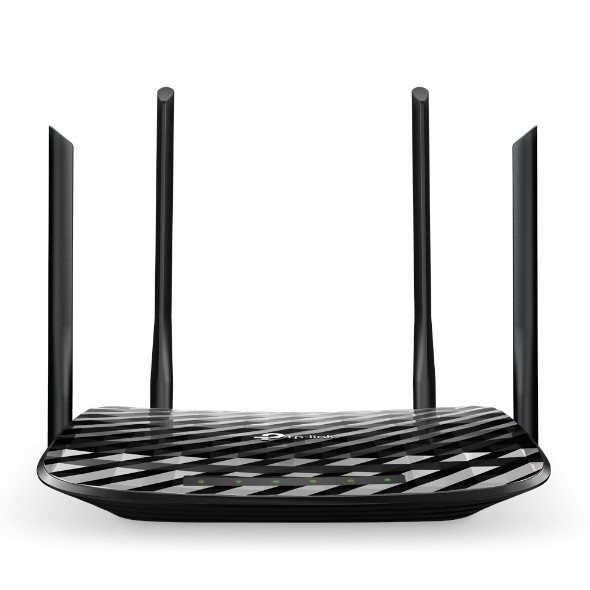

TP-Link Archer C6 Wireless Gigabit Router, AC1200
Archer C6, AC1200 Wireless MU-MIMO Gigabit Router
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
- Supports Access Point mode to create a new Wi-Fi access point
Smooth Entertainment with AC1200 Dual Band Wi-Fi
The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers
speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to
867Mbps, ideal for HD video streaming and lag-free online gaming.
5 High-Performance Antennas Wi-Fi Coverage throughout Your Home
Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.
It’s An Access Point, Too
Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices
MU-MIMO Matters Increase Speed, Throughput, Capacity
MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than standard Ethernet
connections. Connect your favorite wired devices to the Archer C6 and get impressed!
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.
WIRELESS | |
---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | Medium
Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | Qualcomm CPU |
Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
Power | 12 V ⎓ 1 A |
SECURITY | |
---|---|
WiFi Encryption | EU Version: WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) US, TW Version: WPA WPA2 WPA3 |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Virtual Servers Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
Package Contents | Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm; |
