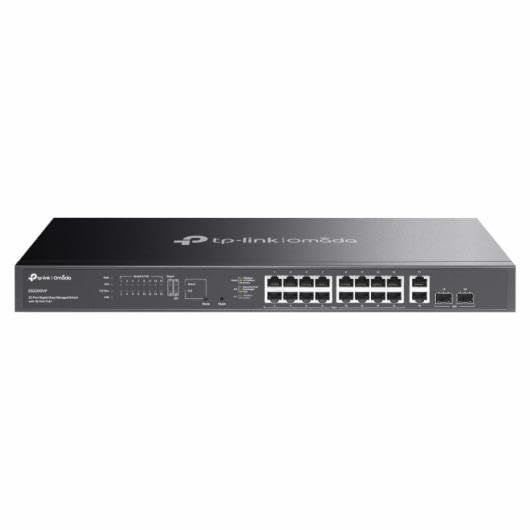

Brand: TP-Link
Model Number: ES220GMP
Product Type: Easy Managed Gigabit Ethernet Switch
Series: TP-Link Omada
Total Ports: 20 Gigabit Ports
Gigabit PoE+ RJ45 Ports: 16 Ports
Gigabit RJ45 Ports: 2 Ports
Gigabit SFP Slots: 2 Slots
Ethernet Port Speed: 10/100/1000 Mbps
PoE Standard: IEEE 802.3af / IEEE 802.3at
Maximum PoE Power per Port: 30 W
Total PoE Power Budget: 250 W
Switching Capacity: 40 Gbps
Packet Forwarding Rate: 29.76 Mpps
MAC Address Table: 8K Entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
Network Management: Web-Based Management and Omada Centralized Cloud Management
VLAN Support: Yes
IGMP Snooping: Yes
Quality of Service (QoS): Yes
Loop Prevention: Yes
Port Isolation: Yes
PoE Auto Recovery: Yes
Fast PoE: Yes
Perpetual PoE: Yes
Extended PoE Transmission: Up to 250 m (supported mode and conditions apply)
Auto-Negotiation: Yes
Auto MDI/MDIX: Yes
Power Supply: 100–240 V AC, 50/60 Hz
Maximum Power Consumption: 289.7 W (with 250 W PoE load, as specified)
Cooling: 2 Fans
Installation Type: Rack-Mountable
Dimensions (W × D × H): 440 × 180 × 44 mm
Weight: Approximately 2.4 kg
