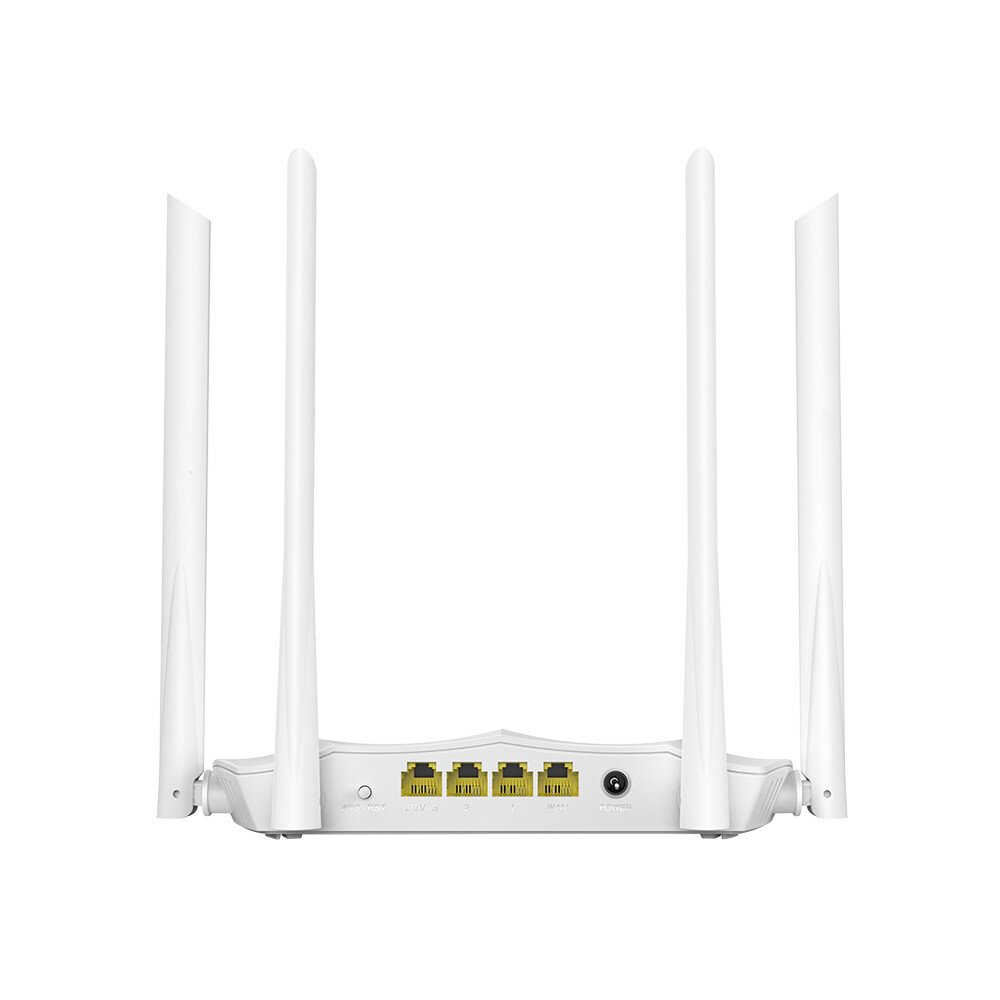

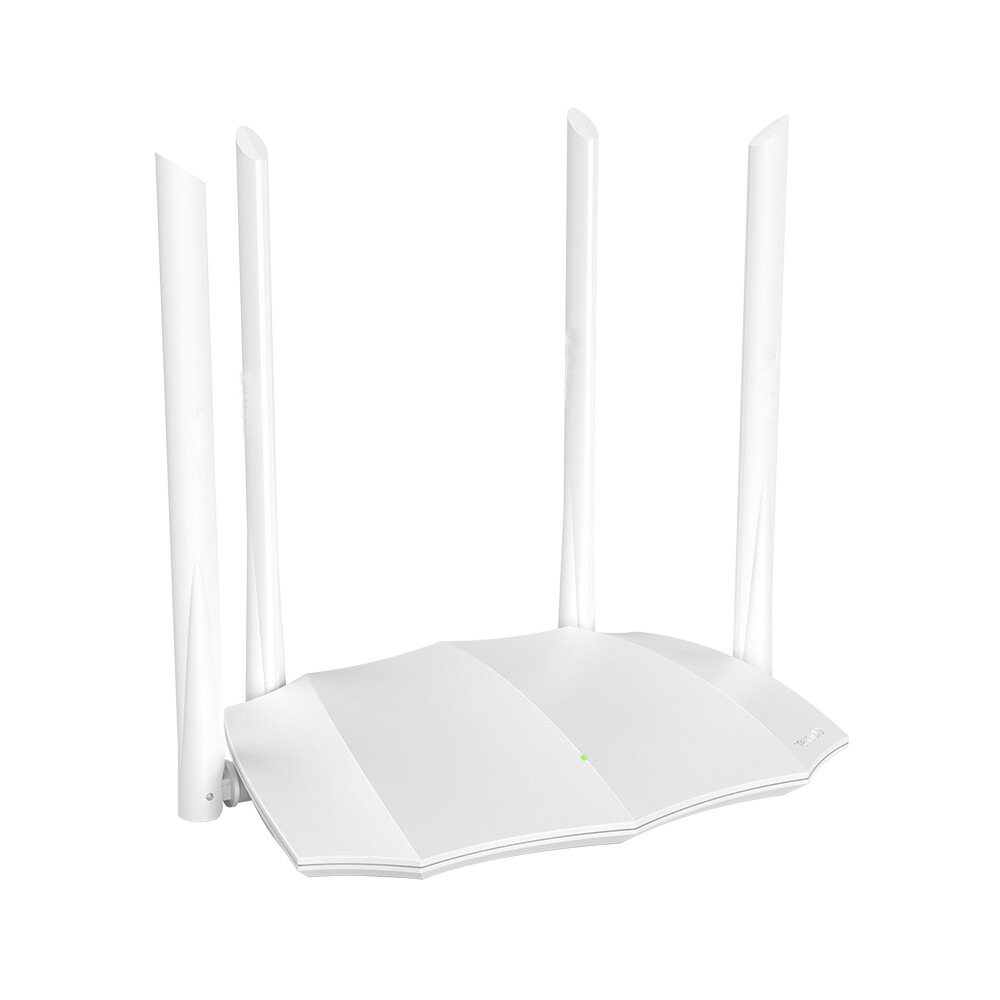

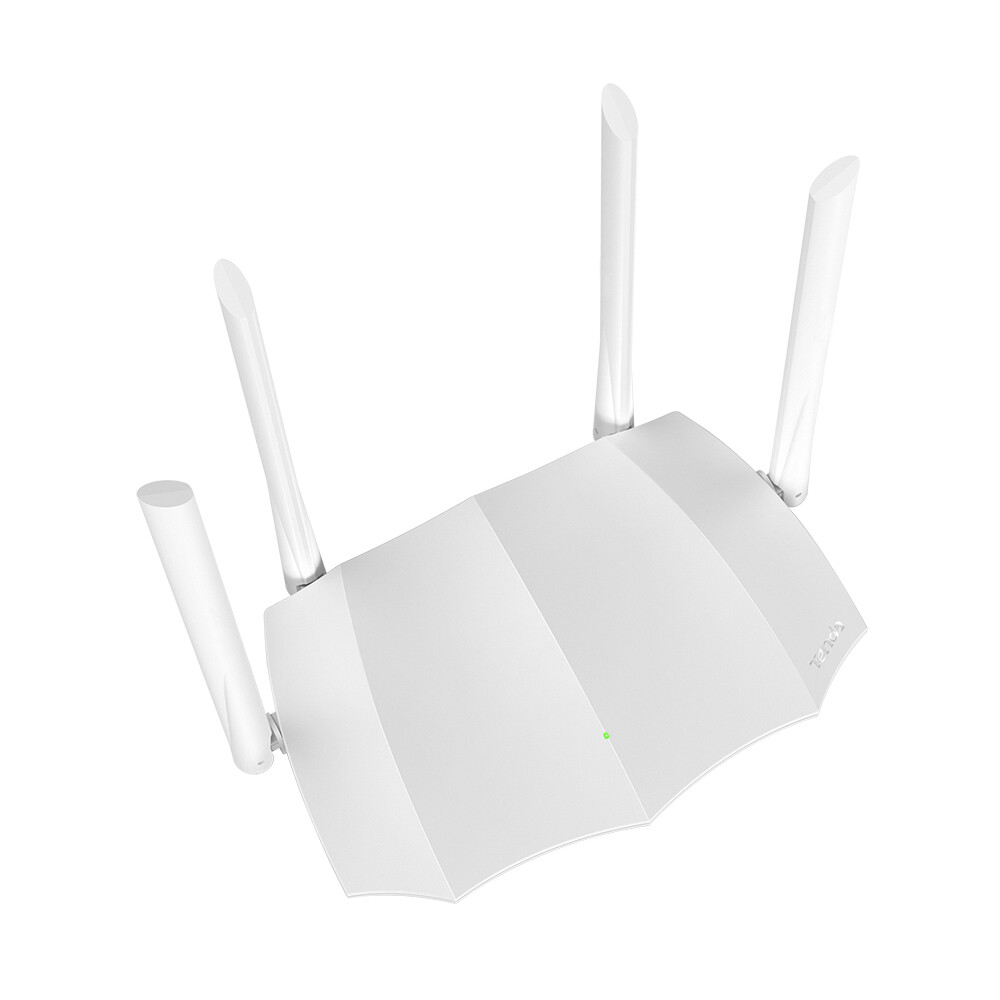

Tenda AC5 AC1200 Dual Band WiFi Router

Standard&Protocol

IEEE802.3, IEEE802.3u

Interfaces

10/100 Mbps WAN port*1
10/100 Mbps LAN port*3

Antenna

5dBi External antenna*4

Button

WPS/Reset button*1, WiFi on/off button*1

Power

AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A

Dimension

171mm*171mm*210mm(L*W*H)

LED Indicator

SYS*1, WiFi*1, WAN*1, LAN*3

Wireless Standard

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Data Rate

5GHz: 867Mbps
2.4GHz: 300Mbps

Frequency

Concurrent dual band 2.4 GHz & 5 GHz

Transmission Power

CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

Basic Features

SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter (support blacklist and whitelist)
Parental Control
Remote Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS

Support DDNS, No-ip, 3322.org, Oray.com, 88ip

VPN

PPTP
L2TP
PPTP client
L2TP client

Special Features

PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App

Others

Bandwidth Control
Guest Network
IPTV
MAC Address Clone
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade
