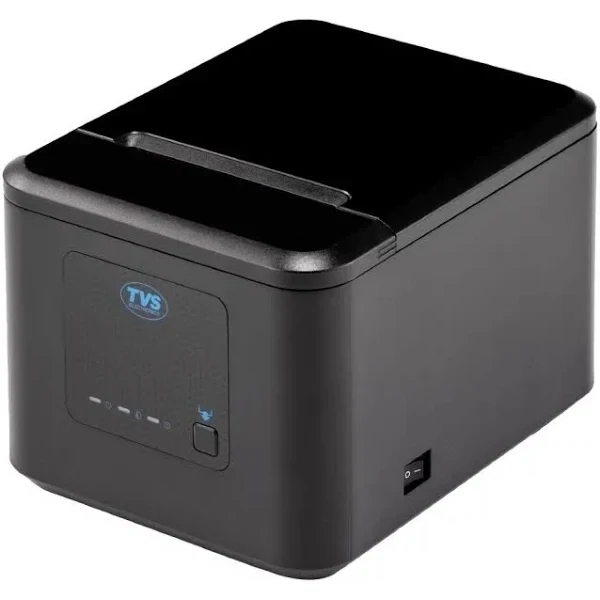

TVS RP-3230 Thermal Receipt Printer
RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cashdrawer port which makes it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues.Equipped with three at a glance LEDs for visualizing printer status.
SPECIFICATIONS
Print Model
RP 3230
Printing Method
Direct thermal printing
Resolution
203 DPI (8dots/mm)
Print Width
72mm / 48mm
Print Speed
Max. 230mm/s
Emulation
ESC/POS
Page Mode
Support
Page Type
Thermal continuous paper
Paper width
79.5±0.5mm/57.5±0.5mm
Paper Container
Max. 83mm
Paper Feed
Upward feed direction
Standard
USB Type-B, Ethernet, Serial, Cash drawer
Optional
USB+WiFi+BT
1D barcode
UPC-A, UPC-E, Code 39, Code 93, Code] 28, EAN8, EANI3, Interleaved2 of 5,Codabar
2D barcode
QR Code,PDF417
Chinese Character
Simplified/Traditional: (24 x 24 dots)
English Character
ASCII: Font A 12×24, Font B 9×17
Code Page
47
Graphics
Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)
Buzzer
Internal buzzer kitchen bell(optional)
Sensor (Standard)
Paper end, cover opening, cutter jam, TPH over-temperature
Sensor (Optional)
Black mark sensor
RAM
4 MB
Flash
4 MB
Input Power
ACI00V-240V, 50/60Hz
Output Power
DC 24V 2A
Driver
Windows 7/8/10, Windows Server 2008/2012/2016 Linux, Javapos,OPOS,MacOS
Utility Tool
Windows 7/8/10, Windows Server 2008/2012/2016
TPH Life
100 km
Cutter Life
1,500,000 times
Operating
0-45°C / 5-95%RH No condensation
Storage
20-70°C / I5-95%RH No condensation
Certification
BIS
