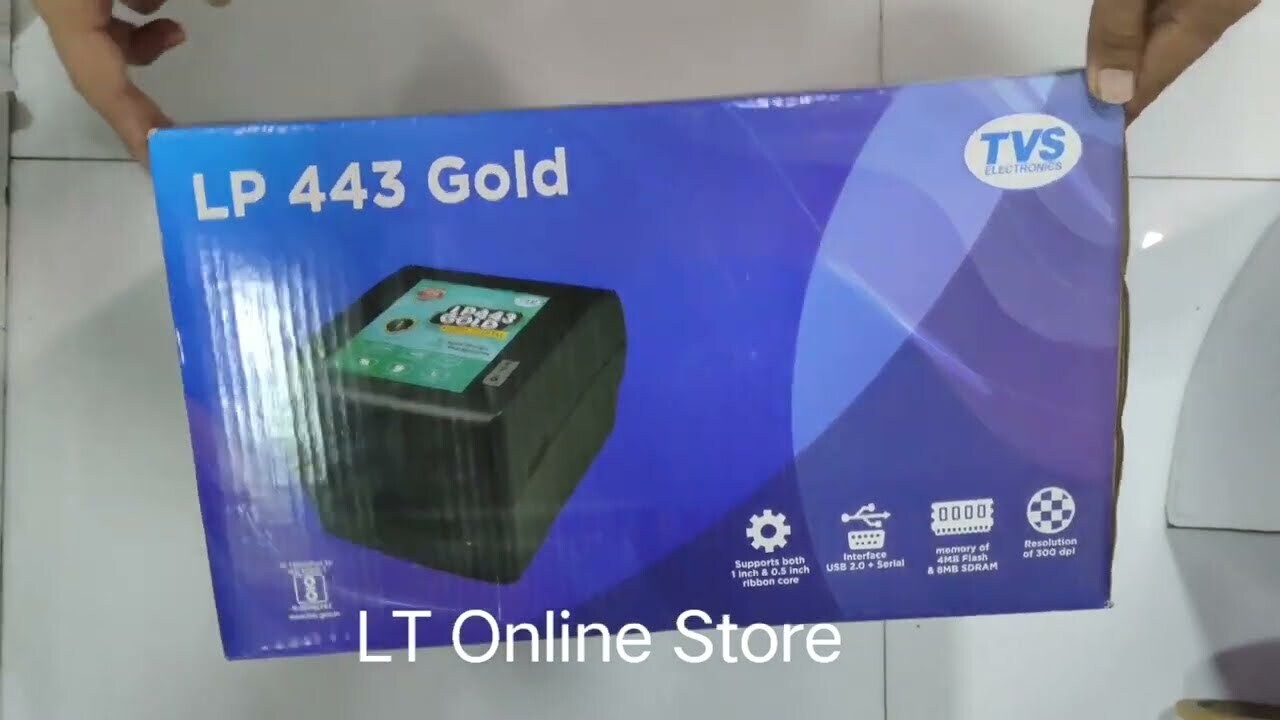

TVS LP 443 Gold Label Printer
LP 443 Gold
LP 443 Gold Label Printers combine performance with reliability and offers High-Resolution labels. These are appropriate for Manufacturing and Warehousing, Healthcare, Small offices, and Logistics.
ADVANTAGES
Crisp and sharp print with high resolution of 300 dpi
Print speed of 4 inches per second
Interface options of USB ad Serial
Movable black mark sensor for label printing
Supports both 0.5 inch and 1 inch ribbon core
FEATURES
Crisp and sharp print
Print Speed of 4 ips
1 inch & 0.5 inch ribbon core
Memory of 4mb Flash & 3mb SDRAM
Movable Black Mark Sensor
Interface USB & Serial

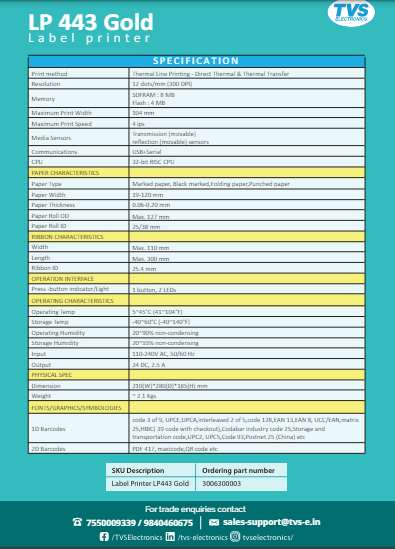

SPECIFICATIONS
Print method
Thermal Line Printing – Direct
Thermal & Thermal Transfer
Resolution
12 dots/mm (300 DPI)
Memory
SDFRAM : 8 MB
Flash : 4 MB
Maximum Print Width
104 mm
Maximum Print Speed
4 ips
Media Sensors
Transmission (movable)
reflection (movable) sensors
Communications
USB+Serial
CPU
32-bit RISC CPU
Paper Type
Marked paper, Black marked,Folding paper,Punched paper
Paper Width
19-120 mm
Paper Thickness
0.06-0.20 mm
Paper Roll OD
Max. 127 mm
Paper Roll ID
25/38 mm
Width
Max. 110 mm
Length
Max. 300 mm
Ribbon ID
25.4 mm
Press -button indicator/Light
1 button, 2 LEDs
Operating Temp
5~45°C (41~104°F)
Storage Temp
-40~60°C (-40~140°F)
Operating Humidity
20~90% non-condensing
Storage Humidity
20~93% non-condensing
Input
110-240V AC, 50/60 Hz
Output
24 DC, 2.5 A
Dimension
210(W)*280(D)*185(H) mm
Weight
~ 2.1 Kgs
1D Barcodes
code 3 of 9, UPCE,UPCA,interleaved 2 of 5,code 128,EAN 13,EAN 8, UCC/EAN,matrix 25,HBIC( 39 code with chekcout),Codabar industry code 25,Storage and transportation code,UPC2, UPC5,Code 93,Postnet 25 (China) etc
2D Barcodes
PDF 417, maxicode,QR code etc
