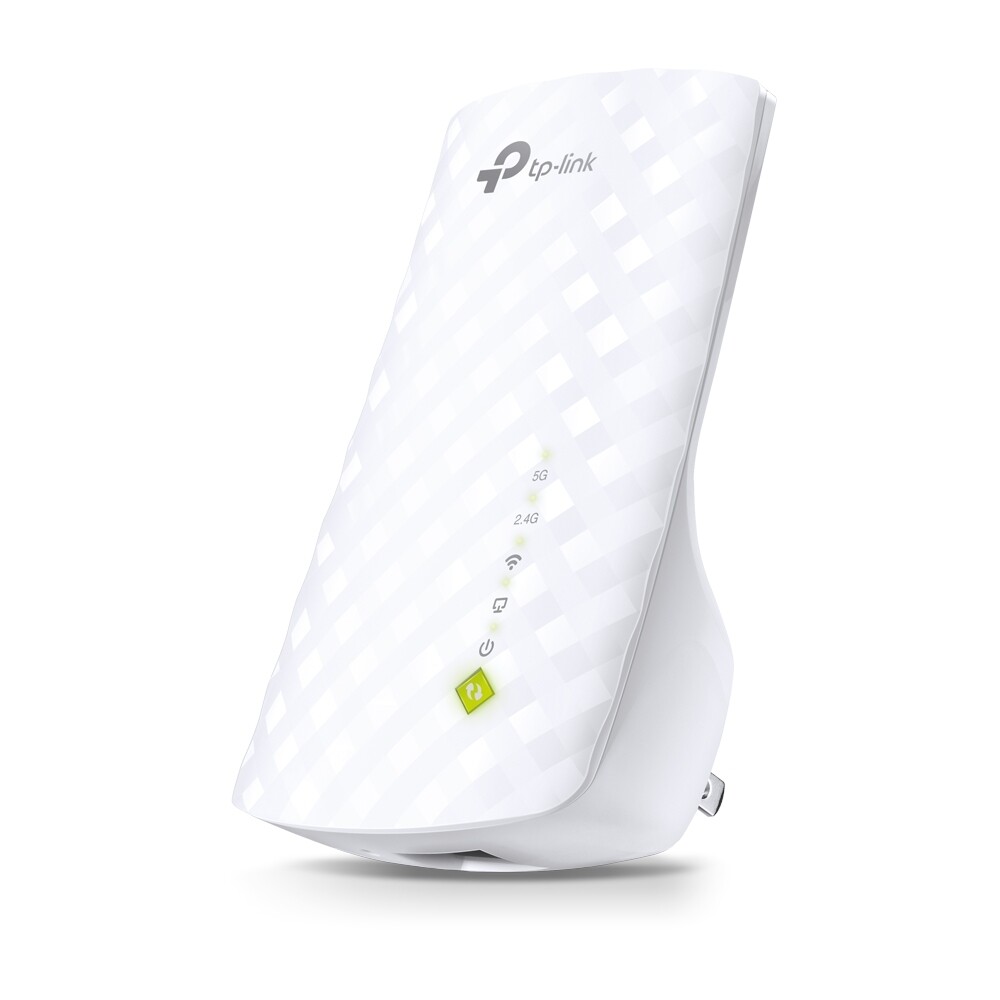

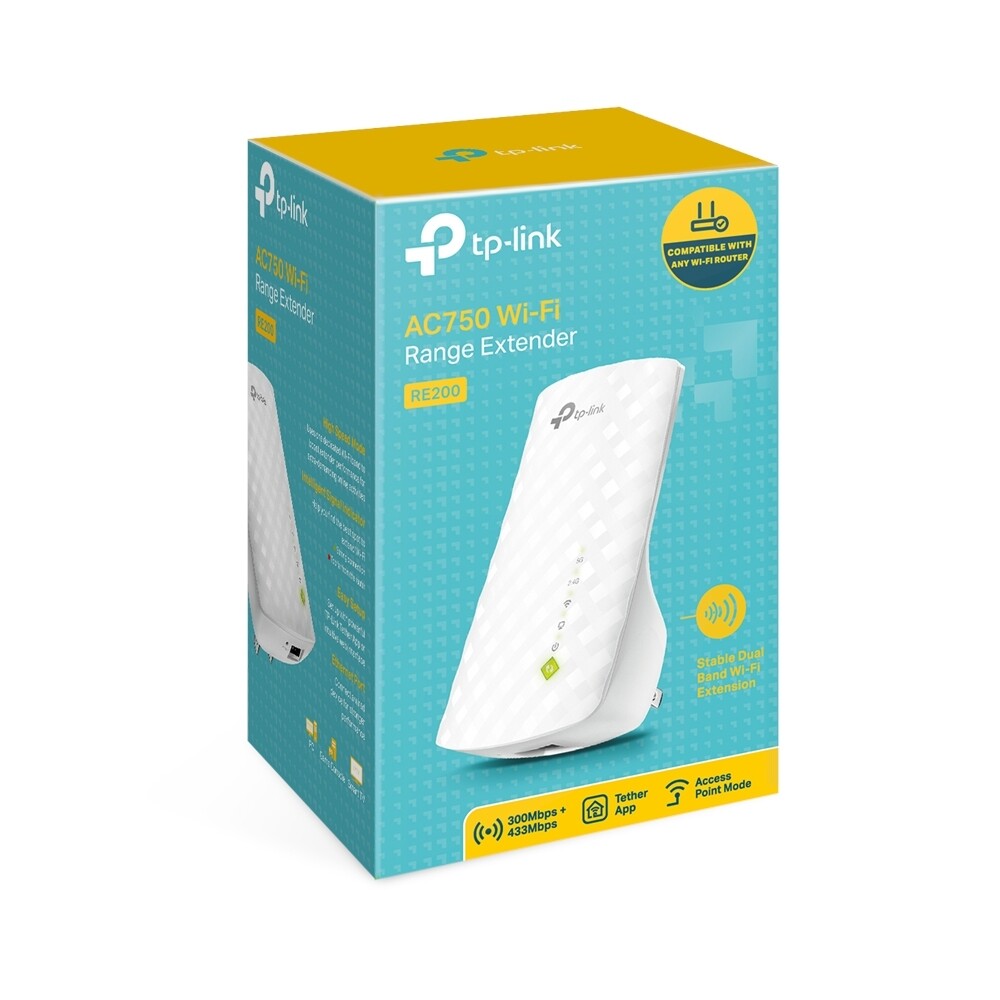

AC750 Wi-Fi Range Extender RE200

• Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
• Dual band speeds up to 750Mbps
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

• Boost Your Router Coverage to Expanded Dual Band WiFi

  RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.
  • 5GHz WiFi
  • 2.4GHz WiFi
  • Existing Router Coverage
  • Expanded Extender Coverage

  • Next Generation 11AC WiFi

    Create faster access for 802.11 b/g/n and 802.11ac WiFi devices. RE200 delivers fast speeds of dual band WiFi up to 750Mbps and provides reliable connections for laptops, smartphones, tablets and other wireless-enabled devices.*Actual WiFi speeds may vary due to different user
    environments.

  • Enjoy Super Speeds in High Speed Mode

    With High-Speed technology, RE200 makes the best use of both WiFi bands to establish super speedy connections — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.* In high speed mode, RE200 offers maximum performance but
    limits connection to one band (2.4GHz or 5GHz).

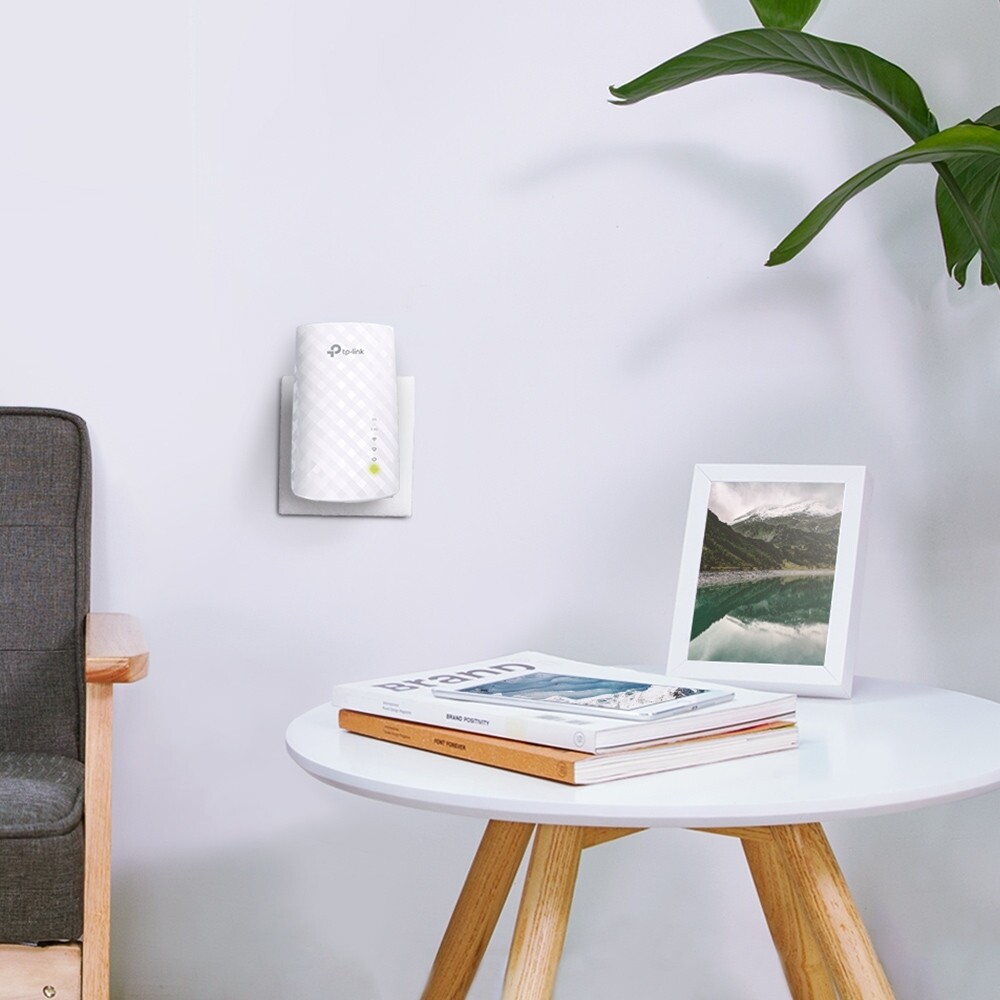

  • Easy Setup and Flexible Placement

    Press the WPS button on your router and the Range Extender button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the RE200 back in a location for the best signal quality and coverage in your house, without needing to configure the extender again.

  • Smart Signal Indicator

    Smart signal lights show the strength of signal that RE200 receives from the existing router, which can help to find the best location for optimal WiFi coverage.

  • Entertainment Adapter

    The RE200's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

  • HARDWARE FEATURES
    Plug Type	EU, UK, US, AU
    Standards and Protocols	IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Interface	1 * 10/100M Ethernet Port (RJ45)
    Button	RE (Range Extender) Button, Reset Button
    Power Consumption	About 6.5W
    Antenna	3 * internal
    Dimensions ( W x D x H )	4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

    WIRELESS FEATURES
    Frequency	2.4GHz & 5GHz
    Signal Rate	5GHz:Up to 433Mbps 2.4GHz:Up to 300Mpbs
    Reception Sensitivity	2.4G: 270M: -70dBm@10% PER 130M: -70dBm@10% PER 108M: -73dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -94dBm@8% PER 5G: 390M: -60dBm@10% PER 29.3M: -83dBm@10% PER 180M: -64dBm@10% PER 13.5M: -87dBm@10% PER 78M: -68dBm@10% PER 6.5M: -90dBm@10% PER 54M: -75dBm@10% PER 6M：-90dBm@10% PER
    Transmit Power	< 20 dBm (EIRP)
    Wireless Modes	Range Extender
    Wireless Functions	WMM (Wi-Fi Multimedia) Wireless Statistic Domain Login Function
    Wireless Security	64/128/152-bit WEP WPA-PSK / WPA2-PSK

    OTHERS
    Certification	CE, FCC, RoHS
    Package Contents	AC750 Wi-Fi Range Extender RE200 RJ-45 Ethernet Cable Resource CD Quick Installation Guide
    System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
    Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

    Easy Wi-Fi Extension Flexible Placement

    AC750 Wi-Fi Range Extender
    RE200

    Boost Your Wi-Fi Network to Cover hard-to-reach Areas

    Place the RE200 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands Wi-Fi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

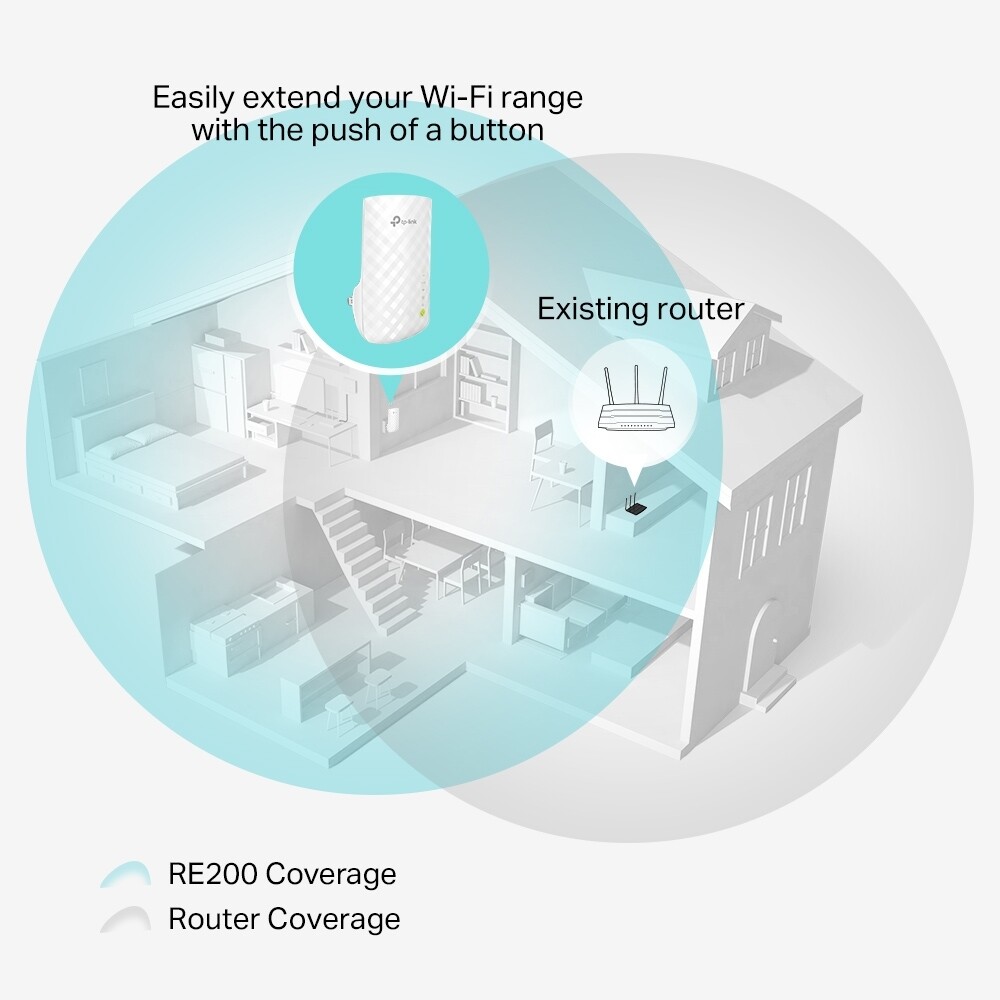

    • RE200 Coverage
    • Router Coverage

    • Easily extend your Wi-Fi range with
      the push of a button
    • Existing router

    AC750 Wi-Fi for Compatible Connections

    The RE200’s Wireless AC technology create stronger Wi-Fi
    connections across your home. Work with any standard
    router or access point, making it convenient to provide wide, non-droppingDual Band Wi-Fi to multiple devices.

    Backwards compatible
    802.11 a/b/g/n

    One Key Connection

    Press the WPS button on your router and RE button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE200 at any location for the best signal strength.

    Smart Signal Indicator

    Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE200.

    • Good connection
    • Too far away from the router
    • No connection

    Entertainment Adapter

    With an Ethernet port, RE200 can function as a wireless adapter to connect wired devices like desktop, gaming consoles, Blu-ray® players, and Internet TVs. At the same time, the device can share the wireless network as well.

    RE200

    • Phone
    • Pad
    • Laptop

    • Game Console
    • Desktop
    • TV
