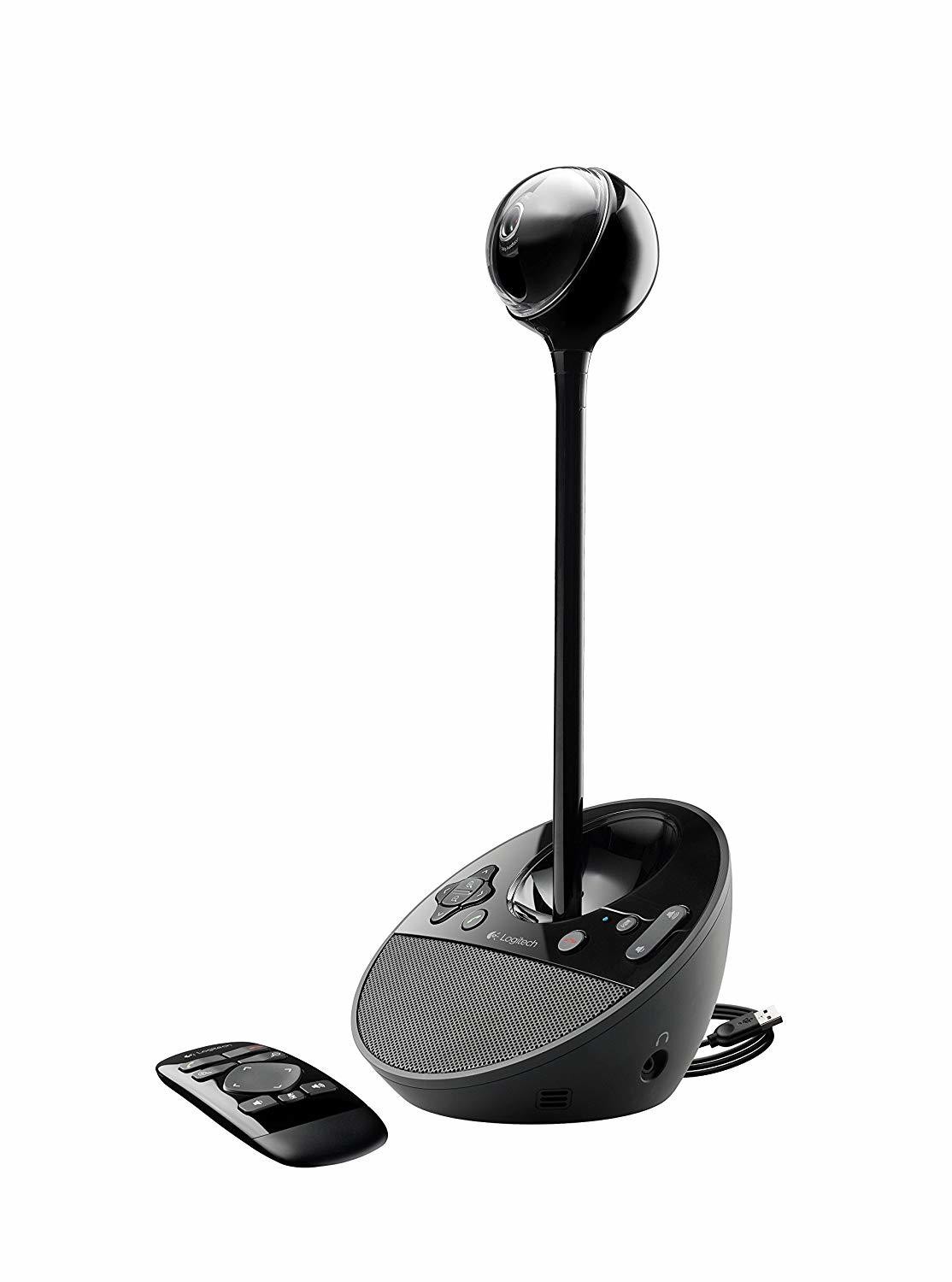

Logitech BCC950 HD Conference Webcam

System Requirements

• • UVC mode (No software installation required):

  • Windows® 7, 8.1, or 10
    Mac OS® X 10.7 or higher

• Dimensions

  • Height x Width x Depth: 154 mm X 150 mm X 104 mm
    Height with extender: 345 mm
    Weight: 568 g

• Warranty Information

  2-Year Limited Hardware Warranty

• Package Contents

  • ConferenceCam base and attached USB cable
    Extender
    Webcam head
    Power cable
    Quick start guide

• Technical Specifications

  • Download the BCC950 Data Sheet
  • Camera:
    • Motorized pan, tilt and zoom
    • Integrated full duplex omni-directional speakerphone with 8-foot range
    • On-board UVC H.264 encoding
    • USB video class (UVC) supported applications
    • Full HD 1080p 30fps video calling
    • Camera and speakerphone controls, speakerphone and remote control
    • Pan, tilt and zoom, Volume, Audio mute, Answer/Hang up
    • Autofocus
    • ZEISS® lens certification
    • 78-degree field of view
    • 180-degree pan, 55-degree tilt
  • Speaker:
    • Bandwidth: 220 Hz - 20 kHz
    • Max Output Level: 80 dB SPL @ 1 foot (0.30 meter)
  • Microphone:
    • Bandwidth: 200 Hz - 8 kHz
  • General:
    • 3.5mm analog headset jack
    • 10-foot (3 m) range remote control
    • USB 2.0 compliant
    • 8-foot (2.4 m) USB cable
    • 8-foot (2.4 m) universal power adapter
    • 9-inch (228 mm) extender stem for elevation / eye-level camera angle
    • Windows® 7, 8.1, or 10 and Mac® OS X 10.7 or higher



• Part Number

  • PN 960-000939

  Product Description




  ---

  Logitech BCC950 ConferenceCam Information

  Technical Details

  Brand	Logitech
  Colour	black
  Item Height	15.4 Centimeters
  Item Width	15 Centimeters
  Item Weight	231 g
  Product Dimensions	10.4 x 15 x 15.4 cm
  Batteries:	2 AAA batteries required.
  Item model number	960-000867
  Processor Count	1
  Computer Memory Type	DDR3 SDRAM
  Connectivity Type	2.4_ghz_radio_frequency
  Voltage	1.5 Volts
  Average Battery Life (in hours)	2 Years
  Lithium Battery Energy Content	4.90 Watt Hours
  Lithium battery Weight	3 Grams
  Included Components	Keyboard, Nano-receiver, 2 AAA batteries, User documentation
