Description

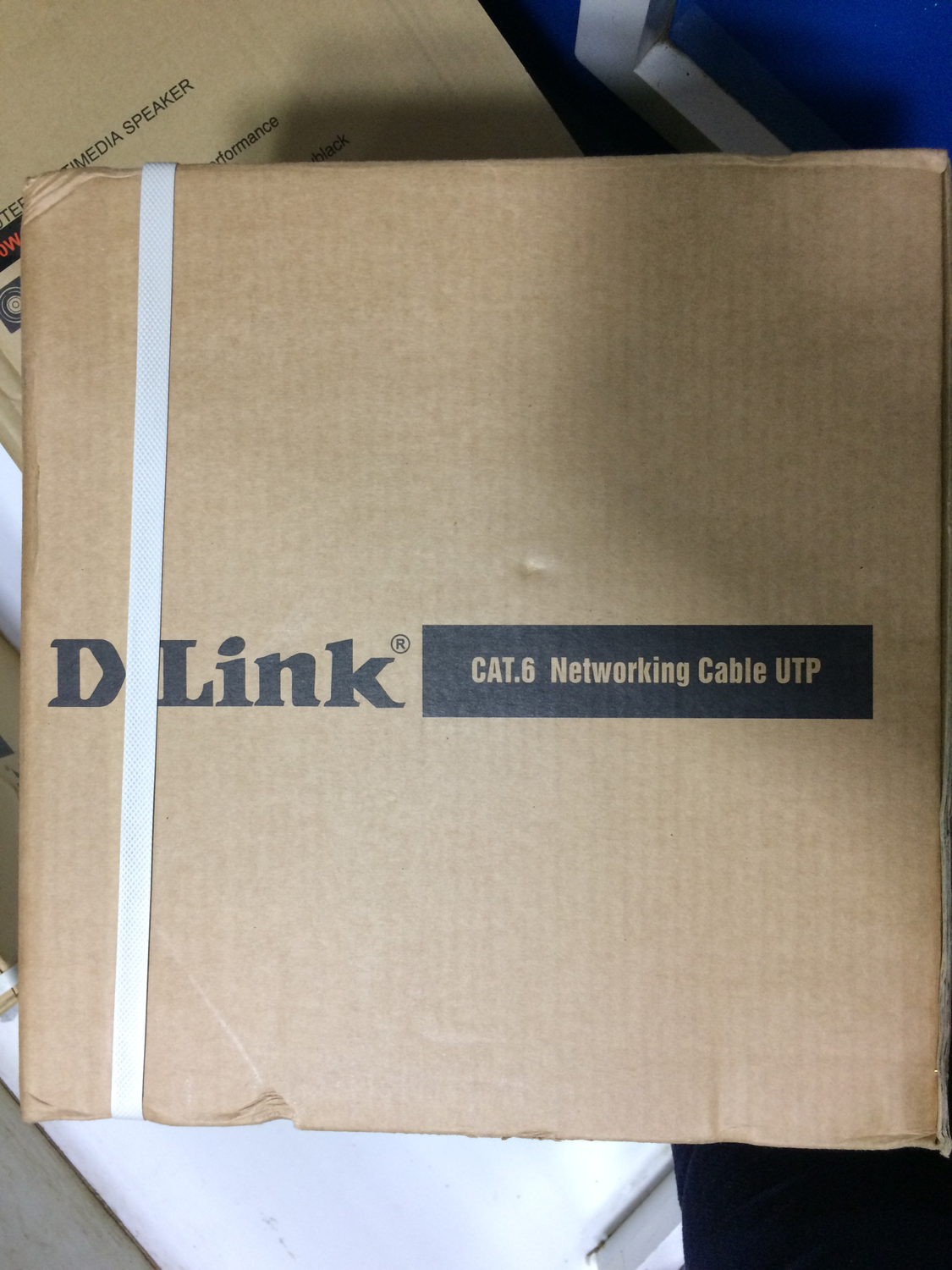

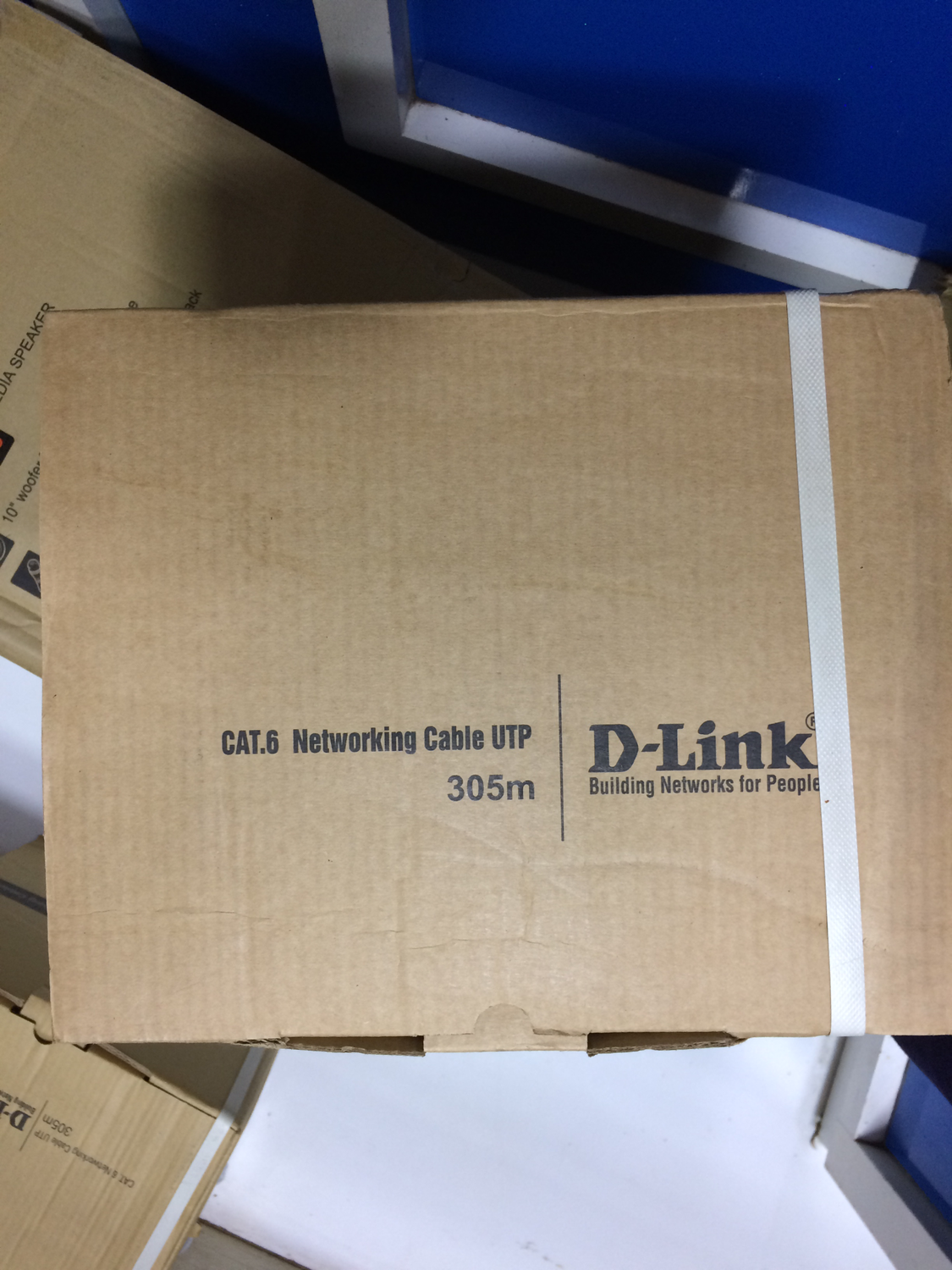

Cat6 UTP 23AWG Solid,305M/Roll, Gray

Type

UTP

Category

Cat6

AWG

23

LSZH

NO

Color

Grey

Length

305m

Cable

"Category 6 UTP Solid cable Color: Cool Gray 10C
Length type: 305M + 2M
Heat-resistant: 75o
C minimum (Temperature limited)
Flame property: The purpose of the vertical flame test is to screen out flammable wires.
That follow to VW-1 (UL); FT-1 (CSA), either.
Conductor: 23 AWG(0.574 ±0.007mm), Multi-cores (Solid)
Conductor Metal: Bare Copper
Insulation Material: HD-PE
OD: 1.00 ±0.05mm
Average Thickness: 0.22 mm
Jacket hardness: 45P (90A ± 2A, Shore)
Material: PVC UL94V-0
OD: 6mm ±0.2
Average Thickness: 0.60 mm "

Technical Details

"Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 100Ω±15%,1-600MHz
Nominal Velocity of Propagation: 69%
Operating Temperature: -20℃-60℃(-4℉-140℉)
Storage Temperature: -20℃-80℃(-4℉-176℉) "

Certifications

"UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)
D-Link Product Hazardous Substance Management. "

Application

"10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)
