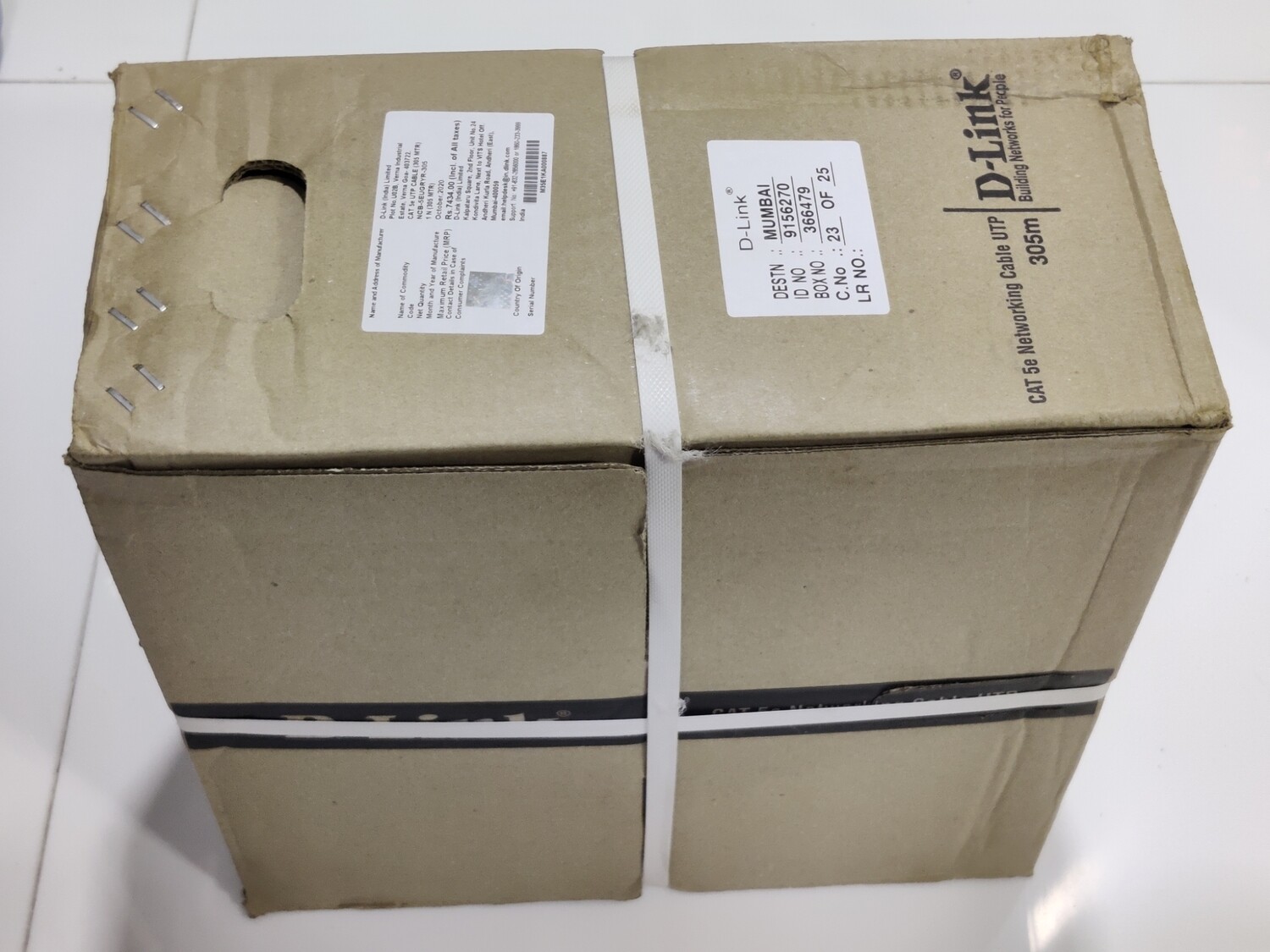

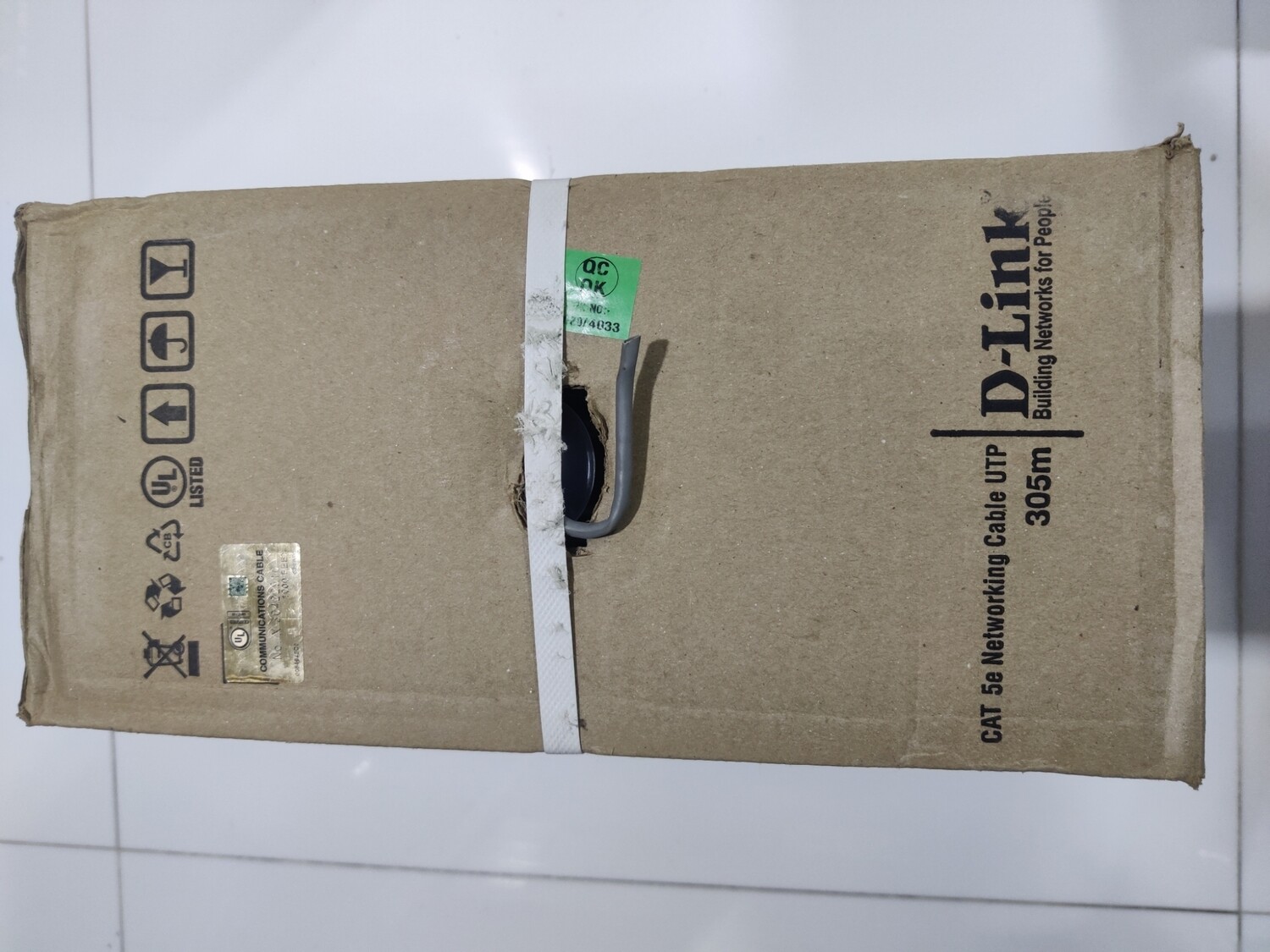

D-Link 305mtr Cat-5 Lan Cable, NCB-5EUGRYR, Gray

5EUGRYR_HSN:85444999
₹7,190
In stock
1
ProductDetails.QuantityLimit.minmax
Product Details
Brand: D-Link
Product: New
Generic Name: Lan Cable
Model no.: NCB-5EUGRYR
Warranty: D link india

NCB-5EUGRYR-305

Description
Cat5E UTP 24 AWG Solid, 305M/Roll , Gray
Type UTP
Category Cat5E
AWG 24 LSZH NO
Color gray
Length 305m Cable
"Category 5e UTP Solid cable
Conductor: 24 AWG(0.505 ±0.007mm), Multi-cores (Solid)
Conductor Metal: Bare Copper
Insulation Material: HD-PE
OD: 0.86 ±0.05mm
Average Thickness: 0.19 mm
Jacket hardness: 45P (90A ± 2A, Shore)
Material: PVC UL94V-0
OD: 5mm ±0.2
Average Thickness: 0.50 mm
Color: BLUE 288C
Length type: 305 M

Heat-resistant: 75o
C minimum (Temperature limited)
Flame property: The purpose of the vertical flame test is to screen out flammable wires.
That follow to VW-1 (UL); FT-1 (CSA), either. "
Technical Details
"Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 100Ω±15%,1-400MHz
Nominal Velocity of Propagation: 69%
Operating Temperature: -20℃-60℃(-4℉-140℉)
Storage Temperature: -20℃-80℃(-4℉-176℉) "
Certifications
"UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)
D-Link Product Hazardous Substance Management.
"
Application
"10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

"
